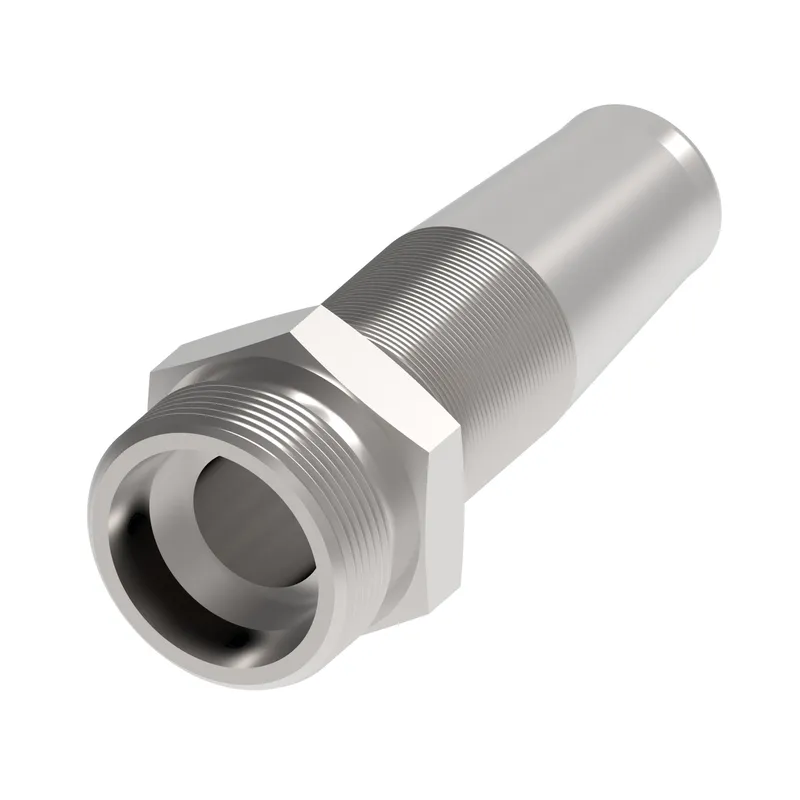

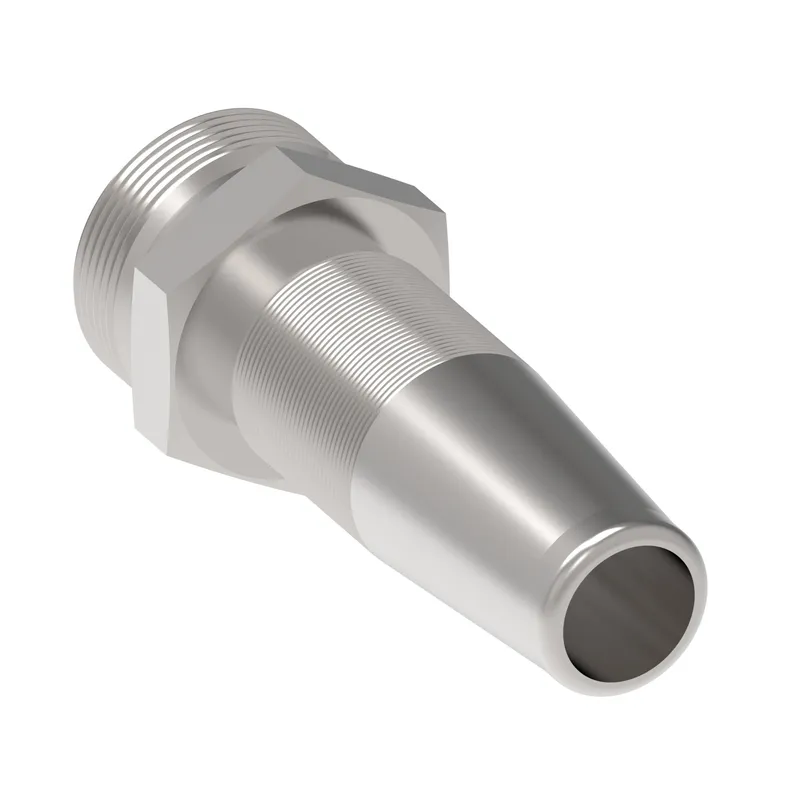

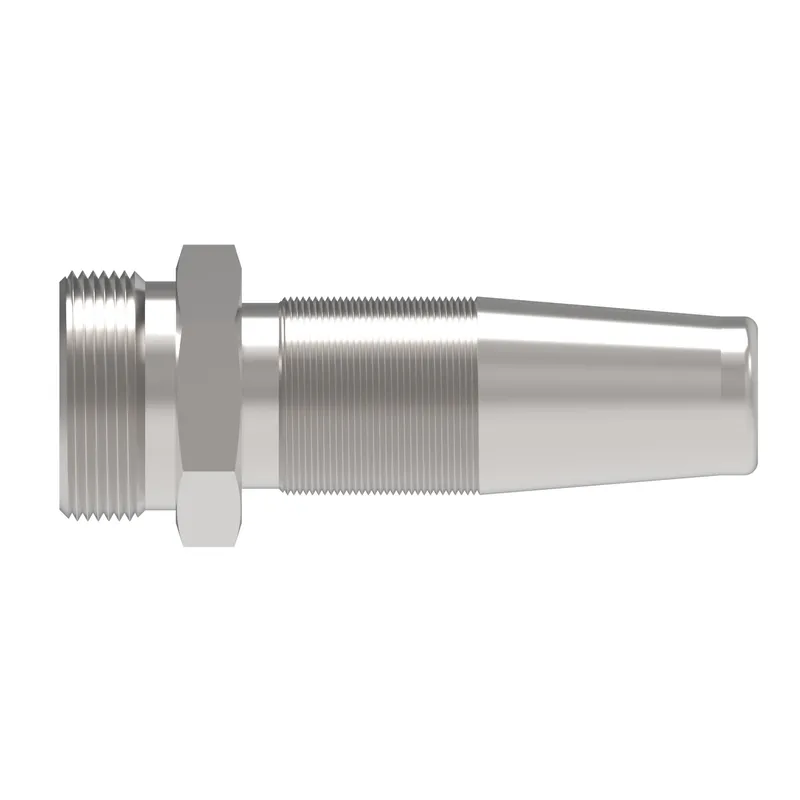

HOSE NIPPLE ASSY,SR/04,STPIPE/10,CS,STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 11.005-10-4 be shipped?
11.005-10-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 11.005-10-4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 11.005-10-4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 11.005-10-4, subject to availability and destination.
Danfoss HOSE NIPPLE ASSY,SR/04,STPIPE/10,CS,STR, manufacturer part number 11.005-10-4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 2.440 |
| A dimension MM | 62.000 |
| Angle shape | Straight |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 0.250 |
| Compatible hose ID MM | 6.400 |
| Construction Style | Reusable |
| End size 1 | -10 |
| End type 1 | Standpipe Metric |
| Finish plating | Dura-Kote |
| Hex size 1 IN | 0.750 |
| Hex size 1 MM | 19.050 |
| Hose cut off factor IN | 1.680 |
| Hose cut off factor MM | 42.900 |
| Hose size | -4 |
| Inside diameter IN | 0.230 |
| Inside diameter MM | 5.920 |
| Product height in | 0.750 |
| Product height mm | 19.050 |
| Product length in | 2.440 |
| Product length mm | 61.976 |
| Product material | Carbon steel |
| Product width in | 0.750 |
| Product width mm | 19.050 mm |
| Series | Socketless |
| Thread sealant | No |
| Working pressure max BAR | 400 |
| Working pressure max PSI | 5800 |
