Modules Parts
Compare Modules
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | consumed current maximum | Net Weight | color of the light source | light intensity | height |
|---|---|---|---|---|---|
| 3SU1401-2BG30-1AA0 | 30 mA | 10 g | yellow | 900 ... 1 400 mcd | 33.2 mm |
| 3SU1401-2BF40-3AA0-Z Y19 | 20 mA | 10 g | green | 900 ... 1 400 mcd | 36 mm |
| 3SU1401-2BF40-3AA0-Z X90 | 20 mA | 10 g | green | 900 ... 1 400 mcd | 36 mm |
| 3SU1401-2BF40-3AA0 | 20 mA | 10 g | green | 900 ... 1 400 mcd | 36 mm |
| 3SU1401-2BF40-1AA0-Z Y19 | 20 mA | 10 g | green | 900 ... 1 400 mcd | 33.2 mm |
| 3SU1401-2BF40-1AA0-Z X90 | 20 mA | 10 g | green | 900 ... 1 400 mcd | 33.2 mm |
| 3SU1401-2BF40-1AA0 | 20 mA | 10 g | green | 900 ... 1 400 mcd | 33.2 mm |
| 3SU1401-2BF30-3AA0-Z Y19 | 20 mA | 18 g | yellow | 900 ... 1 400 mcd | 36 mm |
| 3SU1400-1AA10-1FA0-Z Y19 | — | 17.5 g | — | — | 34 mm |
| 3SU1400-1AA10-1FA0-Z X90 | — | 17.5 g | — | — | 34 mm |
| 3SU1400-1AA10-1DA0-Z X90 | — | 17 g | — | — | 34 mm |
| 3SU1401-1BF60-3AA0-Z Y19 | 20 mA | 8 g | white | 900 ... 1 400 mcd | 36 mm |
| 3SU1401-1BF60-3AA0-Z X90 | 20 mA | 8 g | white | 900 ... 1 400 mcd | 36 mm |
| 3SU1401-1BF60-3AA0 | 20 mA | 8 g | white | 900 ... 1 400 mcd | 36 mm |
| 3SU1401-1BF60-1AA0-Z Y19 | 20 mA | 10 g | white | 900 ... 1 400 mcd | 33.2 mm |
| 3SU1401-1BF60-1AA0-Z X90 | 20 mA | 10 g | white | 900 ... 1 400 mcd | 33.2 mm |
| 3SU1401-1BF60-1AA0 | 20 mA | 10 g | white | 900 ... 1 400 mcd | 33.2 mm |

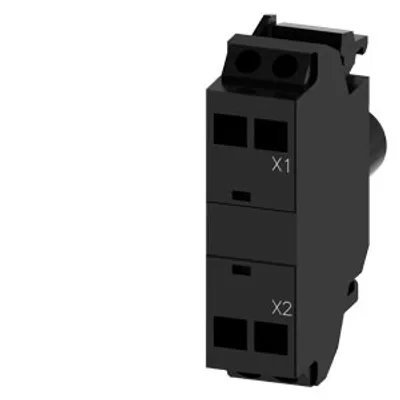

| 3SU1401-1BF50-3AA0-Z Y19 | 20 mA | 9 g | blue | 280 ... 710 mcd | 36 mm |
| 3SU1401-1BB20-3AA0-Z Y19 | 25 mA | 7 g | red | 450 ... 1 120 mcd | 36 mm |

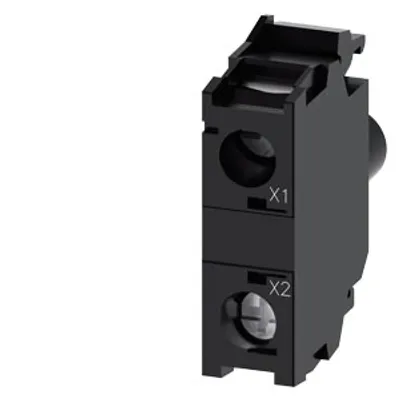

| 3SU1401-1BB00-1AA2 | 20 mA | 9 g | amber | 450 ... 1 120 mcd | 33.2 mm |
| 3SU1401-1BB00-1AA0-Z Y19 | 25 mA | 9 g | amber | 450 ... 1 120 mcd | 33.2 mm |
| 3SU1401-1BB00-1AA0-Z X90 | 25 mA | 9 g | amber | 450 ... 1 120 mcd | 33.2 mm |

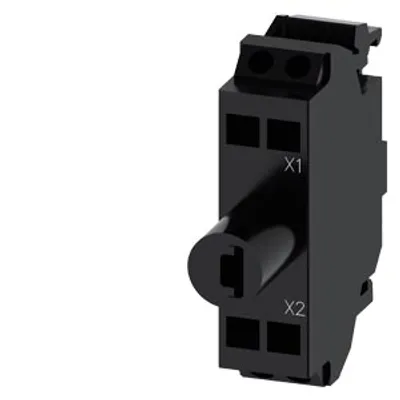

| 3SU1401-2BF30-3AA0-Z X90 | 20 mA | 18 g | yellow | 900 ... 1 400 mcd | 36 mm |
| 3SU1401-2BF30-3AA0 | 20 mA | 18 g | yellow | 900 ... 1 400 mcd | 36 mm |
Common to all listed parts
| product type designation | 3SU1 |
| degree of pollution | 3 |
| shock resistance — according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| shock resistance — for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance — according to IEC 60068-2-6 | 10 ... 500 Hz: 5 g |
| vibration resistance — for railway applications according to EN 61373 | Category 1, Class B |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| ambient temperature — during operation | -25 ... +70 °C |
