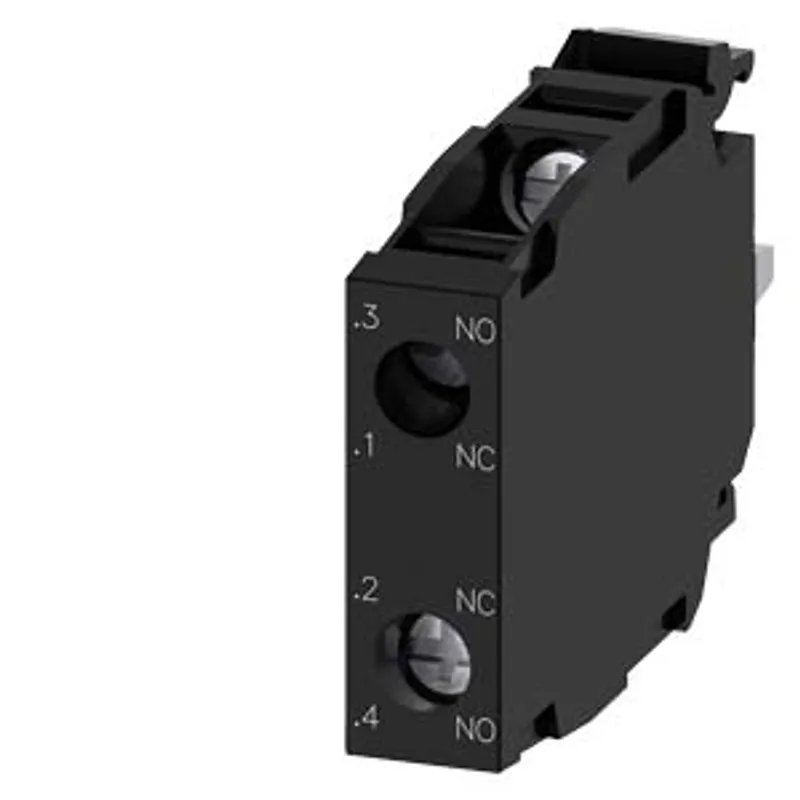

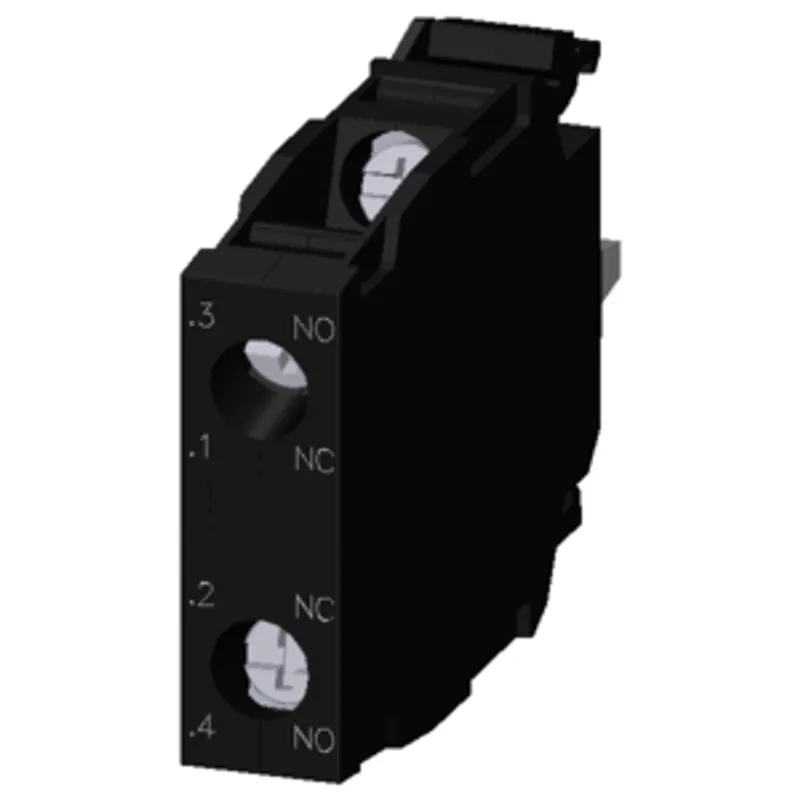

Siemens 3SU1400-1AA10-1FA0-Z X90
Contact module with 2 contact elements, 1 NO+1 NC, screw terminal, for front plate mounting
- MPN
- 3SU1400-1AA10-1FA0-Z X90
- Category
- Modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 3SU1400-1AA10-1FA0-Z X90?
Contact module with 2 contact elements, 1 NO+1 NC, screw terminal, for front plate mounting, Z=150-unit packaging
Specifications
General
| product brand name | SIRIUS ACT |
| product designation | Contact module |
| product type designation | 3SU1 |
Contact block/ lampholder
| socket design | other |
General technical data
| product function positive opening | Yes |
| insulation voltage rated value | 500 V |
| degree of pollution | 3 |
| type of voltage — of the operating voltage | AC/DC |
| type of voltage — of the input voltage | AC/DC |
| surge voltage resistance rated value | 6 kV |
| protection class IP — of the enclosure | IP40 |
| protection class IP — of the terminal | IP20, clamping screw tightened |
| shock resistance — according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| shock resistance — for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance — according to IEC 60068-2-6 | 10 ... 500 Hz: 5 g |
| vibration resistance — for railway applications according to EN 61373 | Category 1, Class B |
| operating frequency maximum | 3 600 1/h |
| mechanical service life (operating cycles) typical | 10 000 000 |
| electrical endurance (operating cycles) typical | 10 000 000 |
| thermal current | 10 A |
| reference code according to IEC 81346-2 | S |
| continuous current of the C characteristic MCB | 10 A |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| Net Weight | 17.5 g |
| operating voltage — at AC — at 50 Hz rated value | 5 ... 500 V |
| operating voltage — at AC — at 60 Hz rated value | 5 ... 500 V |
| operating voltage — at DC rated value | 5 ... 500 V |
Power Electronics
| contact reliability | One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA) |
Auxiliary circuit
| design of the contact of auxiliary contacts | Silver alloy |
| number of NC contacts for auxiliary contacts | 1 |
| number of NC contacts for auxiliary contacts — lagging switching | 0 |
| number of NO contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts — leading contact | 0 |
| operational current at AC-12 — at 24 V rated value | 10 A |
| operational current at AC-12 — at 48 V rated value | 10 A |
| operational current at AC-12 — at 110 V rated value | 10 A |
| operational current at AC-12 — at 230 V rated value | 8 A |
| operational current at AC-12 — at 400 V rated value | 8 A |
| operational current at AC-15 — at 24 V rated value | 6 A |
| operational current at AC-15 — at 48 V rated value | 6 A |
| operational current at AC-15 — at 110 V rated value | 6 A |
| operational current at AC-15 — at 230 V rated value | 6 A |
| operational current at AC-15 — at 400 V rated value | 3 A |
| operational current at AC-15 — at 500 V rated value | 1.4 A |
| operational current at DC-12 — at 24 V rated value | 10 A |
| operational current at DC-12 — at 48 V rated value | 5 A |
| operational current at DC-12 — at 110 V rated value | 2.5 A |
| operational current at DC-12 — at 230 V rated value | 1 A |
| operational current at DC-12 — at 400 V rated value | 0.3 A |
| operational current at DC-12 — at 500 V rated value | 0.3 A |
| operational current at DC-13 — at 24 V rated value | 3 A |
| operational current at DC-13 — at 48 V rated value | 1.5 A |
| operational current at DC-13 — at 110 V rated value | 0.7 A |
| operational current at DC-13 — at 230 V rated value | 0.3 A |
| operational current at DC-13 — at 400 V rated value | 0.1 A |
| operational current at DC-13 — at 500 V rated value | 0.1 A |
Connections/ Terminals
| type of electrical connection | screw terminal |
| type of connectable conductor cross-sections — solid with core end processing | 2x (0.5 ... 0.75 mm²) |
| type of connectable conductor cross-sections — solid without core end processing | 2x (1.0 ... 1.5 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 2x (0.5 ... 1.5 mm²) |
| type of connectable conductor cross-sections — finely stranded without core end processing | 2x (1,0 ... 1,5 mm²) |
| type of connectable conductor cross-sections — for AWG cables | 2x (18 ... 14) |
| tightening torque with screw-type terminals | 0.8 ... 0.9 N·m |
Ambient conditions
| ambient temperature — during operation | -25 ... +70 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 ... 95%, no condensation in operation permitted) |

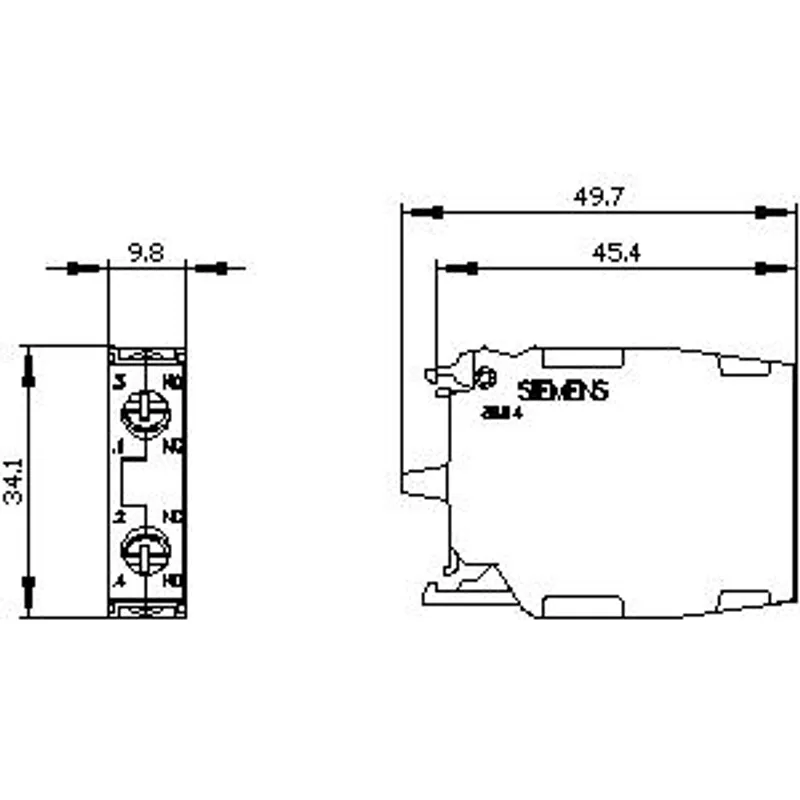

Installation/ mounting/ dimensions
| fastening method | front plate mounting |
| fastening method — of modules and accessories | Front plate mounting |
| height | 34 mm |
| width | 9.8 mm |
| depth | 49.7 mm |
| suitability for integration — plastic enclosure | No |
| suitability for integration — metal enclosure | No |
Environmental footprint
| Environmental Product Declaration(EPD) | Yes |
| global warming potential [CO2 eq] total | 0.787 kg |
| global warming potential [CO2 eq] during manufacturing | 0.566 kg |
| global warming potential [CO2 eq] during operation | 0.235 kg |
| global warming potential [CO2 eq] after end of life | -0.015 kg |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 0.566 kg |
| global warming potential [CO2 eq] / during operation | 0.235 kg |
| global warming potential [CO2 eq] / after end of life | -0.0145 kg |
| global warming potential [CO2 eq] / total | 0.787 kg |
