Siemens 3SU1401-2BF40-3AA0-Z Y19

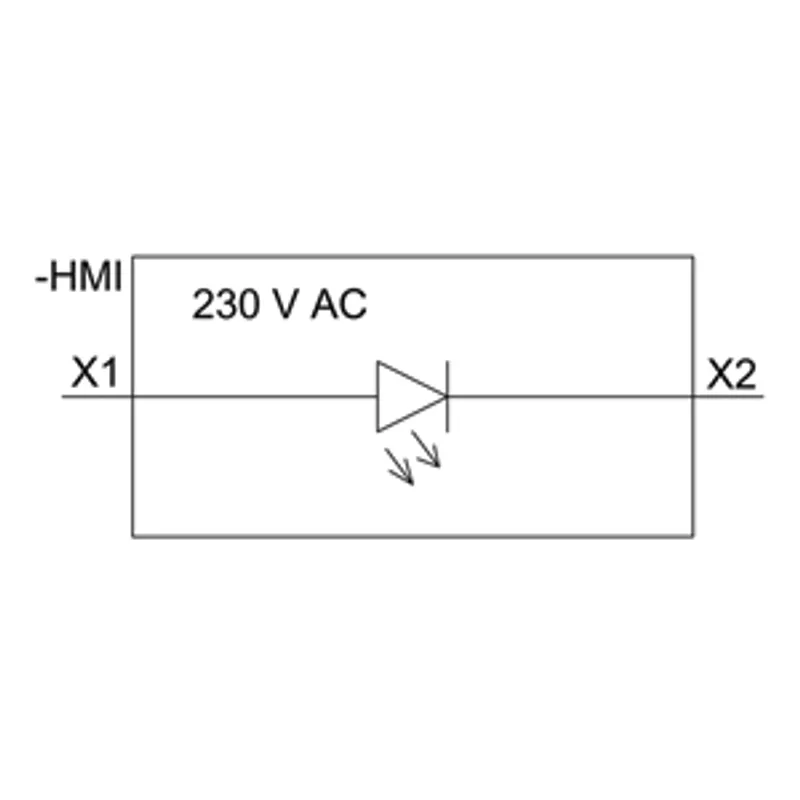

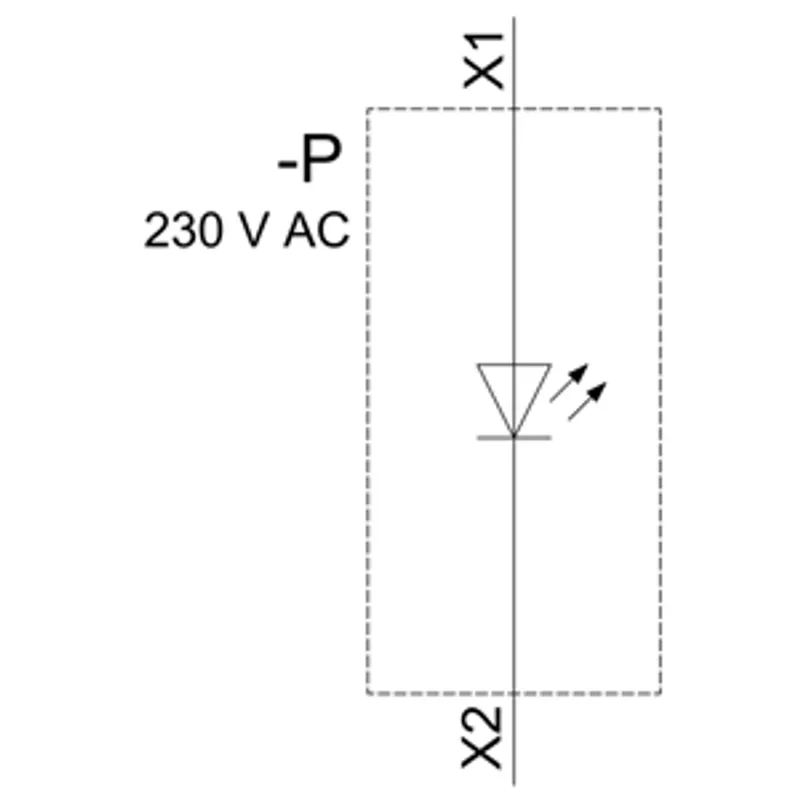

LED module with integrated LED 230 V AC, green, spring-type terminal
- MPN
- 3SU1401-2BF40-3AA0-Z Y19
- Category
- Modules
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 3SU1401-2BF40-3AA0-Z Y19?
LED module with integrated LED 230 V AC, green, spring-type terminal, for floor mounting Customer-specific selection with SIRIUS ACT configurator (CIN)
Specifications
General
| product brand name | SIRIUS ACT |
| product designation | LED module |
| product type designation | 3SU1 |
General technical data
| product component — diode | Yes |
| product component — lamp transformer | No |
| product component — light source | Yes |
| product component — series resistor | No |
| insulation voltage rated value | 320 V |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC |
| type of voltage of the operating voltage — for actuation | AC |
| surge voltage resistance rated value | 4 kV |
| consumed current maximum | 20 mA |
| protection class IP — of the enclosure | IP40 |
| protection class IP — of the terminal | IP20 |
| shock resistance — according to IEC 60068-2-27 | sinusoidal half-wave 15 g / 11 ms |
| shock resistance — for railway applications according to EN 61373 | Category 1, Class B |
| vibration resistance — according to IEC 60068-2-6 | 10 ... 500 Hz: 5 g |
| vibration resistance — for railway applications according to EN 61373 | Category 1, Class B |
| operating period typical | 100 000 h |
| reference code according to IEC 81346-2 | P |
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| SVHC substance name | 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 |
| Net Weight | 10 g |
| operating voltage 1 — at AC — at 50 Hz rated value | 230 V |
| operating voltage 1 — at AC — at 60 Hz rated value | 230 V |
| relative positive tolerance of the operating voltage | 20 % |
| relative negative tolerance of the operating voltage | 20 % |
Control circuit/ Control
| inrush current maximum | 3 A |
Connections/ Terminals
| type of electrical connection | spring-loaded terminals |
| type of connectable conductor cross-sections — solid without core end processing | 2x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 2x (0.25 ... 0.75 mm²) |
| type of connectable conductor cross-sections — finely stranded without core end processing | 2x (0.25 ... 1.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables | 2x (24 ... 16) |
| connectable conductor cross-section finely stranded with core end processing | 0.25 ... 0.75 mm² |
Lamp
| type of light source | LED |
| color of the light source | green |
| light intensity | 900 ... 1 400 mcd |
ATEX
| certificate of suitability — ATEX | No |
| certificate of suitability — IECEx | No |
Ambient conditions
| ambient temperature — during operation | -25 ... +70 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95%, no condensation in operation permitted) |
Installation/ mounting/ dimensions
| fastening method — of modules and accessories | Floor mounting |
| height | 36 mm |
| width | 9.8 mm |
| depth | 29.4 mm |
Environmental footprint
| Environmental Product Declaration(EPD) | Yes |
| global warming potential [CO2 eq] total | 0.787 kg |
| global warming potential [CO2 eq] during manufacturing | 0.566 kg |
| global warming potential [CO2 eq] during operation | 0.235 kg |
| global warming potential [CO2 eq] after end of life | -0.015 kg |
Approvals Certificates
| global warming potential [CO2 eq] / during manufacturing | 0.566 kg |
| global warming potential [CO2 eq] / during operation | 0.235 kg |
| global warming potential [CO2 eq] / after end of life | -0.0145 kg |
| global warming potential [CO2 eq] / total | 0.787 kg |
