SENTRON 5TL1 On/Off Switches Parts

Showing 1–16 of 16 parts
Siemens 5TL1280-0 – Switch disconnector, on-off switch 80 A 2-pole
Siemens
5TL1280-0

Switch disconnector, on-off switch 80 A 2-pole

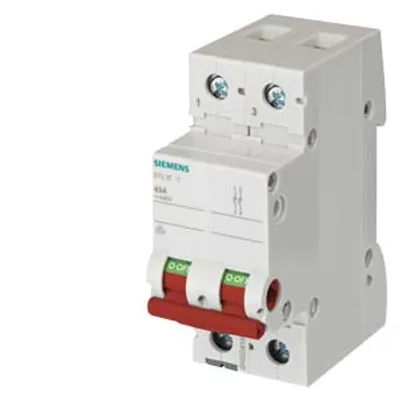

Siemens 5TL1263-1 – Switch disconnector, on-off switch 63 A 2-pole, with red handle
Siemens
5TL1263-1

Switch disconnector, on-off switch 63 A 2-pole

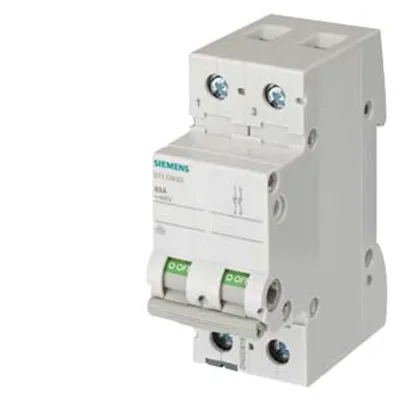

Siemens 5TL1263-0 – Switch disconnector, on-off switch 63 A 2-pole
Siemens
5TL1263-0

Switch disconnector, on-off switch 63 A 2-pole

Siemens 5TL1240-0 – Switch disconnector, on-off switch 40 A 2-pole
Siemens
5TL1240-0

Switch disconnector, on-off switch 40 A 2-pole

Siemens 5TL1191-0 – Switch disconnector, on-off switch 100 A 1-pole
Siemens
5TL1191-0

Switch disconnector, on-off switch 100 A 1-pole

Siemens 5TL1132-0 – Switch disconnector, on-off switch 32 A 1-pole
Siemens
5TL1132-0

Switch disconnector, on-off switch 32 A 1-pole

Siemens 5TL1332-0 – Switch disconnector, on-off switch 32 A 3-pole
Siemens
5TL1332-0

Switch disconnector, on-off switch 32 A 3-pole

Siemens 5TL1292-0 – Switch disconnector, on-off switch 125 A 2-pole
Siemens
5TL1292-0

Switch disconnector, on-off switch 125 A 2-pole

Siemens 5TL1492-0 – Switch disconnector, on-off switch 125 A 4-pole
Siemens
5TL1492-0

Switch disconnector, on-off switch 125 A 4-pole

Siemens 5TL1391-0 – Switch disconnector, on-off switch 100 A 3-pole
Siemens
5TL1391-0

Switch disconnector, on-off switch 100 A 3-pole

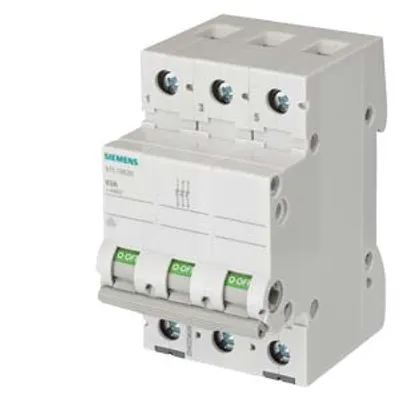

Siemens 5TL1380-0 – Switch disconnector, on-off switch 80 A 3-pole
Siemens
5TL1380-0

Switch disconnector, on-off switch 80 A 3-pole

Siemens 5TL1232-0 – Switch disconnector, on-off switch 32 A 2-pole
Siemens
5TL1232-0

Switch disconnector, on-off switch 32 A 2-pole

Siemens 5TL1163-0 – Switch disconnector, on-off switch 63 A 1-pole
Siemens
5TL1163-0

Switch disconnector, on-off switch 63 A 1-pole

Siemens 5TL1640-0 – Switch disconnector, on-off switch 40 A 3-pole + N
Siemens
5TL1640-0

Switch disconnector, on-off switch 40 A 3-pole + N

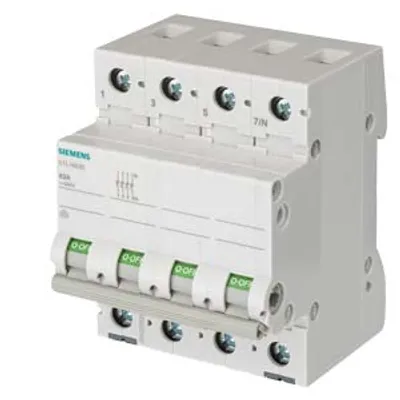

Siemens 5TL1632-0 – Switch disconnector, on-off switch 32 A 3-pole + N
Siemens
5TL1632-0

Switch disconnector, on-off switch 32 A 3-pole + N

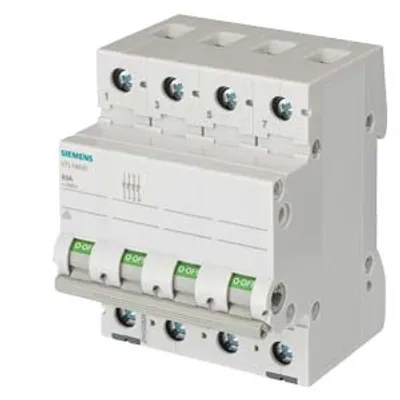

Siemens 5TL1432-0 – Switch disconnector, on-off switch 32 A 4-pole
Siemens
5TL1432-0

Switch disconnector, on-off switch 32 A 4-pole

Compare SENTRON 5TL1 On/Off Switches

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNdesign of the productswitching capacity current rated valuepower loss [W] for rated value of the current at AC in hot operating state per poleoperational current rated valueNet Weight
5TL1280-02 NO0.24 kA3.5 W80 A223 g
5TL1263-12 NO red0.196 kA2.2 W63 A201.5 g
5TL1263-02 NO0.196 kA2.2 W63 A205 g
5TL1240-02 NO0.12 kA0.9 W40 A242 g
5TL1191-01 NO0.3 kA5.5 W100 A0.116 kg
5TL1132-01 NO0.096 kA0.7 W32 A123 g
5TL1332-03 NO0.096 kA0.7 W32 A358 g
5TL1292-02 NO0.375 kA8.6 W125 A225 g
5TL1492-04 NO0.375 kA8.6 W125 A433 g
5TL1391-03 NO0.3 kA5.5 W100 A321 g
5TL1380-03 NO0.24 kA3.5 W80 A332 g
5TL1232-02 NO0.096 kA0.7 W32 A241 g
5TL1163-01 NO0.196 kA2.2 W63 A116.5 g
5TL1640-03 NO + N0.12 kA0.9 W40 A480 g
5TL1632-03 NO + N0.096 kA0.7 W32 A477 g
5TL1432-04 NO0.096 kA0.7 W32 A478 g

Common to all listed parts

product designationOn-off switch
design of the switching functionon-off switch
short-circuit current rating10 kA
type of voltage of the operating voltageAC
value range of the operating frequency50/60 Hz
protection class IPother
product component signal lampNo
product function positive opening (acc. to DIN VDE 0113)No
