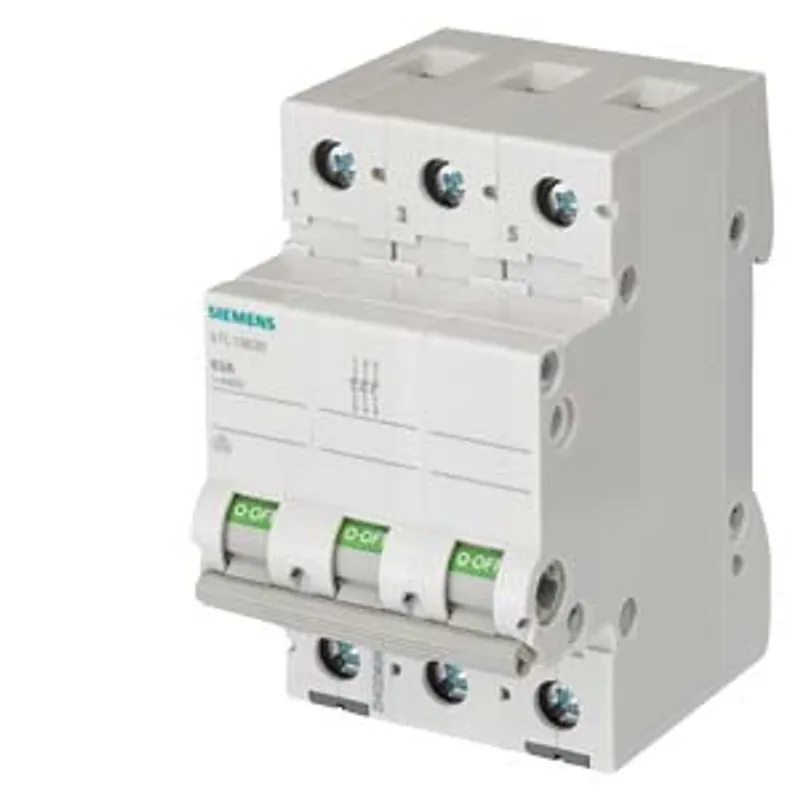

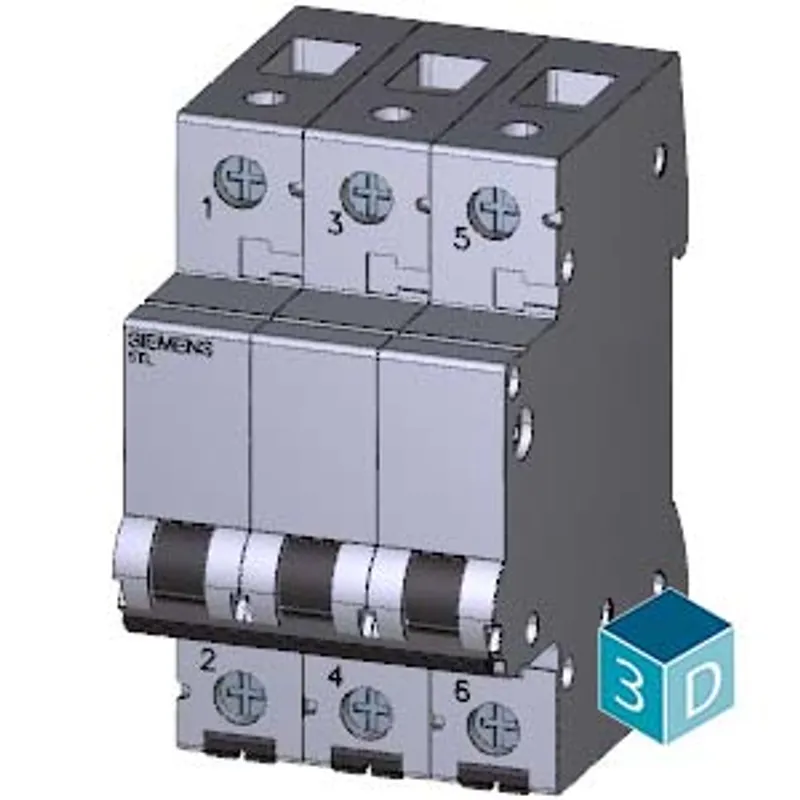

Siemens 5TL1332-0
Switch disconnector, on-off switch 32 A 3-pole
- MPN
- 5TL1332-0
- Category
- SENTRON 5TL1 On/Off Switches
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 5TL1332-0?
switch disconnector, on-off switch 32 A 3-pole
Specifications
Model
| product brand name | SENTRON |
| product designation | On-off switch |
| design of the product | 3 NO |
| design of the switching function | on-off switch |
General technical data
| number of poles | 3 |
| short-circuit current rating | 10 kA |
| type of voltage of the operating voltage | AC |
Supply voltage
| operating voltage rated value | 440 V |
| value range of the operating frequency | 50/60 Hz |
Protection class
| protection class IP | other |
Breaking Capacity
| switching capacity current rated value | 0.096 kA |
Dissipation
| power loss [W] for rated value of the current at AC in hot operating state per pole | 0.7 W |
Main circuit
| operational current rated value | 32 A |
Product details
| product component signal lamp | No |
| number of NO contacts | 3 |
Product function
| product function positive opening (acc. to DIN VDE 0113) | No |
| connectable conductor cross-section for flexible conductor with core end processing — minimum | 1 mm² |
| connectable conductor cross-section for flexible conductor with core end processing — maximum | 35 mm² |
| connectable conductor cross-section for rigid conductor — minimum | 1 mm² |
| connectable conductor cross-section for rigid conductor — maximum | 35 mm² |
| tightening torque with screw-type terminals — minimum | 2.5 N·m |
| tightening torque with screw-type terminals — maximum | 3 N·m |

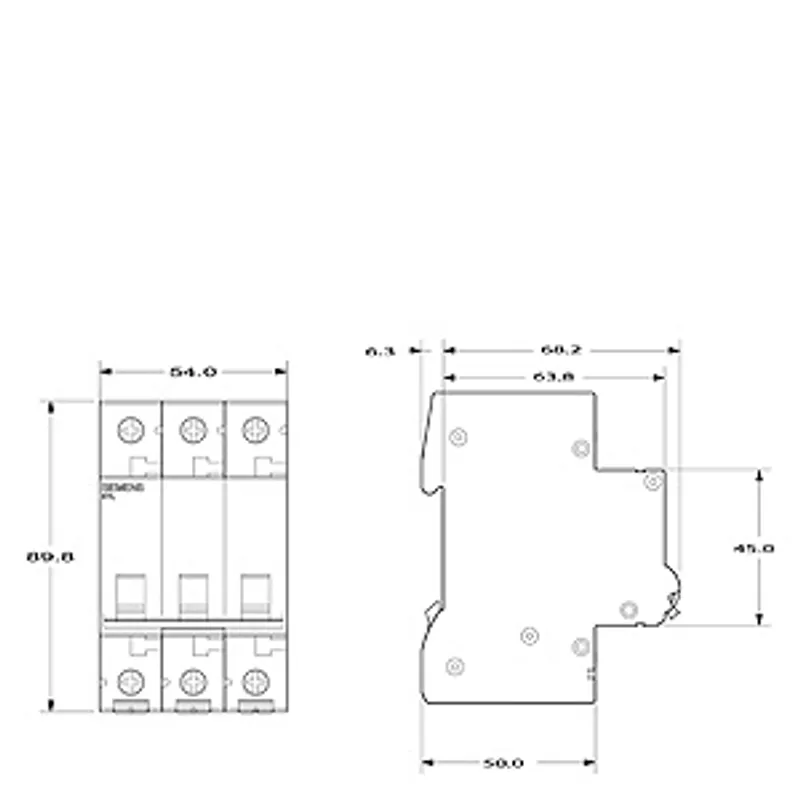

Mechanical Design
| height | 89.8 mm |
| depth | 74.5 mm |
| installation depth | 70 mm |
| number of modular width units | 3 |
| Net Weight | 358 g |
| ambient temperature during operation — minimum | -5 °C |
| ambient temperature during operation — maximum | 40 °C |
| ambient temperature during storage minimum | -25 °C |
No matching specifications
