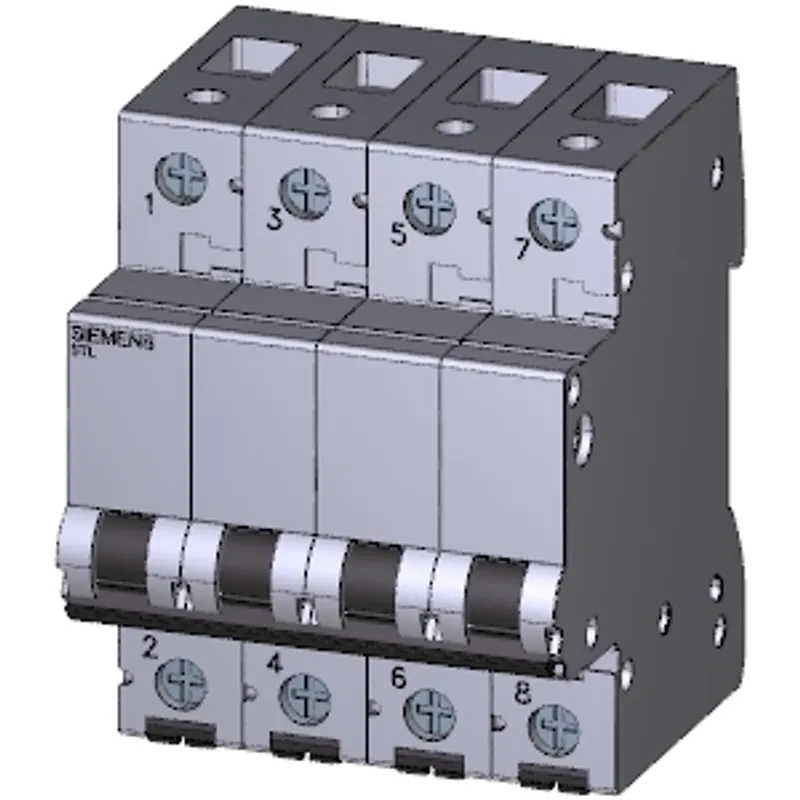

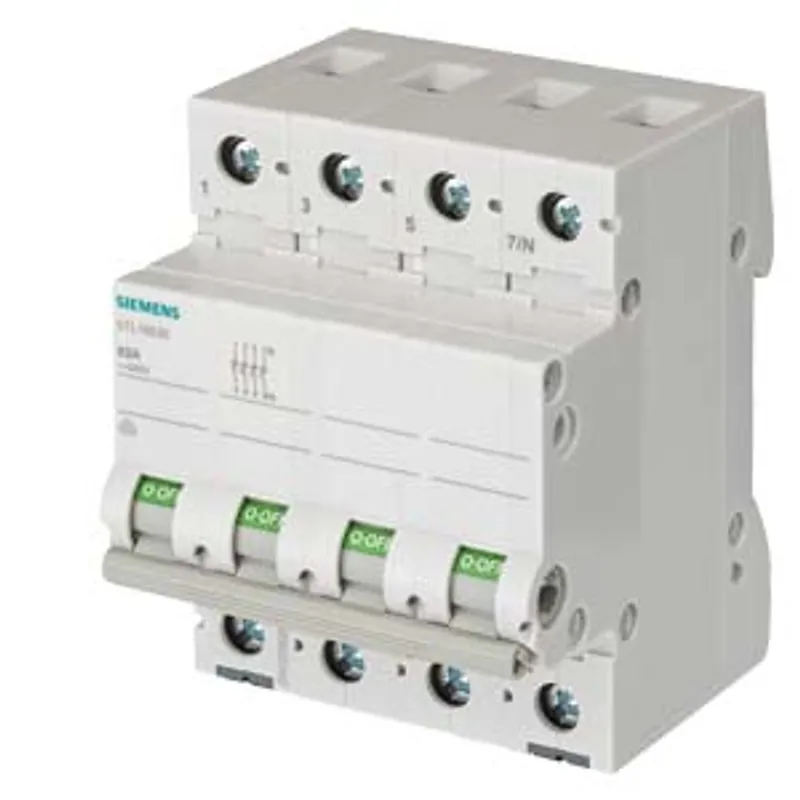

Siemens 5TL1632-0

Switch disconnector, on-off switch 32 A 3-pole + N

MPN
5TL1632-0
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5TL1632-0?

switch disconnector, on-off switch 32 A 3-pole + N

Specifications

Model

product brand nameSENTRON
product designationOn-off switch
design of the product3 NO + N
design of the switching functionon-off switch

General technical data

number of poles3
design of pole3P+N
short-circuit current rating10 kA
type of voltage of the operating voltageAC

Supply voltage

operating voltage rated value440 V
value range of the operating frequency50/60 Hz

Protection class

protection class IPother

Breaking Capacity

switching capacity current rated value0.096 kA

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole0.7 W

Main circuit

operational current rated value32 A

Product details

product component signal lampNo
number of NO contacts3

Product function

product function positive opening (acc. to DIN VDE 0113)No
connectable conductor cross-section for flexible conductor with core end processing — minimum1 mm²
connectable conductor cross-section for flexible conductor with core end processing — maximum35 mm²
connectable conductor cross-section for rigid conductor — minimum1 mm²
connectable conductor cross-section for rigid conductor — maximum35 mm²
tightening torque with screw-type terminals — minimum2.5 N·m
tightening torque with screw-type terminals — maximum3 N·m

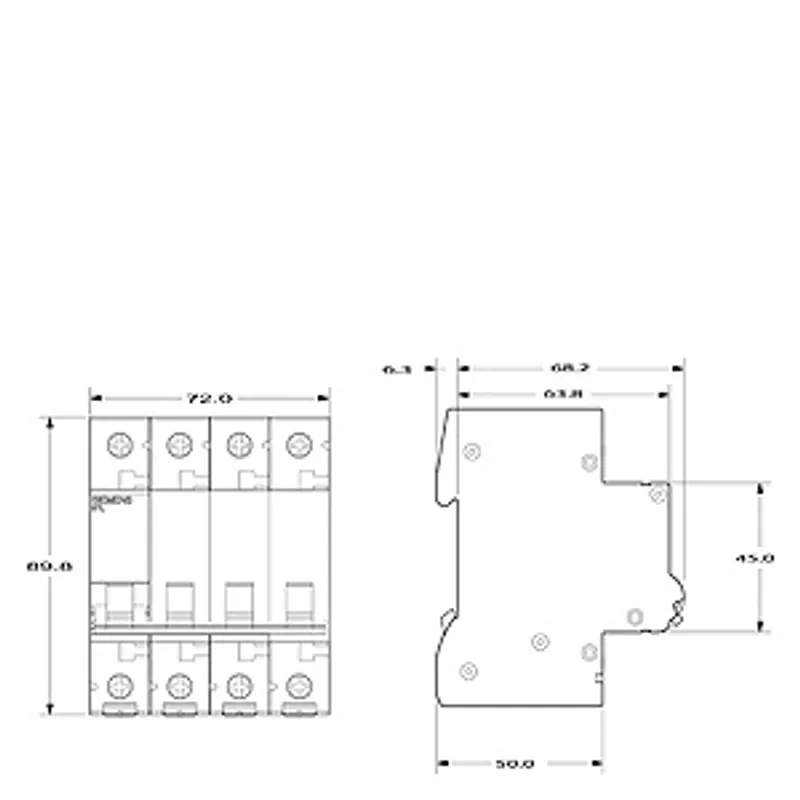

Mechanical Design

height89.8 mm
depth74.5 mm
installation depth70 mm
number of modular width units4
Net Weight477 g
ambient temperature during operation — minimum-5 °C
ambient temperature during operation — maximum40 °C
ambient temperature during storage minimum-25 °C

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5TL1632-0: frequently asked questions

When can 5TL1632-0 be shipped?

5TL1632-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5TL1632-0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5TL1632-0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5TL1632-0, subject to availability and destination.
