SIRIUS 3RN2 thermistor motor protection Parts
Compare SIRIUS 3RN2 thermistor motor protection
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current — at AC in hot operating state | power loss [W] for rated value of the current — at DC in hot operating state | Net Weight | inrush current peak — at 24 V | duration of inrush current peak — at 24 V |
|---|---|---|---|---|---|
| 3RN2013-1BA30 | 1.2 W | 1.2 W | 0.159 kg | 0.7 A | 0.25 ms |
| 3RN2010-2BW30 | 1.4 W | 1.4 W | 0.139 kg | 0.6 A | 0.25 ms |
| 3RN2010-2BA30 | 0.6 W | 0.6 W | 0.133 kg | 1.8 A | 2 ms |
| 3RN2012-2BW31 | 1 W | 1 W | 0.147 kg | 0.7 A | 0.25 ms |
| 3RN2012-2BW30 | 1.7 W | 1.7 W | 0.145 kg | 0.7 A | 0.25 ms |

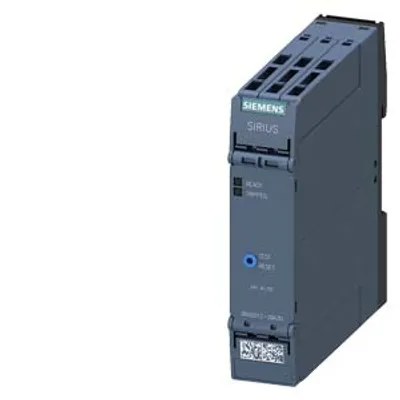

| 3RN2012-2BA30 | 1.2 W | 1.2 W | 0.138 kg | 0.5 A | 50 ms |
| 3RN2013-2BW30 | 1.7 W | 1.7 W | 0.144 kg | 0.7 A | 0.25 ms |
| 3RN2010-2CA30 | 0.4 W | 0.4 W | 102.46 g | 1.8 A | 2 ms |
| 3RN2000-2AA30 | — | — | 0.098 kg | — | — |
| 3RN2000-1AW30 | 0.9 W | 0.9 W | 0.11 kg | 0.3 A | 0.15 ms |
| 3RN2000-1AA30 | 0.3 W | 0.3 W | 0.103 kg | 1.8 A | 2 ms |
Common to all listed parts
| product function | thermistor motor protection |
| display version LED | Yes |
| insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value | 300 V |
| degree of pollution | 3 |
| shock resistance according to IEC 60068-2-27 | 11 g / 15 ms |
| vibration resistance according to IEC 60068-2-6 | 10 ... 55 Hz: 0.35 mm |
| mechanical service life (operating cycles) typical | 10 000 000 |
| thermal current of the switching element with contacts maximum | 5 A |
