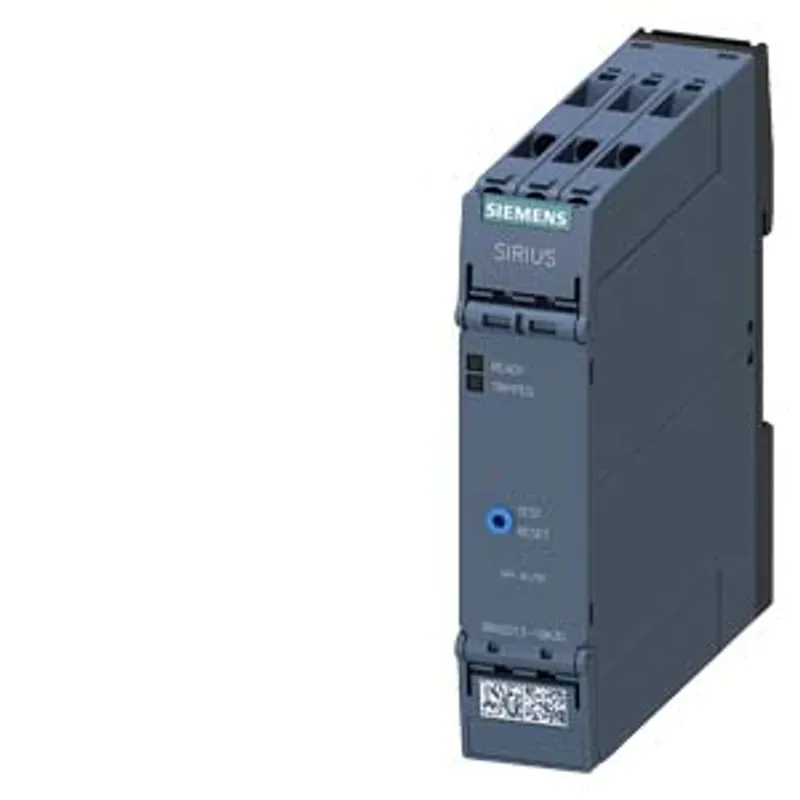

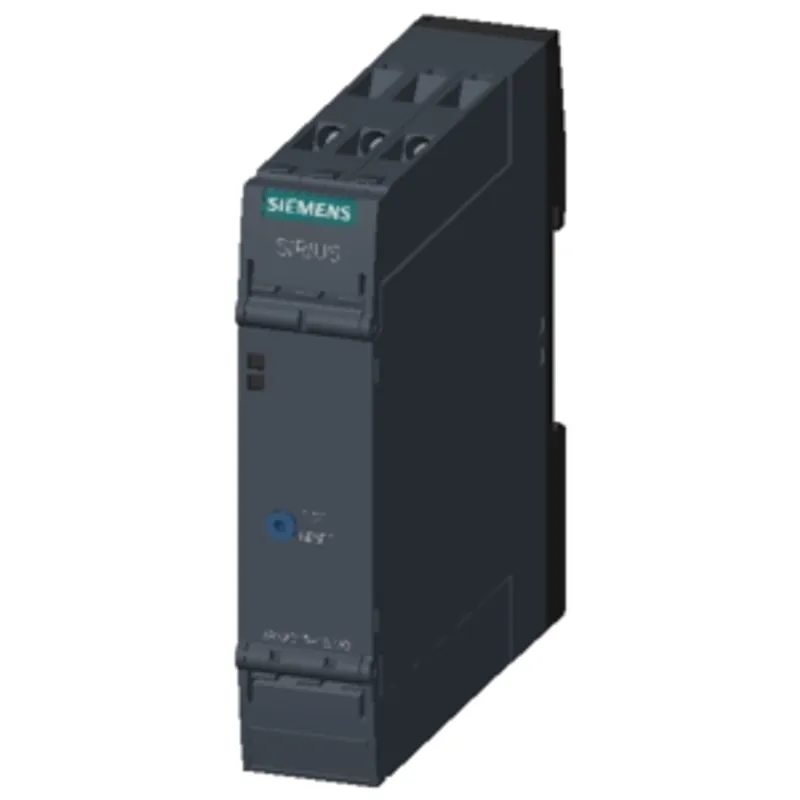

Siemens 3RN2013-1BA30
Thermistor motor protection relay standard evaluation unit 22.5 mm enclosure screw terminal 2 changeover…
- MPN
- 3RN2013-1BA30
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

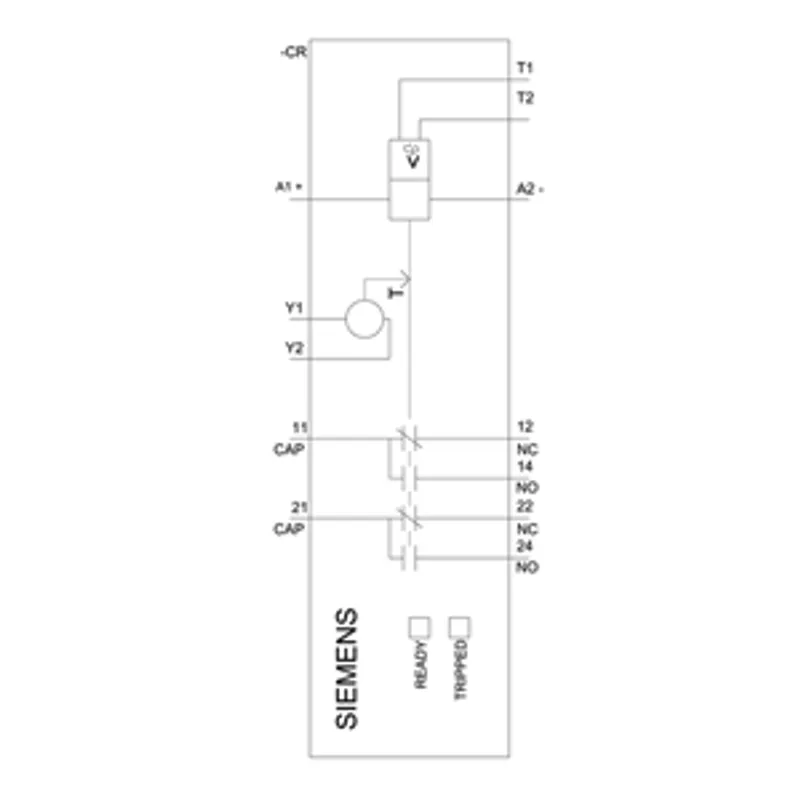

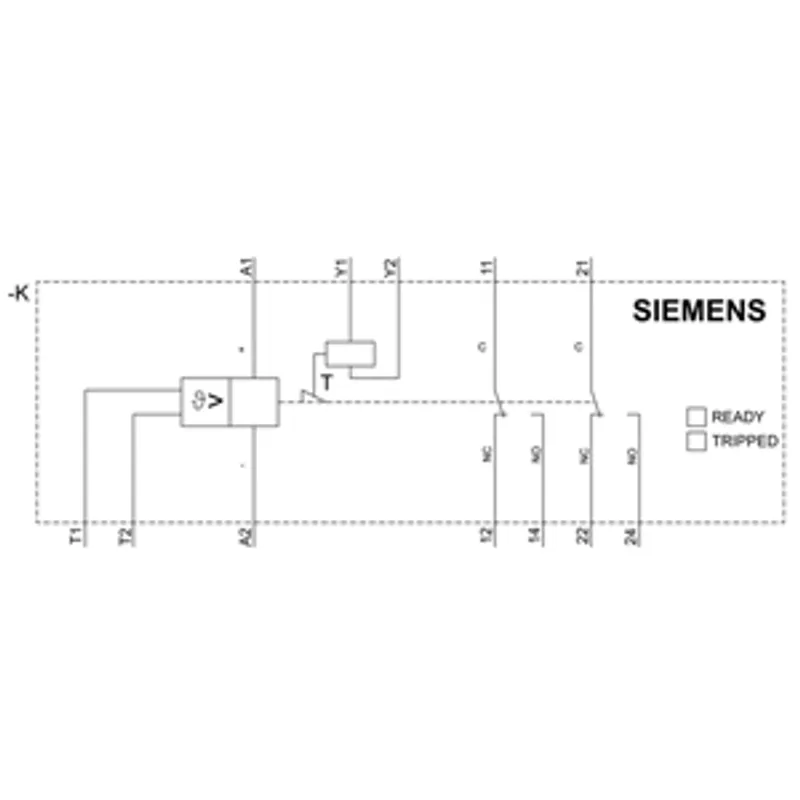

What is the Siemens 3RN2013-1BA30?
thermistor motor protection relay standard evaluation unit 22.5 mm enclosure screw terminal 2 changeover contacts Us = 24 V AC/DC manual/auto/remote RESET with ATEX approval 2 LEDs (ready/tripped) safe electrical isolation test/RESET button wire-break monitoring short-circuit monitoring non-volatile
Specifications
General
| product brand name | SIRIUS |
| product category | SIRIUS 3RN2 thermistor motor protection |
| product designation | Thermistor motor protection relay |
| design of the product | Standard evaluation unit with ATEX approval, open-circuit and short-circuit detection in the sensor circuit, safe disconnection, non-volatile |
| product type designation | 3RN2 |
General technical data
| product function | thermistor motor protection |
| display version LED | Yes |
| power loss [W] for rated value of the current — at AC in hot operating state | 1.2 W |
| power loss [W] for rated value of the current — at DC in hot operating state | 1.2 W |
| insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value | 300 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 6 kV |
| maximum permissible voltage for protective separation — between auxiliary and auxiliary circuit | 300 V |
| maximum permissible voltage for protective separation — between control and auxiliary circuit | 300 V |
| shock resistance according to IEC 60068-2-27 | 11 g / 15 ms |
| vibration resistance according to IEC 60068-2-6 | 10 ... 55 Hz: 0.35 mm |
| mechanical service life (operating cycles) typical | 10 000 000 |
| electrical endurance (operating cycles) at AC-15 — at 24 V typical | 100 000 |
| electrical endurance (operating cycles) at AC-15 — at 230 V typical | 100 000 |
| thermal current of the switching element with contacts maximum | 5 A |
| reference code according to IEC 81346-2 | K |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 |
| Net Weight | 0.159 kg |
Product Function
| product function — error memory | Yes |
| product function — dynamic open-circuit detection | Yes |
| product function — external reset | Yes |
| product function — auto-RESET | Yes |
| product function — manual RESET | Yes |
Control circuit/ Control
| type of voltage of the control supply voltage | AC/DC |
| control supply voltage at AC — at 50 Hz rated value | 24 V |
| control supply voltage at AC — at 60 Hz rated value | 24 V |
| control supply voltage at DC rated value | 24 V |
| operating range factor control supply voltage rated value at DC — initial value | 0.85 |
| operating range factor control supply voltage rated value at DC — full-scale value | 1.1 |
| operating range factor control supply voltage rated value at AC at 50 Hz — initial value | 0.85 |
| operating range factor control supply voltage rated value at AC at 50 Hz — full-scale value | 1.1 |
| operating range factor control supply voltage rated value at AC at 60 Hz — initial value | 0.85 |
| operating range factor control supply voltage rated value at AC at 60 Hz — full-scale value | 1.1 |
| inrush current peak — at 24 V | 0.7 A |
| duration of inrush current peak — at 24 V | 0.25 ms |
Measuring circuit
| buffering time in the event of power failure minimum | 40 ms |
Precision
| relative metering precision | 2 % |
Auxiliary circuit
| material of switching contacts | AgSnO2 |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| number of CO contacts for auxiliary contacts | 2 |
| operational current of auxiliary contacts at AC-15 maximum | 3 A |
| operational current of auxiliary contacts at DC-13 — at 24 V | 1 A |
| operational current of auxiliary contacts at DC-13 — at 125 V | 0.2 A |
| operational current of auxiliary contacts at DC-13 — at 250 V | 0.1 A |
Main circuit
| operating frequency rated value | 50 ... 60 Hz |
| ampacity of the output relay at AC-15 at 250 V at 50/60 Hz | 3 A |
| ampacity of the output relay at DC-13 — at 24 V | 1 A |
| ampacity of the output relay at DC-13 — at 125 V | 0.2 A |
| continuous current of the DIAZED fuse link of the output relay | 6 A |
Electromagnetic compatibility
| conducted interference — due to burst according to IEC 61000-4-4 | 2 kV (power ports) / 1 kV (signal ports) |
| conducted interference — due to conductor-earth surge according to IEC 61000-4-5 | 2 kV (line to ground) |
| conducted interference — due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV (line to line) |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
Galvanic isolation
| design of the electrical isolation | Protective separation |
| galvanic isolation — between input and output | Yes |
| galvanic isolation — between the outputs | Yes |
| galvanic isolation — between the voltage supply and other circuits | Yes |
Safety related data
| failure rate [FIT] at rate of recognizable hazardous failures (λdd) | 6.8E-8 1/h |
| failure rate [FIT] at rate of non-recognizable hazardous failures (λdu) | 3.08E-7 1/h |
| average diagnostic coverage level (DCavg) | 18 % |
| MTBF | 97 a |
| MTTFd | 303 a |
| Safety Integrity Level (SIL) according to IEC 62061 | SIL 1 |
| PFHD with high demand rate according to IEC 62061 | 3.76E-7 1/h |
| performance level (PL) according to EN ISO 13849-1 | c |
| category according to EN ISO 13849-1 | 1 |
| performance level (PL) according to ISO 13849-1 | PL c |
| Safety Integrity Level (SIL) according to IEC 61508 | 1 |
| safety device type according to IEC 61508-2 | Type B |
| PFDavg with low demand rate according to IEC 61508 | 0.0041 |
| Safe failure fraction (SFF) | 74 % |
| hardware fault tolerance according to IEC 61508 | 0 |
| T1 value for proof test interval or service life according to IEC 61508 | 3 a |
Connections/ Terminals
| product component removable terminal for auxiliary and control circuit | Yes |
| type of electrical connection | screw terminal |
| type of electrical connection — for auxiliary and control circuit | screw-type terminals |
| type of connectable conductor cross-sections — solid | 1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²) |
| type of connectable conductor cross-sections — finely stranded with core end processing | 1x (0.5 ... 4 mm²), 2x (0.5 ... 1.5 mm²) |
| type of connectable conductor cross-sections — for AWG cables solid | 1x (20 ... 12), 2x (20 ... 14) |
| connectable conductor cross-section — solid | 0.5 ... 4 mm² |
| connectable conductor cross-section — finely stranded with core end processing | 0.5 ... 4 mm² |
| AWG number as coded connectable conductor cross section — solid | 20 ... 12 |
| AWG number as coded connectable conductor cross section — stranded | 20 ... 12 |
| tightening torque with screw-type terminals | 0.6 ... 0.8 N·m |

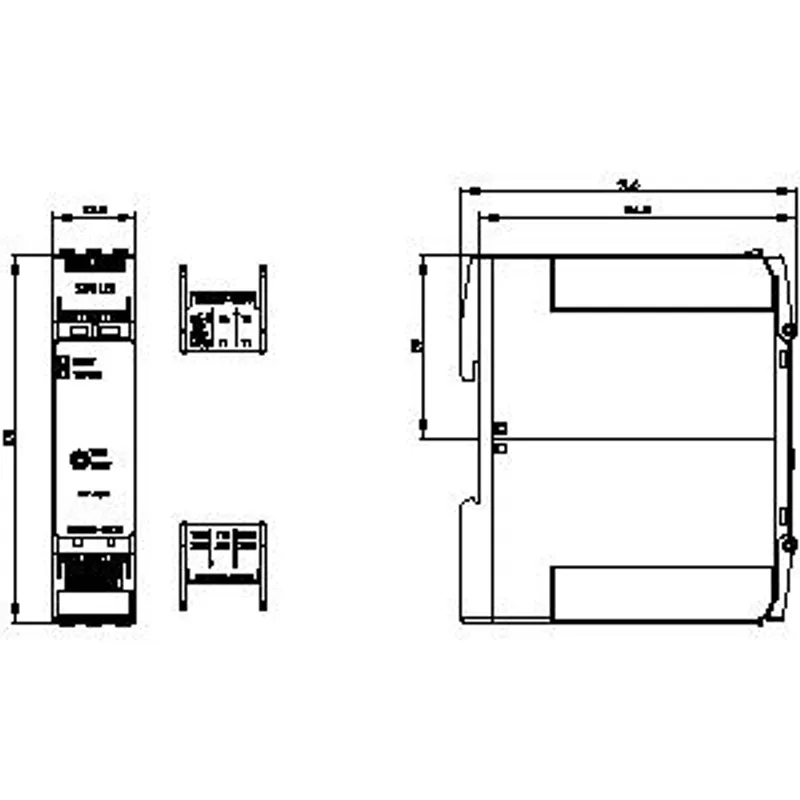

Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | screw and snap-on mounting onto 35 mm DIN rail |
| height | 100 mm |
| width | 22.5 mm |
| depth | 90 mm |
| required spacing — with side-by-side mounting — forwards | 0 mm |
| required spacing — with side-by-side mounting — backwards | 0 mm |
| required spacing — with side-by-side mounting — upwards | 0 mm |
| required spacing — with side-by-side mounting — downwards | 0 mm |
| required spacing — with side-by-side mounting — at the side | 0 mm |
| required spacing — for grounded parts — forwards | 0 mm |
| required spacing — for grounded parts — backwards | 0 mm |
| required spacing — for grounded parts — upwards | 0 mm |
| required spacing — for grounded parts — at the side | 0 mm |
| required spacing — for grounded parts — downwards | 0 mm |
| required spacing — for live parts — forwards | 0 mm |
| required spacing — for live parts — backwards | 0 mm |
| required spacing — for live parts — upwards | 0 mm |
| required spacing — for live parts — downwards | 0 mm |
| required spacing — for live parts — at the side | 0 mm |
Ambient conditions
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature — during operation | -25 ... +60 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| relative humidity during operation maximum | 70 % |
| explosion protection category for dust | [Ex t] [Ex p] |
| explosion protection category for gas | [Ex e] [Ex d] [Ex px] |
