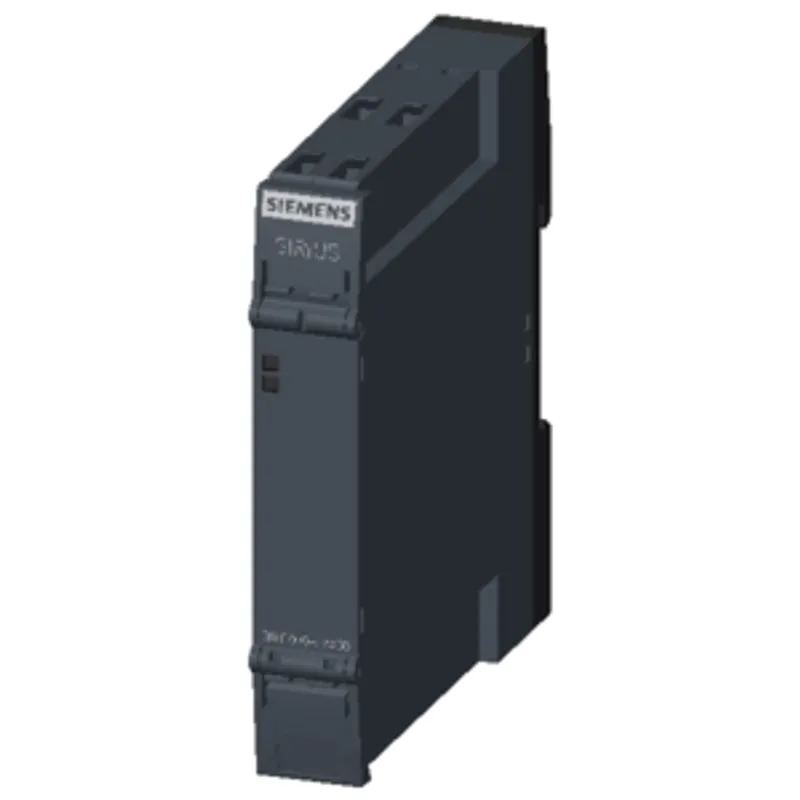

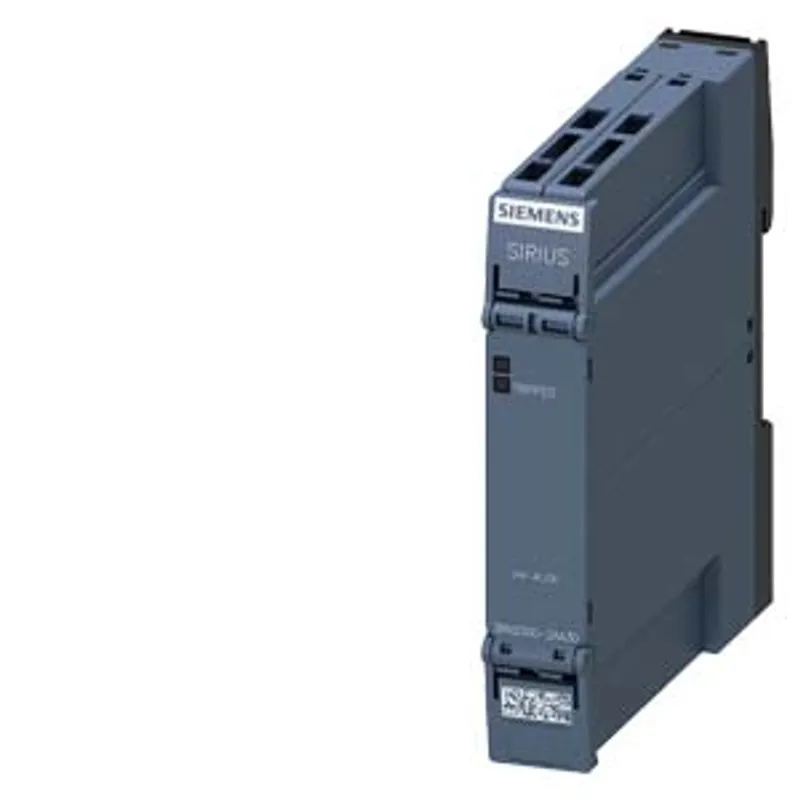

Siemens 3RN2000-2AA30
Thermistor motor protection relay compact evaluation unit, 17.5 mm enclosure, spring-loaded terminal
- MPN
- 3RN2000-2AA30
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RN2000-2AA30?

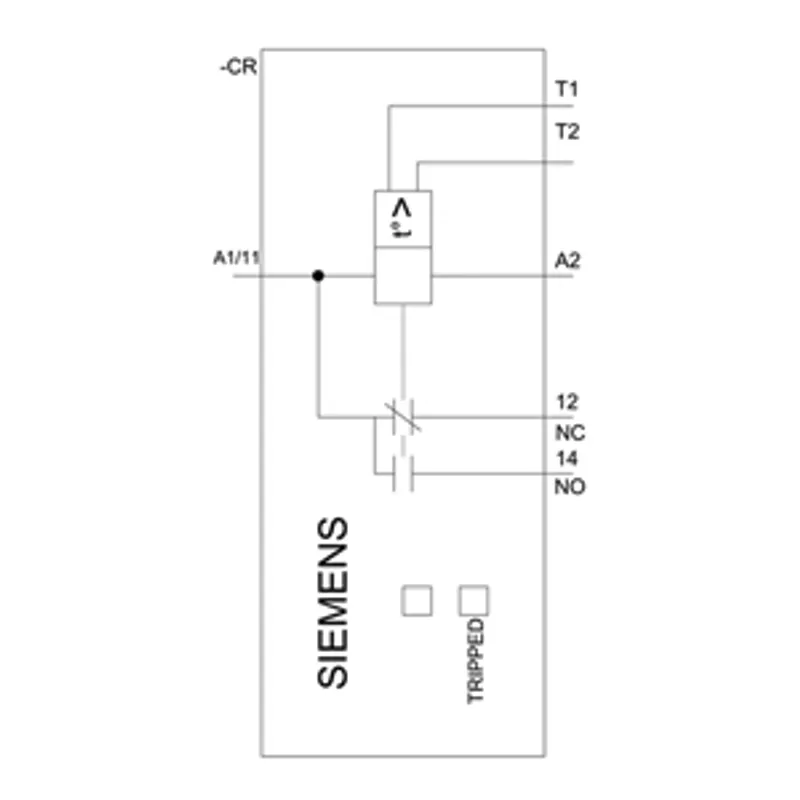

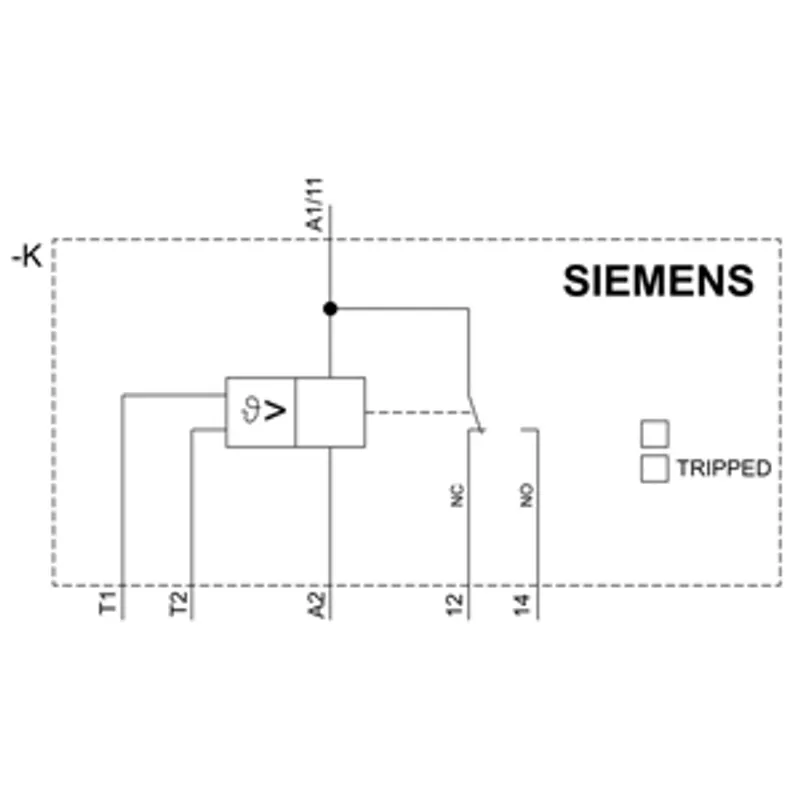

thermistor motor protection relay compact evaluation unit, 17.5 mm enclosure, spring-loaded terminal, 1 change-over contact, Us = 24 V AC/DC, Auto RESET, suitable for bimetallic temperature switches, supply=output voltage, 1 LED (tripped)
Specifications
General technical data
| product function | thermistor motor protection |
| display version LED | Yes |
| power loss [W] for rated value of the current – at AC in hot operating state | 0.3 W |
| power loss [W] for rated value of the current – at DC in hot operating state | 0.3 W |
| insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value | 300 V |
| degree of pollution | 3 |
| surge voltage resistance rated value | 4 kV |
| shock resistance according to IEC 60068-2-27 | 11 g / 15 ms |
| vibration resistance according to IEC 60068-2-6 | 10 ... 55 Hz: 0.35 mm |
| mechanical service life (operating cycles) typical | 10 000 000 |
| electrical endurance (operating cycles) at AC-15 – at 24 V typical | 100 000 |
| thermal current of the switching element with contacts maximum | 5 A |
| reference code according to IEC 81346-2 | K |
| Substance Prohibitance (day/month/year) | 05/28/2009 |
| SVHC substance name | Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 |
| Net Weight | 0.098 kg |
Product Function
| product function – error memory | No |
| product function – dynamic open-circuit detection | No |
| product function – external reset | No |
| product function – auto-RESET | Yes |
| product function – manual RESET | No |
Control circuit/ Control
| type of voltage of the control supply voltage | AC/DC |
| control supply voltage at AC – at 50 Hz rated value | 24 V |
| control supply voltage at AC – at 60 Hz rated value | 24 V |
| control supply voltage at DC rated value | 24 V |
| operating range factor control supply voltage rated value at DC – initial value | 0.85 |
| operating range factor control supply voltage rated value at DC – full-scale value | 1.1 |
| operating range factor control supply voltage rated value at AC at 50 Hz – initial value | 0.85 |
| operating range factor control supply voltage rated value at AC at 50 Hz – full-scale value | 1.1 |
| operating range factor control supply voltage rated value at AC at 60 Hz – initial value | 0.85 |
| operating range factor control supply voltage rated value at AC at 60 Hz – full-scale value | 1.1 |
| inrush current peak – at 24 V | 1.8 A |
| duration of inrush current peak – at 24 V | 2 ms |
Measuring circuit
| buffering time in the event of power failure minimum | 40 ms |
Precision
| relative metering precision | 9 % |
Auxiliary circuit
| material of switching contacts | AgSnO2 |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| number of CO contacts for auxiliary contacts | 1 |
| operational current of auxiliary contacts at AC-15 maximum | 3 A |
| operational current of auxiliary contacts at DC-13 – at 24 V | 1 A |
Main circuit
| operating frequency rated value | 50 ... 60 Hz |
| ampacity of the output relay at DC-13 – at 24 V | 1 A |
| continuous current of the DIAZED fuse link of the output relay | 6 A |
Electromagnetic compatibility
| conducted interference – due to burst according to IEC 61000-4-4 | 2 kV (power ports) / 1 kV (signal ports) |
| conducted interference – due to conductor-earth surge according to IEC 61000-4-5 | 2 kV (line to ground) |
| conducted interference – due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV (line to line) |
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge |
Galvanic isolation
| design of the electrical isolation | without galvanic isolation |
| galvanic isolation – between input and output | No |
| galvanic isolation – between the voltage supply and other circuits | No |
Connections/ Terminals
| product component removable terminal for auxiliary and control circuit | Yes |
| type of electrical connection | spring-loaded terminal (push-in) |
| for auxiliary and control circuit | spring-loaded terminals (push-in) |
| type of connectable conductor cross-sections – solid | 1x (0.5 ... 4 mm²) |
| type of connectable conductor cross-sections – finely stranded with core end processing | 1x (0.5 ... 2.5 mm²) |
| type of connectable conductor cross-sections – finely stranded without core end processing | 0.5 ... 4 mm² |
| type of connectable conductor cross-sections – for AWG cables solid | 1x (20 ... 12) |
| type of connectable conductor cross-sections – for AWG cables stranded | 20 ... 12 |
| connectable conductor cross-section – solid | 0.5 ... 4 mm² |
| connectable conductor cross-section – finely stranded with core end processing | 0.5 ... 2.5 mm² |
| connectable conductor cross-section – finely stranded without core end processing | 0.5 ... 4 mm² |
| AWG number as coded connectable conductor cross section – solid | 20 ... 12 |
| AWG number as coded connectable conductor cross section – stranded | 20 ... 12 |

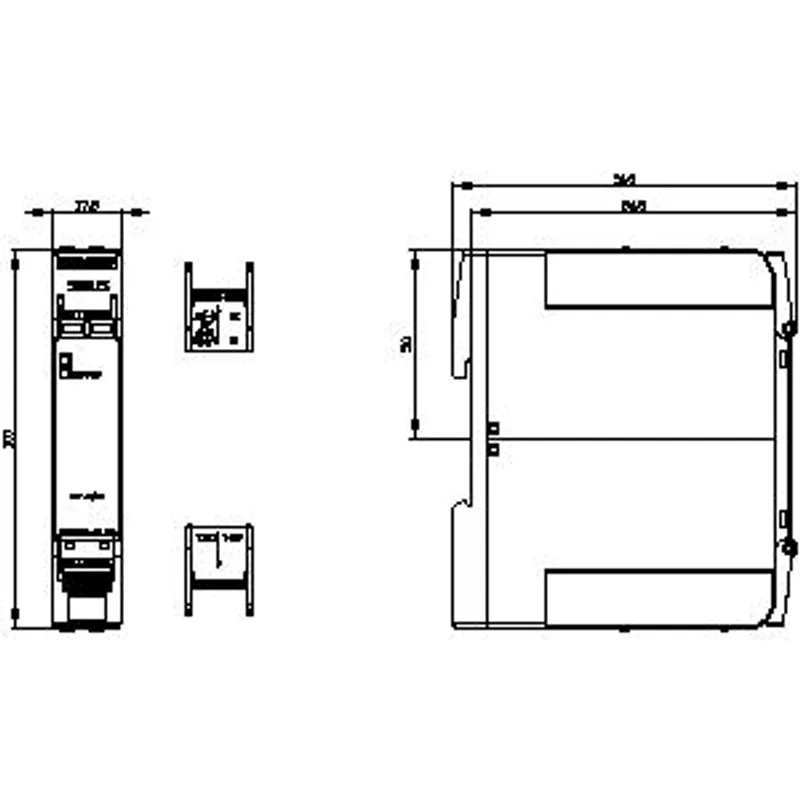

Installation/ mounting/ dimensions
| mounting position | any |
| fastening method | screw and snap-on mounting onto 35 mm DIN rail |
| height | 100 mm |
| width | 17.5 mm |
| depth | 90 mm |
| with side-by-side mounting – — forwards | 0 mm |
| with side-by-side mounting – — backwards | 0 mm |
| with side-by-side mounting – — upwards | 0 mm |
| with side-by-side mounting – — downwards | 0 mm |
| with side-by-side mounting – — at the side | 0 mm |
| for grounded parts – — forwards | 0 mm |
| for grounded parts – — backwards | 0 mm |
| for grounded parts – — upwards | 0 mm |
| for grounded parts – — at the side | 0 mm |
| for grounded parts – — downwards | 0 mm |
| for live parts – — forwards | 0 mm |
| for live parts – — backwards | 0 mm |
| for live parts – — upwards | 0 mm |
| for live parts – — downwards | 0 mm |
| for live parts – — at the side | 0 mm |
Ambient conditions
| installation altitude at height above sea level maximum | 2 000 m |
| ambient temperature – during operation | -25 ... +60 °C |
| ambient temperature – during storage | -40 ... +85 °C |
| ambient temperature – during transport | -40 ... +85 °C |
| relative humidity during operation maximum | 70 % |
