3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] / maximum | Net Weight | operational current — at 40 °C | operational current — at 45 °C | operational current — at 50 °C |
|---|---|---|---|---|---|
| 3VA1102-6MG32-0AA0 | 1.5 W | 951 g | 2 A | 2 A | 2 A |
| 3VA1102-5MG36-0AA0 | 1.5 W | 0.9 kg | 2 A | 2 A | 2 A |
| 3VA1096-4ED42-0AA0 | 10.6 W | 1.181 kg | 16 A | 16 A | 16 A |
| 3VA1096-4ED36-0AA0 | 10.6 W | 1.031 kg | 16 A | 16 A | 16 A |
| 3VA1110-6EF32-0AA0 | 25 W | 921 g | 100 A | 100 A | 100 A |
| 3VA1063-4ED36-0AA0 | 17.3 W | 979 g | 63 A | 63 A | 63 A |
| 3VA1096-3ED42-0AA0 | 10.6 W | 1.182 kg | 16 A | 16 A | 16 A |
| 3VA1096-3ED36-0AA0 | 10.6 W | 1.01 kg | 16 A | 16 A | 16 A |
| 3VA1112-4ED32-0AA0 | 28.1 W | 967 g | 125 A | 125 A | 125 A |
| 3VA1112-4ED26-0AA0 | 18.74 W | 0.716 kg | 125 A | 125 A | 125 A |

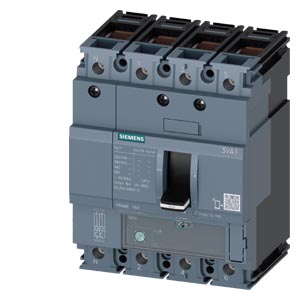

| 3VA1112-3GE46-0AA0 | 28.1 W | 1.378 kg | 125 A | 125 A | 125 A |
| 3VA1112-3GE42-0AA0 | 28.1 W | 1.286 kg | 125 A | 125 A | 125 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| mechanical service life (operating cycles) / typical | 20 000 |
| electrical endurance (operating cycles) / at AC-1 / at 380/415 V | 9 000 |
| electrical endurance (operating cycles) / at AC-1 / at 690 V | 6 300 |
| product feature / for neutral conductors / upgradable/retrofittable / short-circuit and overload proof | No |
| ground-fault monitoring version | Without |
| product function — communication function | No |
| product function — other measurement function | No |
