Cylindrical Fuse Design Parts
Compare Cylindrical Fuse Design
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | product designation | operating class of the fuse link | supply voltage at DC | operational current rated value | Net Weight |
|---|---|---|---|---|---|

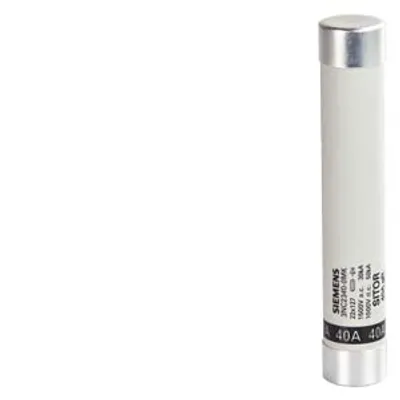

| 3NC2320-0MK | SITOR fuse link | gS | 1 000 V | 20 A | 0.104 kg |
| 3NC2316-0MK | SITOR fuse link | gS | 1 000 V | 16 A | 104 g |
| 3NC2310-0MK | SITOR fuse link | gS | 1 000 V | 10 A | 0.111 kg |
| 3NC2306-0MK | SITOR fuse link | gS | 1 000 V | 6 A | 102 g |
| 3NC1430 | SITOR fuse link | aR | 700 V | 30 A | 21 g |
| 3NC1425-5 | SITOR fuse link | aR | 600 V | 25 A | 23 g |
| 3NC1425-0MK | SITOR fuse link | gR | 600 V | 25 A | 23 g |
| 3NC1425 | SITOR fuse link | aR | 700 V | 25 A | 21 g |
| 3NC1420-5 | SITOR fuse link | aR | 600 V | 20 A | 23 g |
| 3NC2291 | SITOR fuse switch disconnector | — | — | 100 A | 214 g |
| 3NC2280-5 | SITOR fuse link | aR | 500 V | 80 A | 0.063 kg |
| 3NC2225-0MK | SITOR fuse link | gR | 700 V | 25 A | 56 g |
| 3NC2225 | SITOR fuse link | aR | 700 V | 25 A | 56 g |
| 3NC2220-5 | SITOR fuse link | aR | 500 V | 20 A | 64 g |
| 3NC1016 | SITOR fuse link | aR | 700 V | 16 A | 9 g |
| 3NC1012-0MK | SITOR fuse link | gR | 440 V | 12 A | 0.009 kg |
| 3NC1012 | SITOR fuse link | aR | 700 V | 12 A | 9 g |

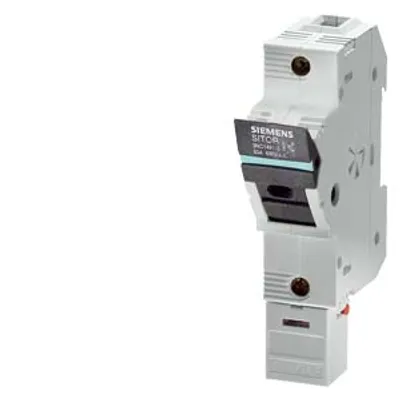

| 3NC1491-5 | SITOR fuse switch disconnector | — | — | 50 A | 121 g |

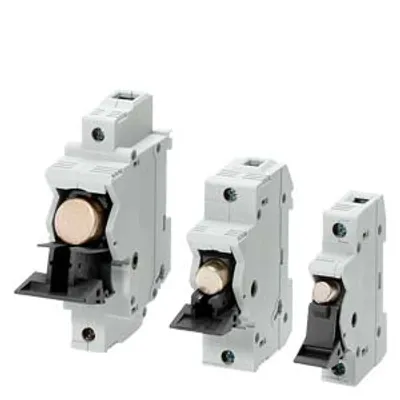

| 3NC1491 | SITOR fuse switch disconnector | — | — | 50 A | 104 g |
| 3NC1463-0MK | SITOR fuse link | aR | 250 V | 63 A | 23 g |
| 3NC2240 | SITOR fuse link | aR | 700 V | 40 A | 57 g |

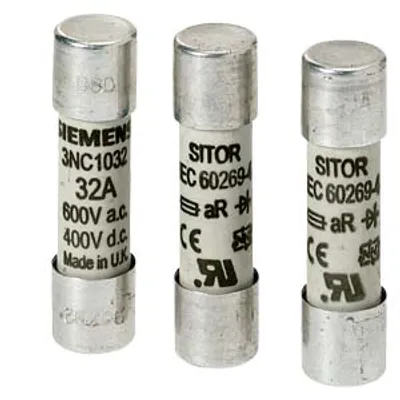

| 3NC2232-5 | SITOR fuse link | aR | 500 V | 32 A | 66 g |
| 3NC2232-0MK | SITOR fuse link | gR | 600 V | 32 A | 57 g |
| 3NC2200 | SITOR fuse link | aR | 700 V | 100 A | 58 g |
