Siemens 3NC2280-5

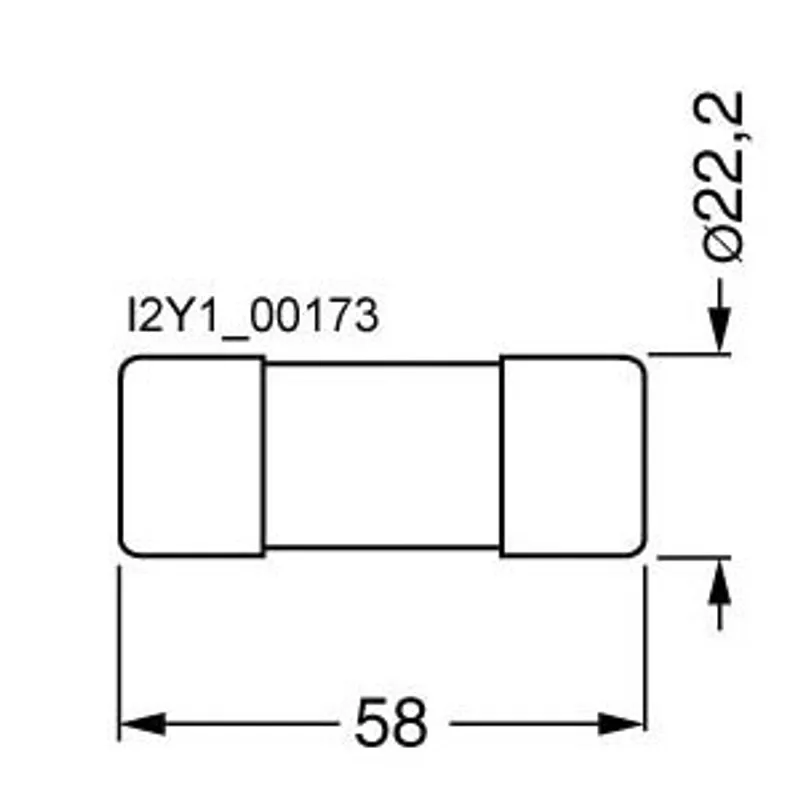

SITOR cylindrical fuse link, 22x58 mm, 80 A, aR, Un AC: 690 V, Un DC: 500 V, DC according to UL
- MPN
- 3NC2280-5
- Category
- Cylindrical Fuse Design
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3NC2280-5?
SITOR cylindrical fuse link, 22x58 mm, 80 A, aR, Un AC: 690 V, Un DC: 500 V, DC according to UL, Striker indicator
Specifications
Model
| product brand name | SENTRON |
| product designation | SITOR fuse link |
| design of the product | DC acc. to UL |
| design of an identification indicator | Striker indicator |
General technical data
| operating class of the fuse link | aR |
| type of voltage of the operating voltage | AC |
| supply voltage at DC | 500 V |
Dissipation
| power loss [W] | 13.5 W |
| power loss [W] for rated value of the current at AC in hot operating state per pole | 14 W |
Main circuit
| operational current rated value | 80 A |
Product details
| product component striker | Yes |
Mechanical Design
| mounting position | Any, preferably vertical |
| Net Weight | 0.063 kg |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
3NC2280-5: frequently asked questions
When can 3NC2280-5 be shipped?
3NC2280-5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3NC2280-5 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3NC2280-5 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3NC2280-5, subject to availability and destination.
