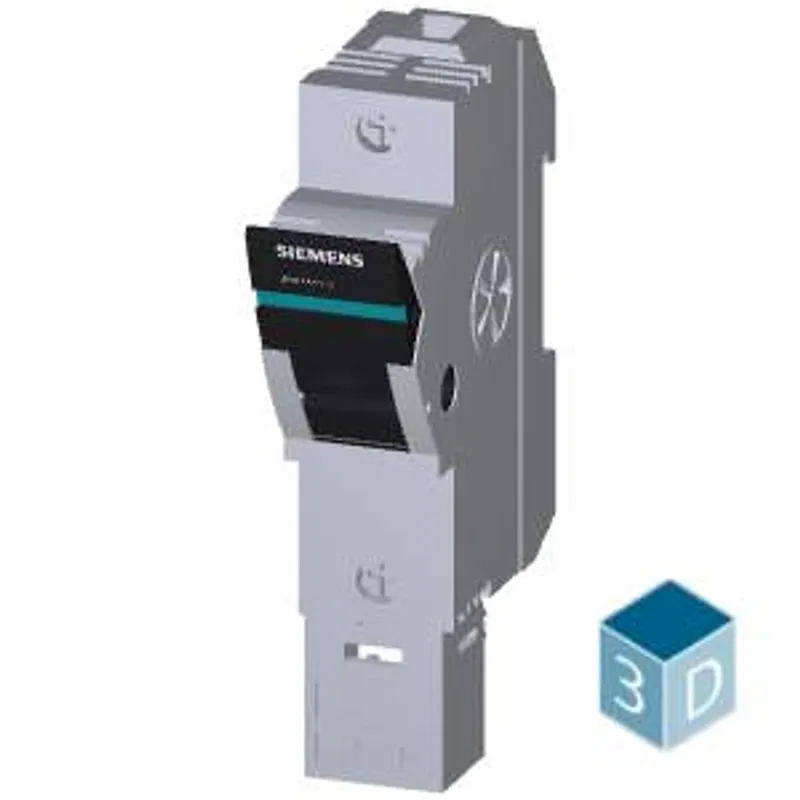

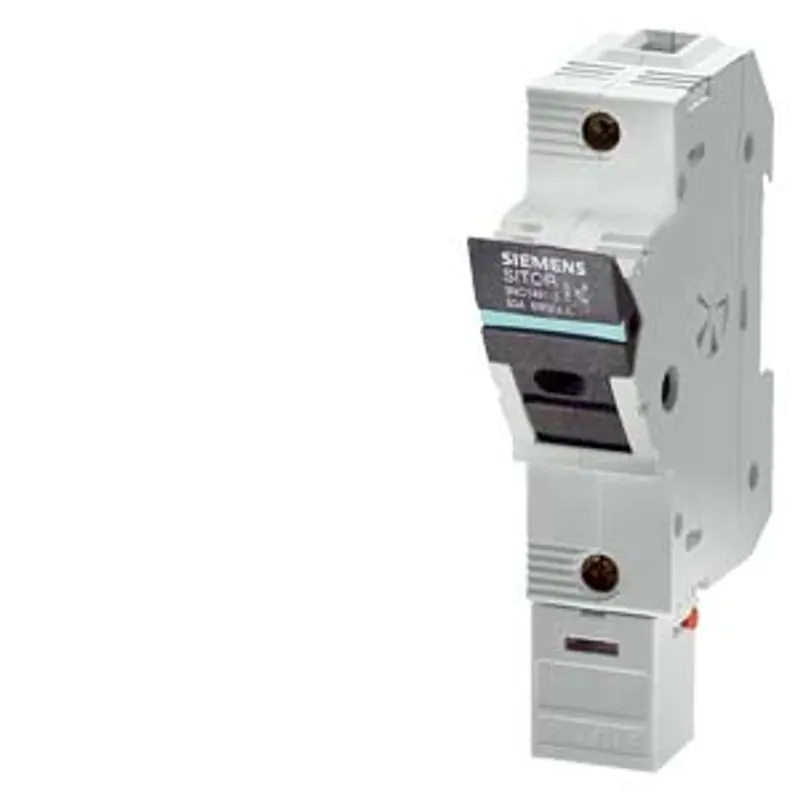

Siemens 3NC1491-5
SITOR fuse-disconnector with signaling switch Contact of the micro-switch: flat plug-contact A2,8 x 0
- MPN
- 3NC1491-5
- Category
- Cylindrical Fuse Design
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3NC1491-5?
SITOR fuse-disconnector with signaling switch Contact of the micro-switch: flat plug-contact A2,8 x 0,5 mm in accordance with DIN 46244
Specifications
Model
| product brand name | SENTRON |
| product designation | SITOR fuse switch disconnector |
| design of the safety monitoring | electromechanical, contact: flat connector A2.8 x 0.5 mm according to DIN 46244 |
| design of the actuating element | swivel knob |
General technical data
| number of poles | 1 |
| size of fuse link | 14x51 |
| utilization category | According to IEC 60947-3; AC 22B/50 A/400 V; AC22B/20 A/690 V |
| size of the fuse link | 14 x 51 mm |
| operating voltage — at AC rated value maximum | 690 V |
| operating voltage — at DC rated value maximum | 800 V |
Protection class
| protection class IP on the front | IP20 |
Main circuit
| operational current rated value | 50 A |
Suitability
| suitability for use main switch | No |
| suitability for use switch disconnector | Yes |
| suitability for use EMERGENCY OFF switch | No |
Product function
| product function fuse monitoring | Yes |
Short circuit
| conditional short-circuit current (Iq) rated value | 100 kA |
Connections
| connectable conductor cross-section solid — minimum | 1.5 mm² |
| connectable conductor cross-section solid — maximum | 35 mm² |
| type of electrical connection for main current circuit | screw-type terminals |
Mechanical Design
| height | 122 mm |
| depth | 69 mm |
| fastening method — floor mounting | No |
| fastening method — rail mounting | No |
| Net Weight | 121 g |
