Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current at AC in hot operating state per pole | design of the fuse link — for short-circuit protection of the main circuit required | width | depth | Net Weight |
|---|---|---|---|---|---|

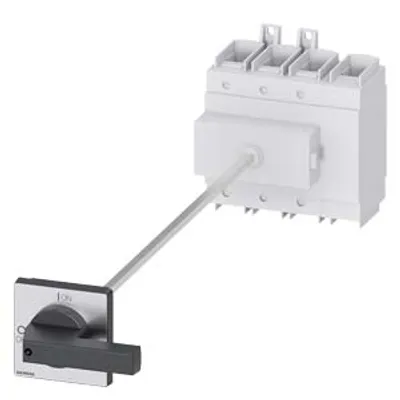

| 3LD2418-1TL11 | 13.33 W | fuse gL/gG: 250 A | 112 mm | 94 mm | 3.264 kg |

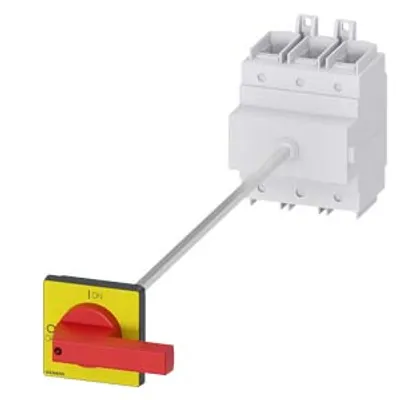

| 3LD2418-0TK13 | 13.33 W | fuse gL/gG: 250 A | 112 mm | 94 mm | 2.769 kg |

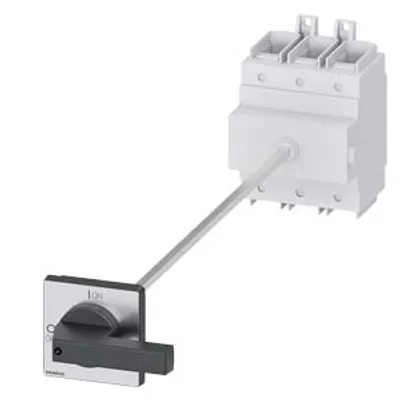

| 3LD2418-0TK11 | 13.33 W | fuse gL/gG: 250 A | 112 mm | 94 mm | 2.7 kg |

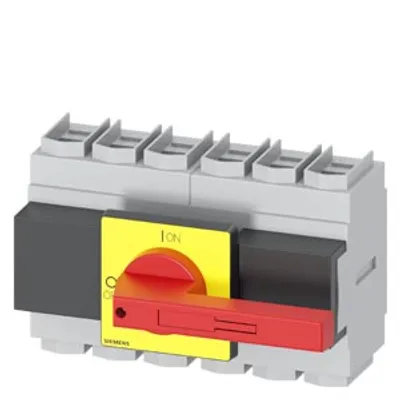

| 3LD2405-3VK13 | 13.33 W | fuse gL/gG: 250 A | 112 mm | 94 mm | 3.966 kg |

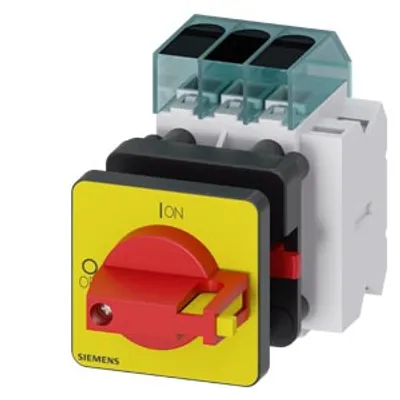

| 3LD3450-1TK13 | 1.54 W | fuse gL/gG: 63 A | 47 mm | 114 mm | 218 g |

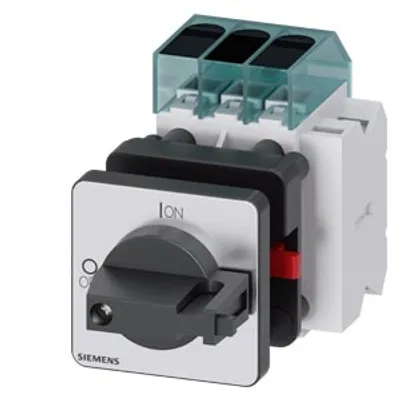

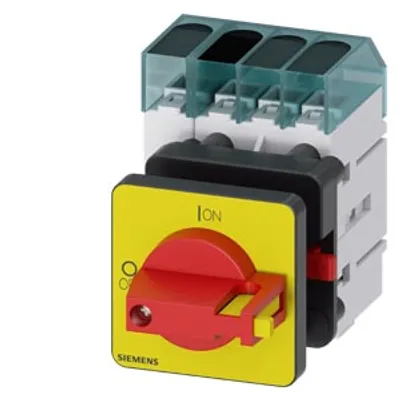

| 3LD3450-1TK11 | 1.54 W | fuse gL/gG: 63 A | 47 mm | 114 mm | 219 g |
| 3LD3450-0TL13 | 1.54 W | fuse gL/gG: 63 A | 49 mm | 114 mm | 244 g |

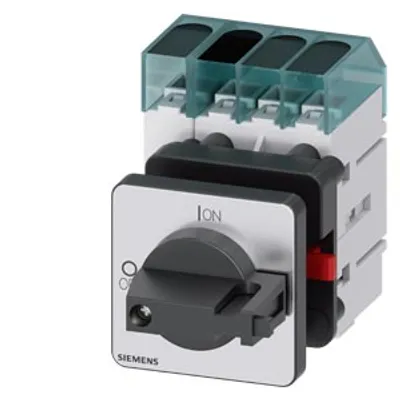

| 3LD3450-0TL11 | 1.54 W | fuse gL/gG: 63 A | 49 mm | 114 mm | 239 g |
| 3LD3450-0TK13 | 1.54 W | fuse gL/gG: 63 A | 36 mm | 114 mm | 205 g |
| 3LD3450-0TK11 | 1.54 W | fuse gL/gG: 63 A | 36 mm | 114 mm | 206 g |
| 3LD3448-1TL53 | 1.54 W | fuse gL/gG: 63 A | 60 mm | 380 mm | 403 g |

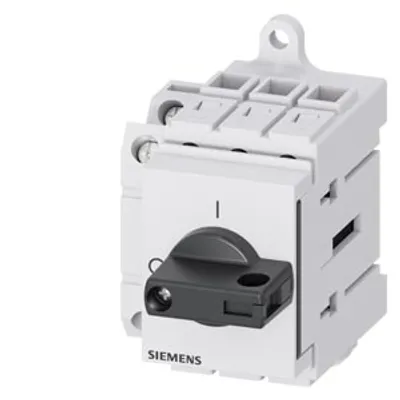

| 3LD3230-1TK11 | 1.32 W | fuse gL/gG: 40 A | 47 mm | 77 mm | 175 g |

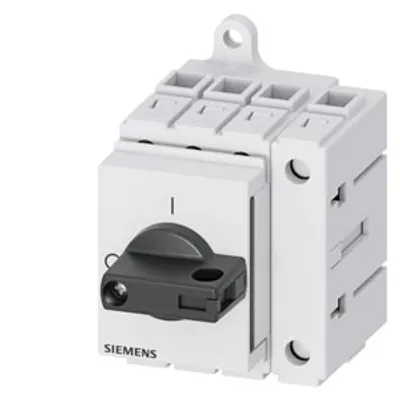

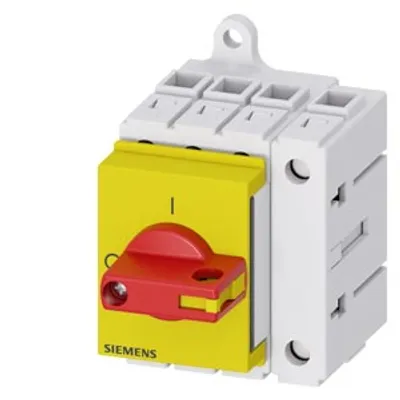

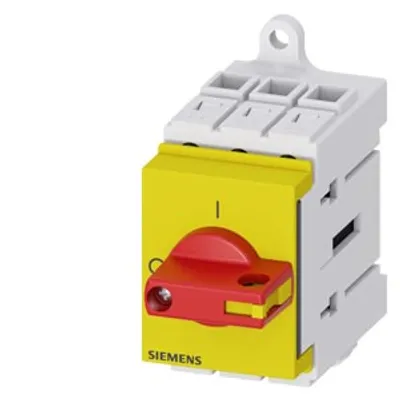

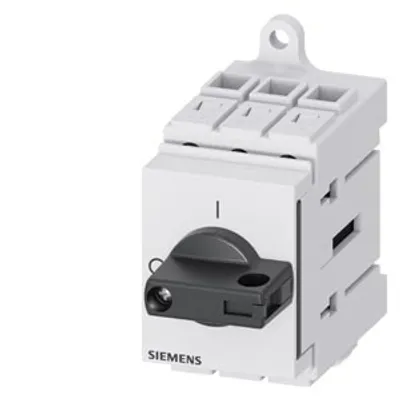

| 3LD3230-0TL13 | 1.32 W | fuse gL/gG: 40 A | 49 mm | 77 mm | 187 g |
| 3LD3230-0TL11 | 1.32 W | fuse gL/gG: 40 A | 49 mm | 77 mm | 188 g |
| 3LD3230-0TK13 | 1.32 W | fuse gL/gG: 40 A | 36 mm | 77 mm | 153 g |
| 3LD3230-0TK11 | 1.32 W | fuse gL/gG: 40 A | 36 mm | 77 mm | 154 g |

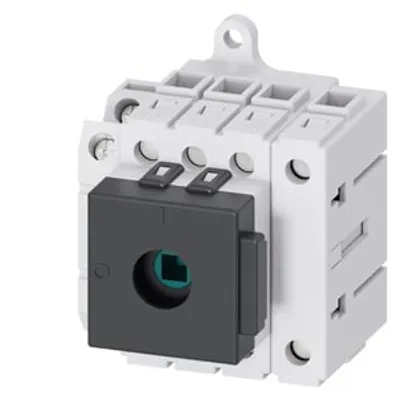

| 3LD3210-1TL05 | 1.32 W | fuse gL/gG: 25 A | 60 mm | 64 mm | 202 g |

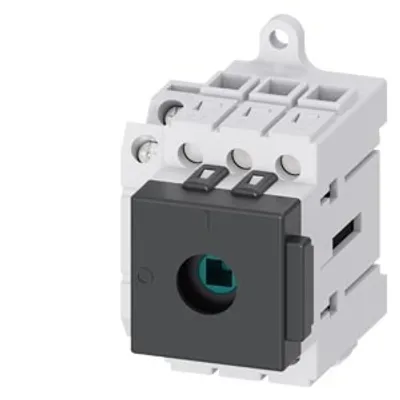

| 3LD3210-1TK05 | 1.32 W | fuse gL/gG: 25 A | 47 mm | 64 mm | 167 g |

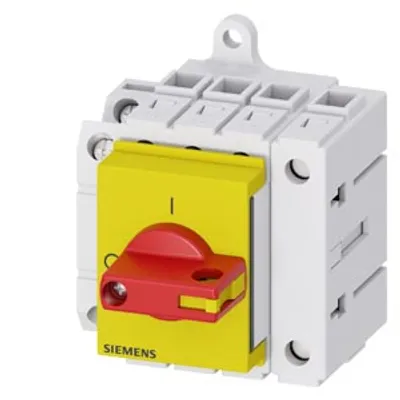

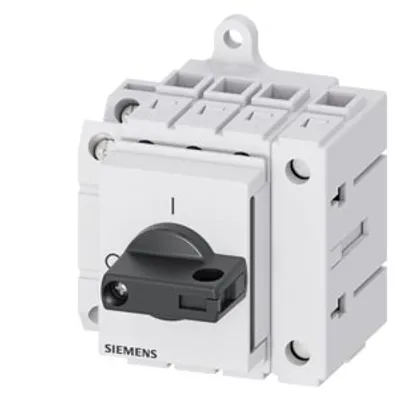

| 3LD3030-1TL13 | 0.33 W | fuse gL/gG: 20 A | 60 mm | 77 mm | 206 g |
| 3LD3030-1TL11 | 0.33 W | fuse gL/gG: 20 A | 60 mm | 77 mm | 207 g |

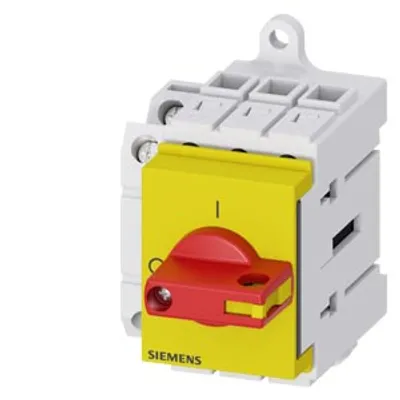

| 3LD3030-1TK13 | 0.33 W | fuse gL/gG: 20 A | 47 mm | 77 mm | 171 g |
| 3LD3030-1TK11 | 0.33 W | fuse gL/gG: 20 A | 47 mm | 77 mm | 172 g |

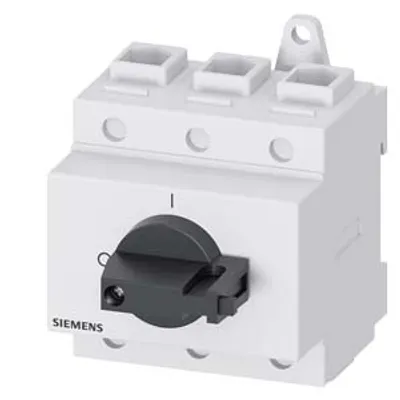

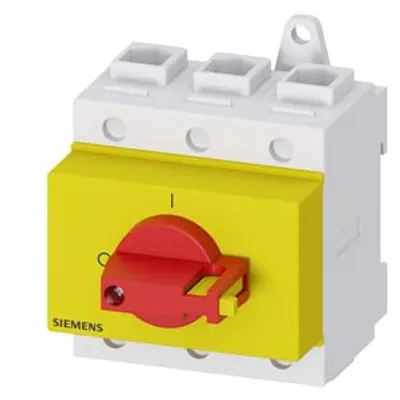

| 3LD2830-0TK13 | 4.33 W | fuse gL/gG: 125 A | 71 mm | 97 mm | 376 g |
| 3LD2830-0TK11 | 4.33 W | fuse gL/gG: 125 A | 71 mm | 97 mm | 374 g |
Common to all listed parts
| product designation | Switch disconnector |
| display version for switch position indicator manual operation | 1 ON - 0 OFF |
| type of the driving mechanism motor drive | No |
| mechanical service life (operating cycles) typical | 100 000 |
| electrical endurance (operating cycles) — at AC-23 A at 690 V | 6 000 |
| operating frequency maximum | 50 1/h |
| degree of pollution | 3 |
| insulation voltage rated value | 690 V |
