Basic Devices Parts
Compare Basic Devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | I2t value — of the fuse at 415 V maximum permissible | I2t value — with closed switch for combination switch + fuse at 415 V maximum | power loss [W] — with conventional rated thermal current per device | operational current rated value | Net Weight |
|---|---|---|---|---|---|

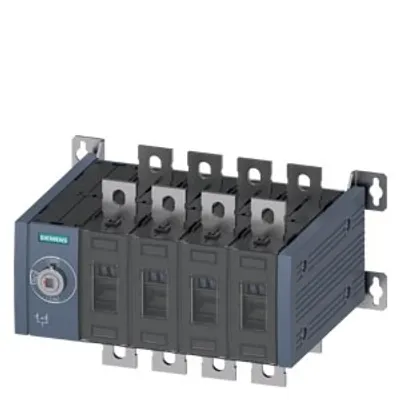

| 3KC0442-0PE00-0AA0 | 2 150 005 A²·s | 1 165 000 A²·s | 68 W | 400 A | 7.841 kg |
| 3KC0440-0PE00-0AA0 | 2 150 005 A²·s | 1 165 000 A²·s | 40 W | 315 A | 7.902 kg |

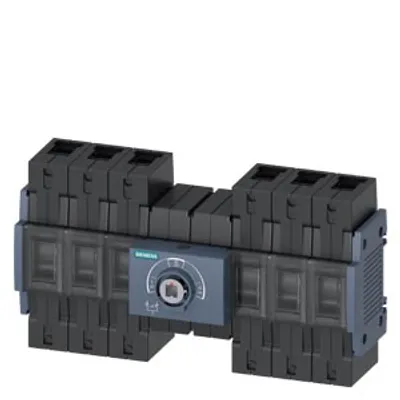

| 3KC0328-2NE00-0AA0 | 223 005 A²·s | 135 600 A²·s | 6 W | 80 A | 2.189 kg |

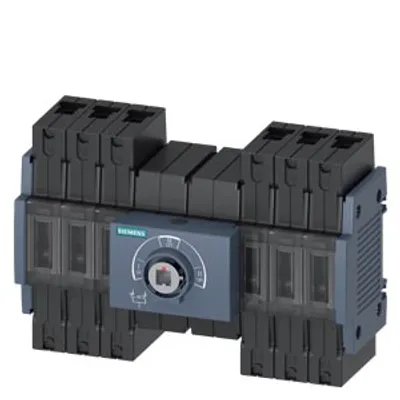

| 3KC0326-2ME00-0AA0 | 26 505 A²·s | 13 300 A²·s | 6 W | 63 A | 1.565 kg |
| 3KC0322-2ME00-0AA0 | 26 505 A²·s | 13 300 A²·s | 1.8 W | 32 A | 1.567 kg |
| 3KC0316-2ME00-0AA0 | 26 505 A²·s | 13 300 A²·s | 0.6 W | 16 A | 1.536 kg |

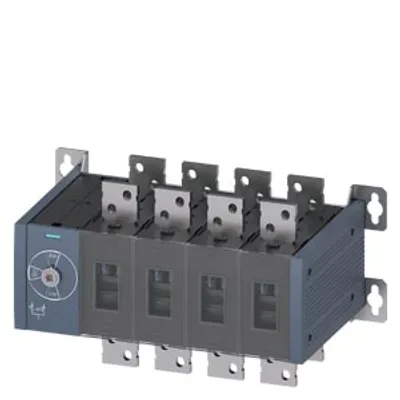

| 3KC0452-0RE00-0AA0 | 34 800 005 A²·s | 25 960 000 A²·s | 280 W | 1 250 A | 52.5 kg |
| 3KC6434-2TA20-0TA3 | 109 000 A²·s | 109 000 A²·s | 34.8 W | 160 A | 4.287 kg |
| 3KC6432-2TA20-0TA3 | 61 300 A²·s | 61 300 A²·s | 20.8 W | 125 A | 4.259 kg |
| 3KC6430-2TA20-0TA3 | 61 300 A²·s | 61 300 A²·s | 16 W | 100 A | 4.31 kg |
| 3KC6428-2TA20-0TA3 | 61 300 A²·s | 61 300 A²·s | 8.8 W | 80 A | 4.25 kg |

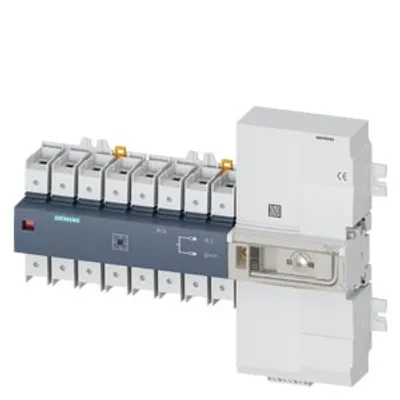

| 3KC6426-2TA20-0TA3 | 61 300 A²·s | 61 300 A²·s | 4.8 W | 63 A | 4.252 kg |
Common to all listed parts
| product designation | transfer switching equipment |
| type of device | fixed mounting |
| degree of pollution | 3 |
| protection class IP — with closed switch with cover or cable lug cover | IP20 |
| number of connected NC contacts for auxiliary contacts | 0 |
| number of connected NO contacts for auxiliary contacts | 0 |
| number of connected CO contacts for auxiliary contacts | 0 |
| suitability for use main switch | Yes |
