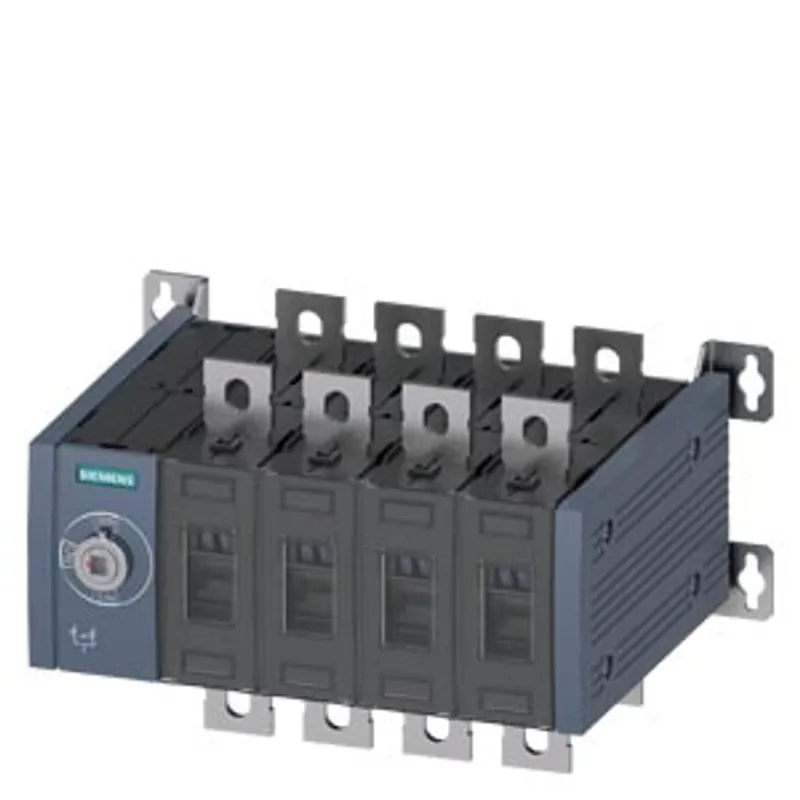

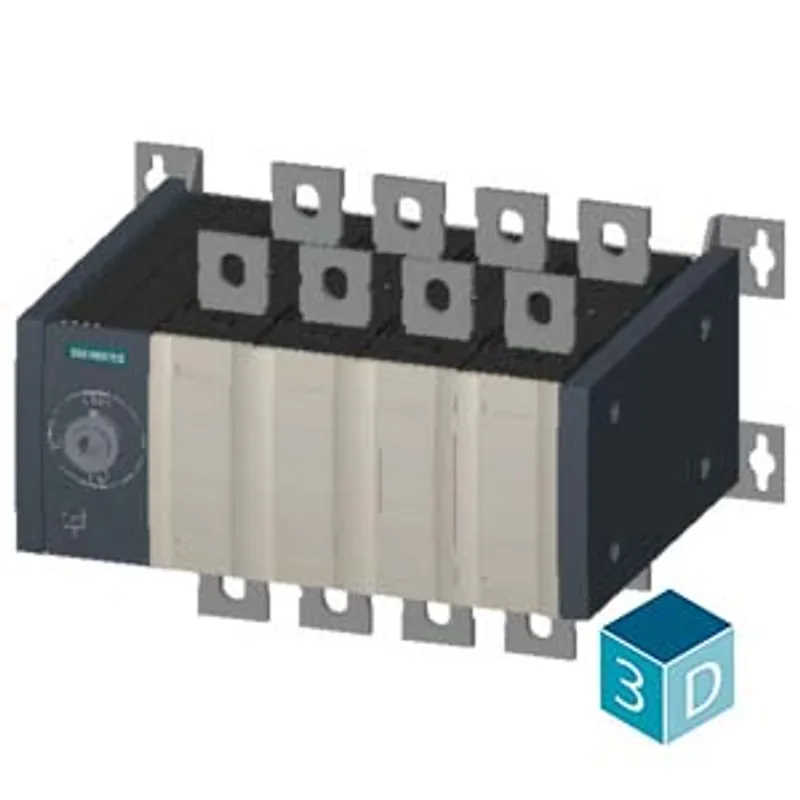

Siemens 3KC0442-0PE00-0AA0
SENTRON, transfer switching equipment 3KC, manually operated, MTSE, size: 3, 4-pole, Iu: 400 A, Ue AC: 415 V
- MPN
- 3KC0442-0PE00-0AA0
- Category
- Basic Devices
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 3KC0442-0PE00-0AA0?
SENTRON, transfer switching equipment 3KC, manually operated, MTSE, size: 3, 4-pole, Iu: 400 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 315 A, Ie at AC-23 A at 690 V: 315 A, screw mounting, front operating mechanism, at the left end, without handle, busbar connection
Specifications
Model
| product brand name | SENTRON |
| product designation | transfer switching equipment |
| design of the product | manually operated |
| display version for switch position indicator door-coupling rotary operating mechanism | I ON- O OFF- II ON |
| design of the actuating element | Without handle |
| design of handle | without |
| type of the driving mechanism | Front operating mechanism |
| type of the driving mechanism motor drive | No |
General technical data
| number of poles | 4 |
| type of device | fixed mounting |
| size of switch disconnector | 3 |
| mechanical service life (operating cycles) for function sequence O-I-O typical | 10 000 |
| I2t value — with closed switch for combination switch + fuse at 500 V maximum | 1 165 000 A²·s |
| I2t value — with closed switch at 690 V for combination switch + gG fuse maximum | 1 157 500 A²·s |
| I2t value — with closed switch at 690 V for combination switch + aM fuse maximum | 1 267 900 A²·s |
| I2t value — of the fuse at 415 V maximum permissible | 2 150 005 A²·s |
| I2t value — of the fuse at 500 V maximum permissible | 2 150 005 A²·s |
| I2t value — of the gG fuse at 690 V maximum permissible | 1 650 005 A²·s |
| I2t value — of the aM fuse at 690 V maximum permissible | 1 500 000 A²·s |
| I2t value — with closed switch for combination switch + fuse at 415 V maximum | 1 165 000 A²·s |
| position of the switch operating mechanism | at the left end |
| overvoltage category | IV |
| degree of pollution | 3 |
| insulation voltage — rated value | 1 000 V |
Protection class
| protection class IP | IP00 |
| protection class IP — with closed switch with cover or cable lug cover | IP20 |
| protection class IP — on the front | IP00 |
Dissipation
| power loss [W] — with conventional rated thermal current per device | 68 W |
Main circuit
| operating power — at AC-23 A at 400 V at 50/60 Hz rated value | 220 kW |
| operating power — at AC-23 A at 500 V rated value | 250 kW |
| operational current rated value | 400 A |
Auxiliary circuit
| number of connected NC contacts for auxiliary contacts | 0 |
| number of connected NO contacts for auxiliary contacts | 0 |
| number of connected CO contacts for auxiliary contacts | 0 |
| number of CO contacts for auxiliary contacts | 0 |
| number of NC contacts for auxiliary contacts | 12 |
| number of NO contacts for auxiliary contacts | 12 |
| suitability for use main switch | Yes |
| suitability for use switch disconnector | Yes |
| suitability for use EMERGENCY OFF switch | Yes |
| suitability for use maintenance/repair switch | Yes |
| product feature interlock | No |
| product extension auxiliary switch | Yes |
| product extension optional motor drive | No |
| product extension optional voltage trigger | No |
Short circuit
| short-circuit current making capacity (Icm) for switch disconnector — at 415 V AC without fuse link according to IEC 60947-6-1 rated value minimum | 36 kA |
| short-circuit current making capacity (Icm) for switch disconnector — at 690 V AC without fuse link according to IEC 60947-3 rated value minimum | 26 kA |
| conditional short-circuit current with line-side fuse protection — at 415 V by gG fuse according to IEC 60947-6-1 rated value | 65 kA |
| conditional short-circuit current with line-side fuse protection — at 415 V by gG fuse rated value | 65 kA |
| conditional short-circuit current with line-side fuse protection — at 500 V by gG fuse according to IEC 60947-3 rated value | 65 kA |
| conditional short-circuit current with line-side fuse protection — at 690 V by gG fuse according to IEC 60947-3 rated value | 35 kA |
Connections
| type of connectable conductor cross-sections for aluminum conductor stranded with lug | 1x (25 ... 240 mm²), 2x (25 ... 120 mm²) |
| type of connectable conductor cross-sections — with combination of Al conductor+switch | 315 A / 240 mm² |
| type of connectable conductor cross-sections — for copper busbar | 1x (30x10 mm²) |
| type of connectable conductor cross-sections for copper conductor — stranded with lug according to DIN 46234 | 1x (6 ... 240 mm²), 2x (6 ... 150 mm²) |
| type of connectable conductor cross-sections for copper conductor — stranded with lug according to DIN 46235 | 1x (16 ... 185 mm²), 2x (16 ...150 mm²) |
| type of electrical connection — for main current circuit | busbar connection |

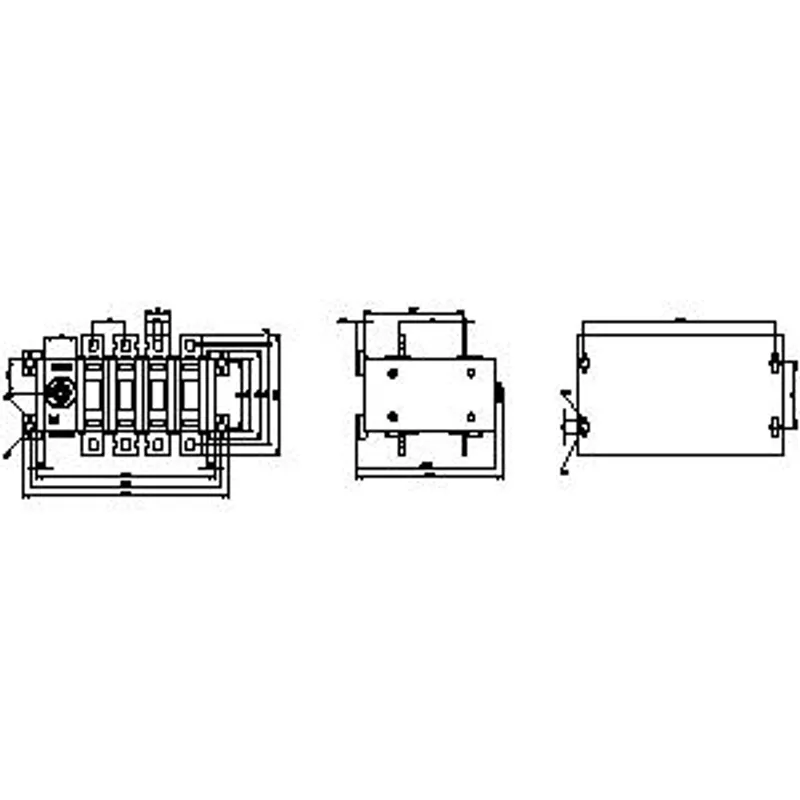

Mechanical Design
| height | 164 mm |
| width | 279 mm |
| depth | 197.2 mm |
| fastening method | screw fixing |
| fastening method — 4-hole front mounting | No |
| fastening method — front mounting with central attachment | No |
| fastening method — rail mounting | No |
| Net Weight | 7.841 kg |
Environmental conditions
| ambient temperature during operation — minimum | -25 °C |
| ambient temperature during operation — maximum | 70 °C |
| ambient temperature during storage — minimum | -50 °C |
| ambient temperature during storage — maximum | 80 °C |
