Basic Devices Parts
Compare Basic Devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] — with conventional rated thermal current per device | operational current rated value | type of connectable conductor cross-sections — for copper busbar | width | Net Weight |
|---|---|---|---|---|---|

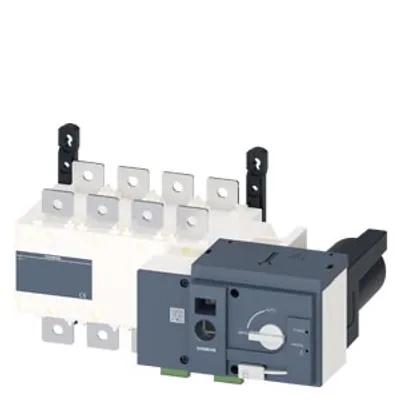

| 3KC4442-0DA21-0AA3 | 60.4 W | 400 A | 1x32x8 | 378 mm | 10.725 kg |
| 3KC8452-0GA22-0GA3 | 373.2 W | 1 250 A | 2x60x5 | 584 mm | 45.5 kg |
| 3KC8450-0FA22-0GA3 | 187.6 W | 1 000 A | 2x50x5 | 584 mm | 40 kg |

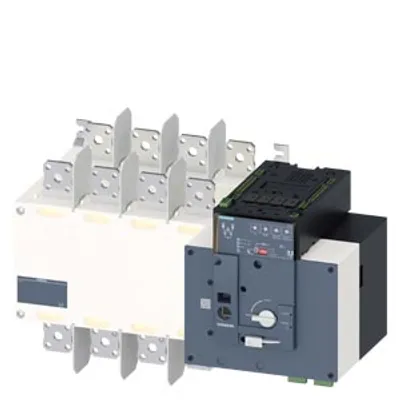

| 3KC8448-0FA22-0GA3 | 166.8 W | 800 A | 2x50x5 | 584 mm | 45 kg |

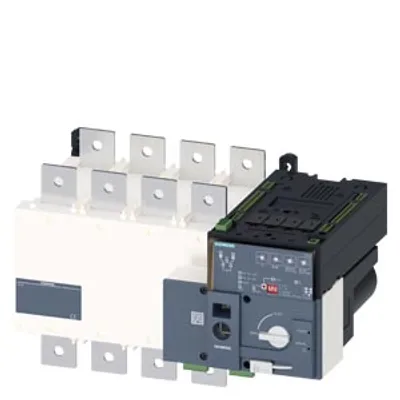

| 3KC8446-0EA22-0GA3 | 129.6 W | 630 A | 2x40x5 | 437 mm | 19.92 kg |
| 3KC8358-0JA22-0GA3 | 765 W | 2 500 A | 2x100x10 | 596 mm | 66 kg |

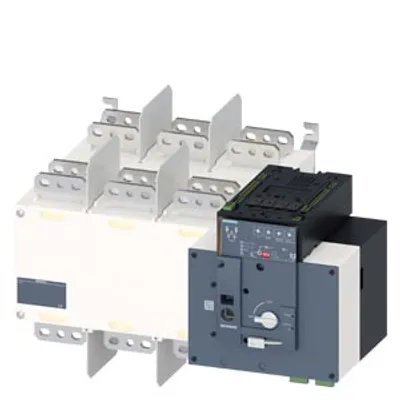

| 3KC8356-0JA22-0GA3 | 534 W | 2 000 A | 3x100x5 | 596 mm | 67 kg |

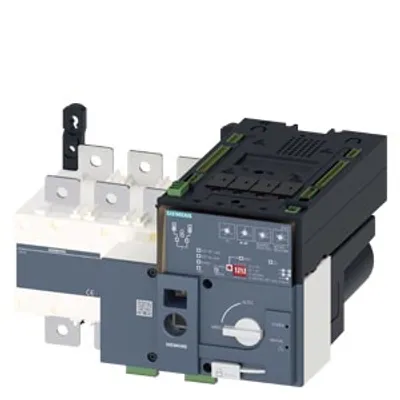

| 3KC8342-0DA22-0GA3 | 45.3 W | 400 A | 1x32x8 | 328 mm | 11.296 kg |

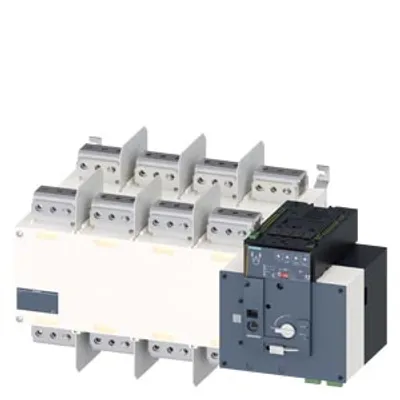

| 3KC8460-0JA22-0GA3 | 1 320 W | 3 200 A | 3x100x10 | 716 mm | 89 kg |

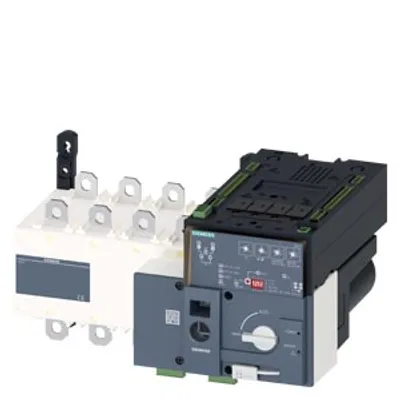

| 3KC8438-0CA22-0GA3 | 23.6 W | 250 A | 1x32x5 | 378 mm | 12.033 kg |

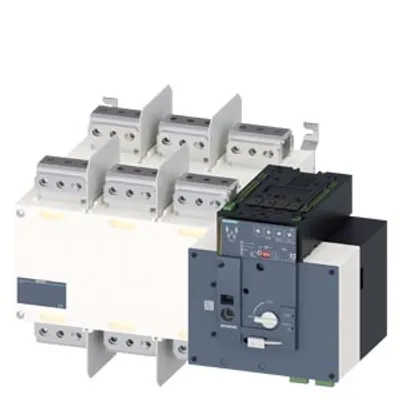

| 3KC8360-0JA22-0GA3 | 990 W | 3 200 A | 3x100x10 | 596 mm | 76.5 kg |

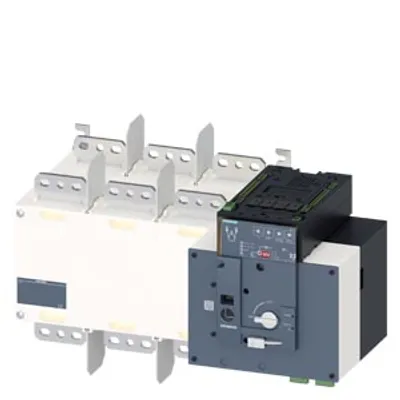

| 3KC8354-0HA22-0GA3 | 366 W | 1 600 A | 2x100x5 | 596 mm | 45.5 kg |

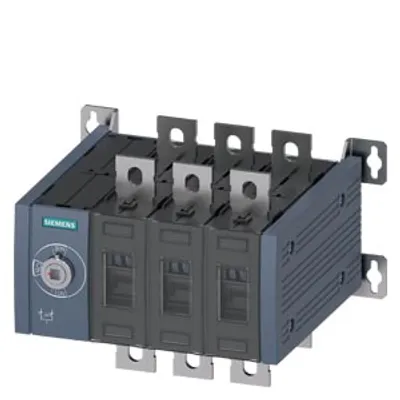

| 3KC0342-0PE00-0AA0 | 51 W | 400 A | 1x (30x10 mm²) | 235 mm | 6.671 kg |
| 3KC0340-0PE00-0AA0 | 30 W | 315 A | 1x (30x10 mm²) | 235 mm | 6.652 kg |
| 3KC0338-0PE00-0AA0 | 21 W | 250 A | 1x (30x10 mm²) | 235 mm | 6.612 kg |

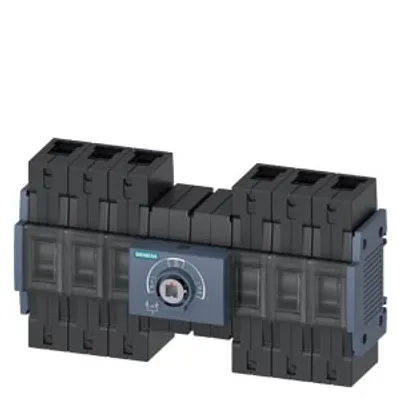

| 3KC0332-2NE00-0AA0 | 13.5 W | 125 A | 1x (3x14 mm²) | 255.6 mm | 2.238 kg |

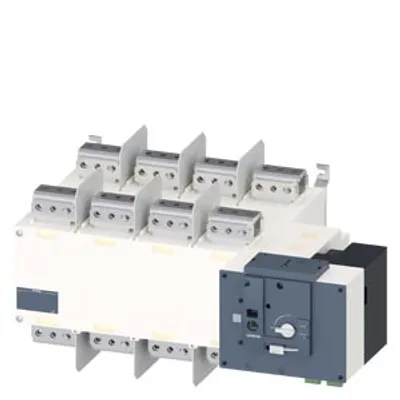

| 3KC4460-0JA21-0AA3 | 1 320 W | 3 200 A | 3x100x10 | 716 mm | 91.3 kg |

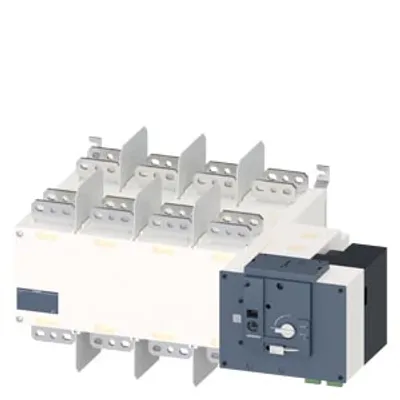

| 3KC4458-0JA21-0AA3 | 1 020 W | 2 500 A | 2x100x10 | 716 mm | 75.5 kg |

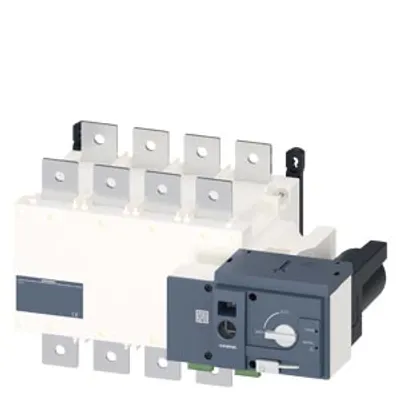

| 3KC4446-0EA21-0AA3 | 129.6 W | 630 A | 2x40x5 | 437 mm | 17.94 kg |

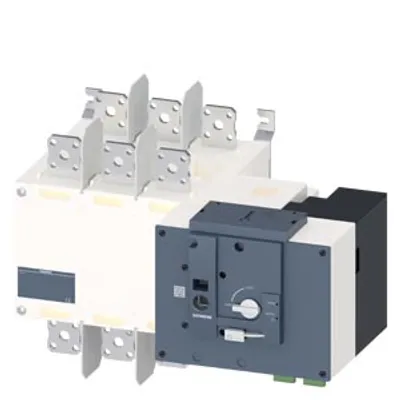

| 3KC4348-0FA21-0AA3 | 125.1 W | 800 A | 2x50x5 | 504 mm | 40.5 kg |

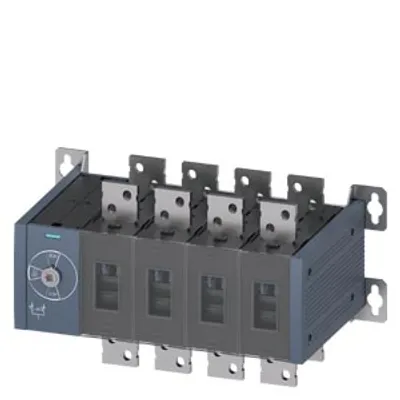

| 3KC0450-0RE00-0AA0 | 188 W | 1 000 A | 2x (60 x10 mm²) | 565 mm | 53.5 kg |

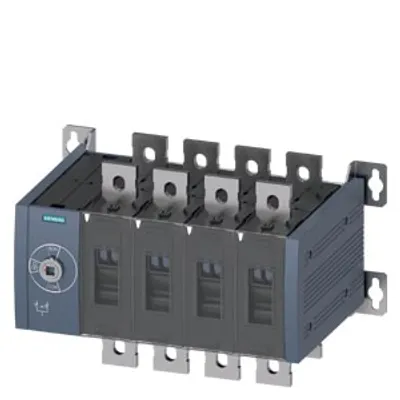

| 3KC0448-0QE00-0AA0 | 140 W | 800 A | 1x (40x10 mm²), 2x (40x5 mm²) | 379 mm | 19.36 kg |
| 3KC0446-0QE00-0AA0 | 88 W | 630 A | 1x (40x10 mm²), 2x (40x5 mm²) | 379 mm | 19.28 kg |
| 3KC0444-0QE00-0AA0 | 60 W | 500 A | 1x (40x10 mm²), 2x (40x5 mm²) | 379 mm | 19.36 kg |
Common to all listed parts
| product designation | transfer switching equipment |
| type of device | fixed mounting |
| degree of pollution | 3 |
| insulation voltage — rated value | 1 000 V |
| protection class IP — with closed switch with cover or cable lug cover | IP20 |
| number of connected NC contacts for auxiliary contacts | 0 |
| suitability for use main switch | Yes |
| suitability for use switch disconnector | Yes |
