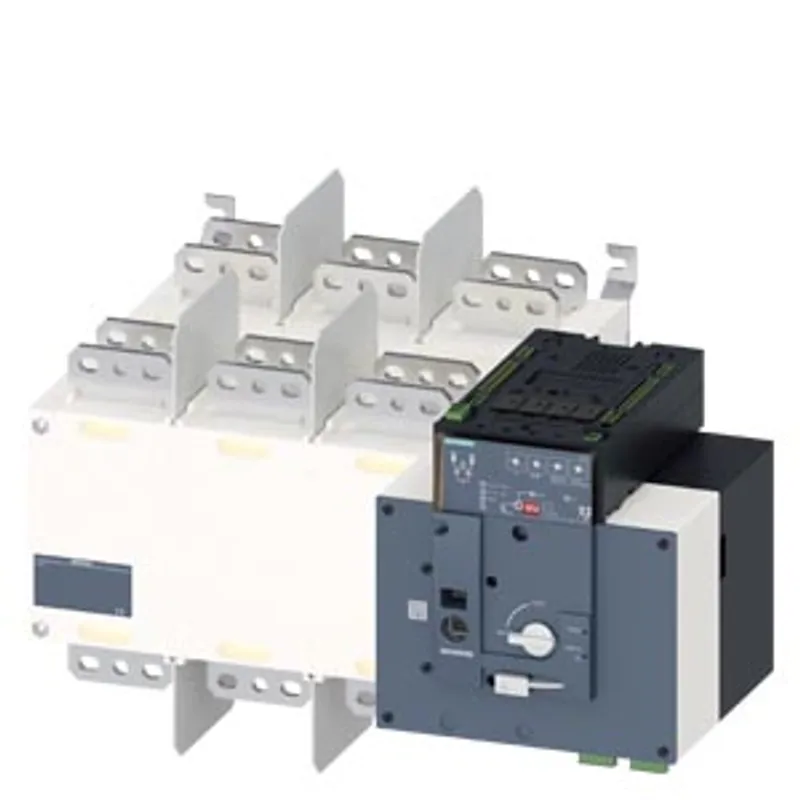

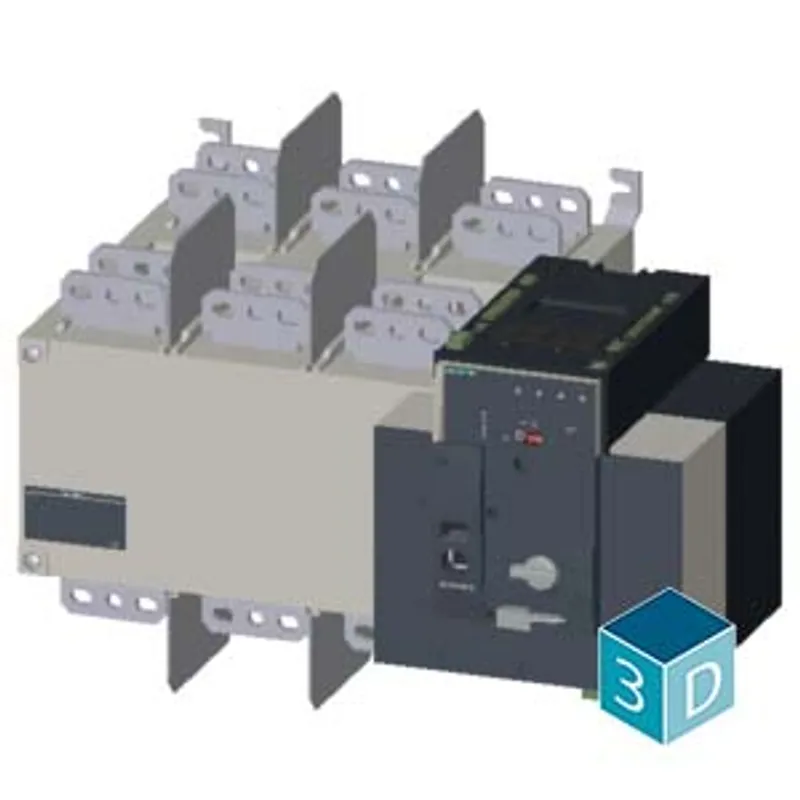

Siemens 3KC8358-0JA22-0GA3
SENTRON, ATE, transfer switching equipment 3KC, automatically, ATSE, 3- pole, Iu: 2500 A, Ue AC: 415 V
- MPN
- 3KC8358-0JA22-0GA3
- Category
- Basic Devices
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 3KC8358-0JA22-0GA3?
SENTRON, ATE, transfer switching equipment 3KC, automatically, ATSE, 3- pole, Iu: 2500 A, Ue AC: 415 V, Ie at AC-33 B at 415 V: 1250 A, screw mounting, motorized operating mechanism, at the right end, long handle, busbar connection
Specifications
Model
| product brand name | SENTRON |
| product category | ATE |
| product designation | transfer switching equipment |
| design of the product | automatic |
| display version for switch position indicator manual operation | I - O - II |
| design of the actuating element | Long rotary knob |
| design of handle | Handle |
| type of the driving mechanism | motorized operating mechanism |
| type of the driving mechanism motor drive | Yes |
General technical data
| number of poles | 3 |
| type of device | fixed mounting |
| mechanical service life (operating cycles) for function sequence O-I-O typical | 1 500 |
| position of the switch operating mechanism | at the right end |
| overvoltage category | III |
| degree of pollution | 3 |
| insulation voltage — rated value | 1 000 V |
Supply voltage
| supply voltage at AC — minimum | 166 V |
| supply voltage at AC — maximum | 332 V |
Protection class
| protection class IP | IP00 |
| protection class IP — with closed switch with cover or cable lug cover | IP20 |
| protection class IP — on the front | IP00 |
Dissipation
| power loss [W] — with conventional rated thermal current per device | 765 W |
Main circuit
| operating frequency rated value — minimum | 45 Hz |
| operating frequency rated value — maximum | 65 Hz |
| operational current rated value | 2 500 A |
Auxiliary circuit
| number of connected NC contacts for auxiliary contacts | 0 |
| number of connected NO contacts for auxiliary contacts | 3 |
| number of connected CO contacts for auxiliary contacts | 4 |
| number of CO contacts for auxiliary contacts | 0 |
| number of NC contacts for auxiliary contacts | 0 |
| number of NO contacts for auxiliary contacts | 0 |
| suitability for use main switch | Yes |
| suitability for use switch disconnector | Yes |
| suitability for use EMERGENCY OFF switch | No |
| suitability for use maintenance/repair switch | Yes |
| product feature interlock | Yes |
| product extension auxiliary switch | No |
| product extension optional motor drive | No |
| product extension optional voltage trigger | No |
Short circuit
| short-circuit current making capacity (Icm) for switch disconnector — at 415 V AC without fuse link according to IEC 60947-3 rated value minimum | 105 kA |
| short-circuit current making capacity (Icm) for switch disconnector — at 415 V AC without fuse link according to IEC 60947-6-1 rated value minimum | 105 kA |
| input current at digital input with signal <0> maximum | 2.1 mA |
| number of digital inputs | 11 |
| number of digital inputs — design of the switching input | Connected with control terminal |
| relay design | 2 relays: 2NO, 2A 250 VAC or 2A 24 VDC; 1 relay: 1CO, 2A 250 VAC or 2A 24 VDC |
| pulse duration minimum | 0.06 s |
| input delay time | 0.046 s |
| number of monitored phases | 3 |
Connections
| type of connectable conductor cross-sections — for copper busbar | 2x100x10 |
| type of electrical connection — of the inputs and outputs | Removable/insertable |
| type of electrical connection — for main current circuit | busbar connection |
Mechanical Design
| height | 380 mm |
| width | 596 mm |
| depth | 569 mm |
| fastening method | screw fixing |
| fastening method — 4-hole front mounting | No |
| fastening method — front mounting with central attachment | No |
| fastening method — rail mounting | No |
| Net Weight | 66 kg |
Environmental conditions
| ambient temperature during operation — minimum | -20 °C |
| ambient temperature during operation — maximum | 70 °C |
| ambient temperature during storage — minimum | -40 °C |
| ambient temperature during storage — maximum | 70 °C |
