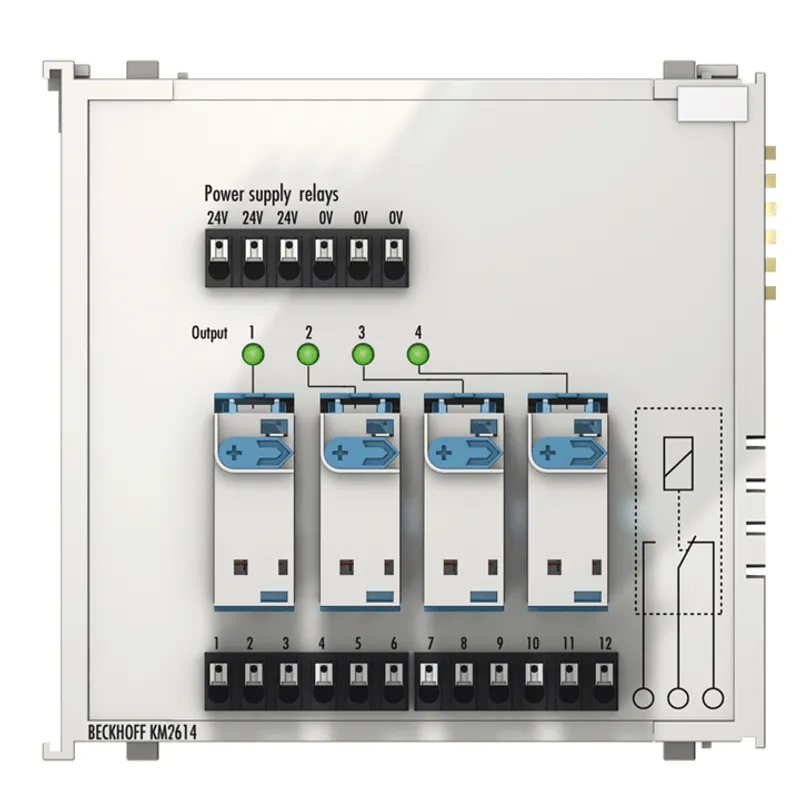

Beckhoff KM2614

Bus Terminal module, 4-channel relay output, 230 V AC, 16 A, manual/autom. operation

MPN: KM2614
Category: KL2xxx | Digital output

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff KM2614?

The KM2614 terminal module combines four pluggable power relays in one fieldbus module. The high switching capacity of 16 A at 230 V AC enables direct mains connection of consumers with high current consumption. The relays are positioned at the top and

Specifications

Number of outputs	4 x change-over
Nominal voltage	230 V AC (max. switching voltage 250 V AC/30 V DC)
Nominal switching current	16 A
Load type	ohmic, inductive, lamp load
Max. output current	16 A
Switching current	16 A AC/12 A DC at 30 V DC
Minimum permitted load	5 mA at 10 V
Lamp test, electronic ballast	max. 25 A starting current
Electrical isolation	1.5 kV (K-bus/field potential); 2.5 kV rated surge voltage, overvoltage category III
Current consumption power contacts	–
Current consumption K-bus	typ. 15 mA
Current consumption 24 V DC	50 mA for each active relay
Bit width in the process image	4 outputs
Operating cycles mech. (min.)	5 x 106
Operating cycles electr. (min.)	1 x 106 (1 A/250 V AC)
Configuration	no address or configuration setting
Special features	automatic/manual operation at the relay
Dimensions (W x H x D)	99 mm x 100 mm x 62 mm
Weight	approx. 250 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE
