Home / I/O / EtherCAT plug-in modules / EJ3xxx | Analog input

EJ3xxx | Analog input Parts

Beckhoff EJ3048 – EtherCAT plug-in module, 8-channel analog input, current, 0…20 mA, 12 bit, single-ended

Beckhoff

EtherCAT plug-in module, 8-channel analog input, current, 0…20 mA, 12 bit, single-ended

Beckhoff EJ3108 – EtherCAT plug-in module, 8-channel analog input, voltage, ±10 V, 16 bit

Beckhoff

EtherCAT plug-in module, 8-channel analog input, voltage, ±10 V, 16 bit

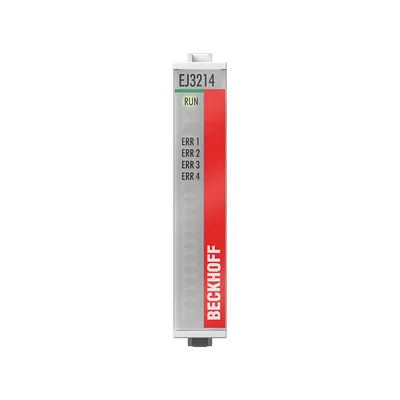

Beckhoff EJ3214 – EtherCAT plug-in module, 4-channel analog input, temperature, RTD (Pt100), 16 bit

Beckhoff

EtherCAT plug-in module, 4-channel analog input, temperature, RTD (Pt100), 16 bit

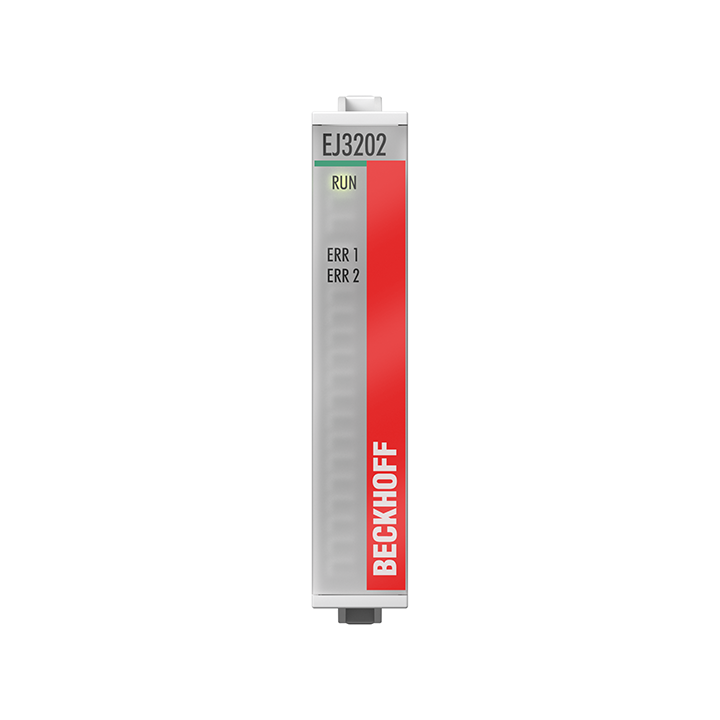

Beckhoff EJ3202 – EtherCAT plug-in module, 2-channel analog input, temperature, RTD (Pt100), 16 bit

Beckhoff

EtherCAT plug-in module, 2-channel analog input, temperature, RTD (Pt100), 16 bit

Beckhoff EJ3004 – EtherCAT plug-in module, 4-channel analog input, voltage, ±10 V, 12 bit, single-ended

Beckhoff

EtherCAT plug-in module, 4-channel analog input, voltage, ±10 V, 12 bit, single-ended

Beckhoff EJ3104 – EtherCAT plug-in module, 4-channel analog input, voltage, ±10 V, 16 bit, differential

Beckhoff

EtherCAT plug-in module, 4-channel analog input, voltage, ±10 V, 16 bit, differential

Beckhoff EJ3318 – EtherCAT plug-in module, 8-channel analog input, temperature, thermocouple, 16 bit

Beckhoff

EtherCAT plug-in module, 8-channel analog input, temperature, thermocouple, 16 bit

Beckhoff EJ3058 – EtherCAT plug-in module, 8-channel analog input, current, 4…20 mA, 12 bit, single-ended

Beckhoff

EtherCAT plug-in module, 8-channel analog input, current, 4…20 mA, 12 bit, single-ended

Beckhoff EJ3068 – EtherCAT plug-in module, 8-channel analog input, voltage, 0…10 V, 12 bit, single-ended

Beckhoff

EtherCAT plug-in module, 8-channel analog input, voltage, 0…10 V, 12 bit, single-ended

Beckhoff EJ3255 – EtherCAT plug-in module, 5-channel analog input, potentiometer, 300 Ω…50 kΩ, 16 bit

Beckhoff

EtherCAT plug-in module, 5-channel analog input, potentiometer, 300 Ω…50 kΩ, 16 bit

Beckhoff EJ3114-0010 – EtherCAT plug-in module, 4-channel analog input, current, ±20 mA, 16 bit, differential, high-precision

Beckhoff

EtherCAT plug-in module, 4-channel analog input, current, ±20 mA, 16 bit, differential, high-precision

Beckhoff EJ3124-0090 – EtherCAT plug-in module, 4-channel analog input, current, 4…20 mA, 16 bit, differential, TwinSAFE SC

Beckhoff

EtherCAT plug-in module, 4-channel analog input, current, 4…20 mA, 16 bit, differential, TwinSAFE SC

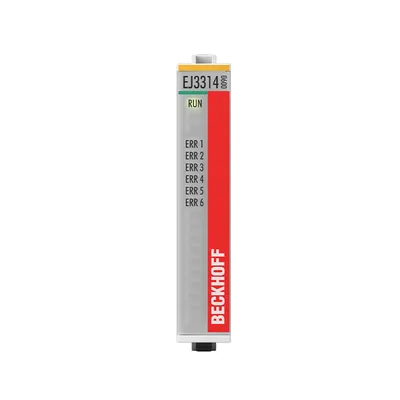

Beckhoff EJ3314-0090 – EtherCAT plug-in module, 4-channel analog input, temperature, thermocouple, 16 bit, TwinSAFE SC

Beckhoff

EtherCAT plug-in module, 4-channel analog input, temperature, thermocouple, 16 bit, TwinSAFE SC

Compare EJ3xxx | Analog input

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Distributed clocks	Current consumption E-bus	Storage temperature	Approvals/markings	Position of the coding pins
EJ3048	–	typ. 120 mA	-40…+85°C	CE, UL	1, 5
EJ3108	–	typ. 300 mA	-40…+85°C	CE, UL	1, 5
EJ3214	–	typ. 160 mA	-40…+85°C	CE, UL	1, 6
EJ3202	–	typ. 165 mA	-40…+85°C	CE, UL	1, 6
EJ3004	–	typ. 120 mA	-40…+85°C	CE, UL	1, 5
EJ3104	yes	typ. 175 mA	-40…+85°C	CE, UL	1, 5
EJ3318	–	190 mA	-40…+85°C	CE, UL	2, 7
EJ3058	–	typ. 130 mA	-40…+85°C	CE, UL	1, 5
EJ3068	–	typ. 130 mA	-40…+85°C	CE	1, 5
EJ3255	yes	typ. 80 mA	-40…+85°C	CE	1, 6
EJ3114-0010	yes	—	-25…+85°C	CE	1, 5
EJ3124-0090	yes	—	-25…+85°C	CE	1, 5
EJ3314-0090	–	—	-25…+85°C	CE	2, 7

Common to all listed parts

Electrical isolation	500 V (E-bus/field potential)
Weight	approx. 30 g
Relative humidity	95%, no condensation
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
Protect. rating/installation pos.	IP20/see documentation
Design form	EtherCAT I/O plug-in module
Material	polycarbonate
