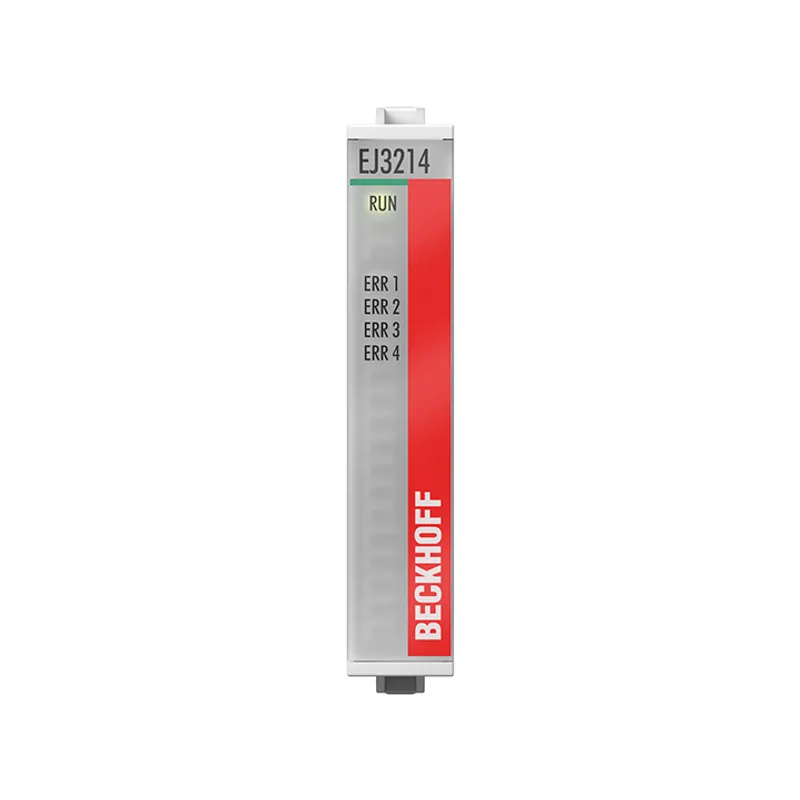

Beckhoff EJ3214
EtherCAT plug-in module, 4-channel analog input, temperature, RTD (Pt100), 16 bit
- MPN
- EJ3214
- Category
- EJ3xxx | Analog input
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff EJ3214?
The EJ3214 EtherCAT plug-in module allows four resistance sensors to be connected directly. The module's circuit can operate sensors using the 2- or 3-wire technique. A microprocessor handles linearization across the whole temperature range, which is
Specifications
Specifications
| Connection method | field wiring: application-specific wiring level on the signal distribution board, EJ plug-in module: 2 x 20-pin socket strip |
| Number of inputs | 4 |
| Measuring range | -200…+850°C (Pt sensors); -60…+250°C (Ni sensors) |
| Technology | temperature measurement (RTD) |
| Distributed clocks | – |
| Input filter limit frequency | typ. 1 kHz |
| Sensor types | Pt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni1000, resistance measurement (e.g. potentiometer, 10 Ω…1/4 kΩ), KTY sensors (types see documentation) |
| Conversion time | approx. 170 ms default setting |
| Resolution | 0.1°C per digit |
| Measurement error/uncertainty | ±0.5°C for Pt sensors, 4 x 3-wire connection |
| Electrical isolation | 500 V (E-bus/field potential) |
| Current consumption E-bus | typ. 160 mA |
| Special features | integrated digital filter, limit value monitoring, variable connection technology |
| Weight | approx. 30 g |
| Storage temperature | -40…+85°C |
| Operating temperature | -25…+60°C |
| Relative humidity | 95%, no condensation |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. rating/installation pos. | IP20/see documentation |
| Approvals/markings | CE, UL |
| Design form | EtherCAT I/O plug-in module |
| Material | polycarbonate |
| Installation | on signal distribution board |
| Mechanical coding | EJ plug-in module: signal-specific coding pins on the housing, signal distribution board: holes in the printed circuit board |
| Position of the coding pins | 1, 6 |
| Locking | latching lug in circuit board cut-out |
| Dimensions (W x H x D) | 12 mm x 66 mm x 55 mm |
EJ3214: frequently asked questions
When can EJ3214 be shipped?
EJ3214 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EJ3214 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EJ3214 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EJ3214, subject to availability and destination.
