Beckhoff EJ3004
EtherCAT plug-in module, 4-channel analog input, voltage, ±10 V, 12 bit, single-ended
- MPN
- EJ3004
- Category
- EJ3xxx | Analog input
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Beckhoff EJ3004?

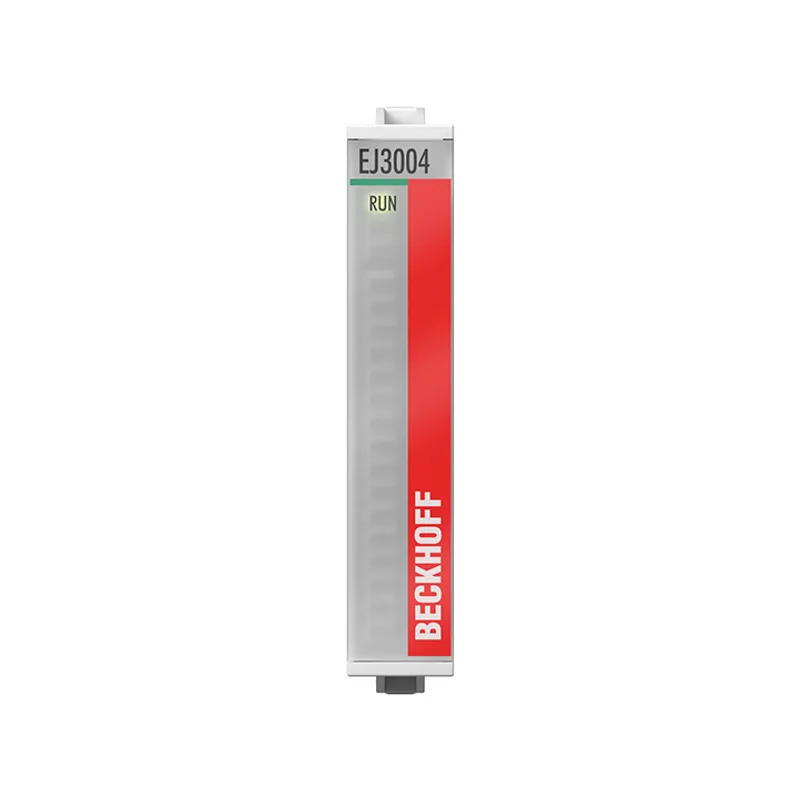

The EJ3004 EtherCAT plug-in module processes signals in the range between -10 and +10 V. The voltage is digitized to a resolution of 12 bits, and is transmitted, electrically isolated, to the higher-level automation device. The four single ended inputs
Specifications
Specifications
| Number of inputs | 4 (single-ended) |
| Power supply | via the E-bus |
| Technology | single-ended |
| Signal voltage | -10…+10 V |
| Distributed clocks | – |
| Internal resistance | > 130 kΩ |
| Input filter limit frequency | 1 kHz |
| Conversion time | typ. 0.625 ms (default setting: 50 Hz filter) |
| Resolution | 12 bit (16 bit presentation) |
| Measurement error/uncertainty | ±0.3% (relative to full scale value) |
| Electrical isolation | 500 V (E-bus/field potential) |
| Current consumption E-bus | typ. 120 mA |
| Special features | standard and compact process image, switchable measuring data representation, activatable FIR/IIR filters, limit value monitoring, overload display in the process data |
| Weight | approx. 30 g |
| Storage temperature | -40…+85°C |
| Operating temperature | -25…+60°C |
| Relative humidity | 95%, no condensation |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. rating/installation pos. | IP20/see documentation |
| Approvals/markings | CE, UL |
| Design form | EtherCAT I/O plug-in module |
| Material | polycarbonate |
| Installation | on signal distribution board |
| Mechanical coding | EJ plug-in module: signal-specific coding pins on the housing, signal distribution board: holes in the printed circuit board |
| Position of the coding pins | 1, 5 |
| Locking | latching lug in circuit board cut-out |
| Connection method | field wiring: application-specific wiring level on the signal distribution board, EJ plug-in module: 2 x 20-pin socket strip |
| Dimensions (W x H x D) | 12 mm x 66 mm x 55 mm |
