EL9xxx | System Parts






Overcurrent protection terminal, 24 V DC, 2-channel, 3 A/3 A, extended functionalities

Overcurrent protection terminal, 24 V DC, 2-channel, max. ∑ 10 A, adjustable, extended functionalities

Overcurrent protection terminal, 24 V DC, 2-channel, max. 4 A, adjustable, extended functionalities

Overcurrent protection terminal, 24 V DC, 2-channel, 4 A/4 A, extended functionalities

Overcurrent protection terminal, 24 V DC, 2-channel, 8 A/2 A, extended functionalities

Overcurrent protection terminal, 24 V DC, 2-channel, 6 A/4 A, extended functionalities







EtherCAT Terminal, power supply, 24 V DC, 2 x output 24 V DC, 0.2 A, electrically isolated

EtherCAT Terminal, power supply, 24 V DC, 2 x output 15 V DC, 0.3 A, electrically isolated


Compare EL9xxx | System
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Integrated fail-safe element | Current consumption E-bus | Weight | Operating temperature | Approvals/markings |
|---|---|---|---|---|---|
| EL9221-6040 | 6 A (T) | typ. 80 mA | approx. 55 g | -25…+55°C | CE, UL |
| EL9221-5090 | 15 A (F) | typ. 80 mA | approx. 55 g | -25…+55°C | CE, UL |
| EL9221-6000 | 6 A (T) | typ. 80 mA | approx. 55 g | -25…+55°C | CE, UL |
| EL9221-4030 | 4 A (T) | typ. 80 mA | approx. 55 g | -25…+55°C | CE, UL |
| EL9221-5000 | 15 A (F) | typ. 80 mA | approx. 55 g | -25…+55°C | CE, UL |

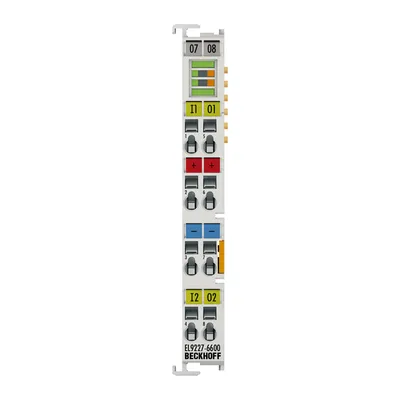

| EL9227-4433 | 4 A (T) | 4 A (T) | typ. 80 mA | approx. 55 g | -25…+55°C | CE, UL |
| EL9227-5500 | 15 A (F) | 15 A (F) | typ. 80 mA | approx. 55 g | -25…+55°C | CE, CCC, UL, ATEX, IECEx |
| EL9227-6600 | 6 A (T) | 6 A (T) | typ. 80 mA | approx. 55 g | -25…+55°C | CE, UL |
| EL9227-6644 | 6 A (T) | 6 A (T) | typ. 80 mA | approx. 55 g | -25…+55°C | CE, UL |
| EL9227-9482 | 10 A (F) | 4 A (T) | typ. 80 mA | approx. 55 g | -25…+55°C | CE, UL |
| EL9227-9664 | 10 A (F) | 6 A (T) | typ. 80 mA | approx. 55 g | -25…+55°C | CE, UL |
| EL9222-4433 | 4 A (T) | 4 A (T) | typ. 80 mA | approx. 55 g | -25…+55°C | CE, UL |
| EL9222-5500 | 15 A (F) | 15 A (F) | typ. 80 mA | approx. 55 g | -25…+55°C | CE, UL |

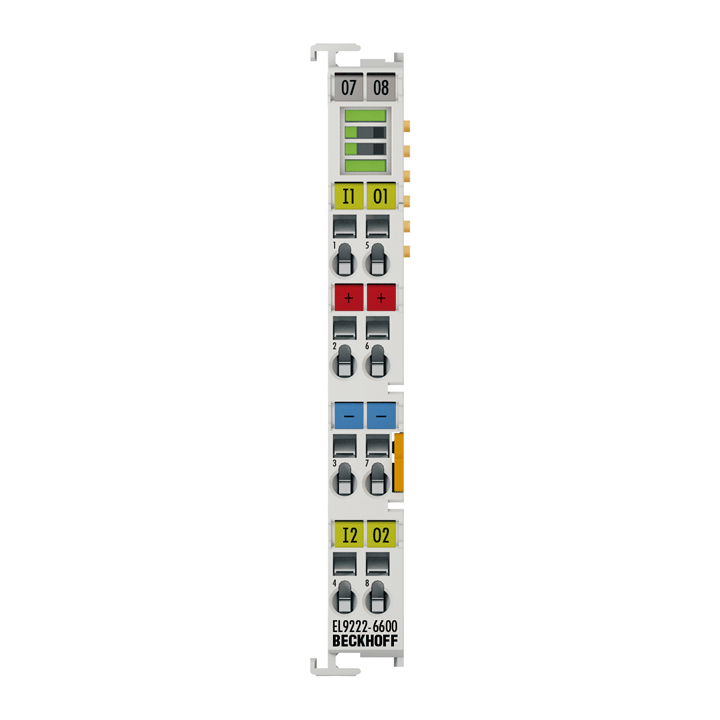

| EL9222-6600 | 6 A (T) | 6 A (T) | typ. 80 mA | approx. 55 g | -25…+55°C | CE, UL |
| EL9222-6644 | 6 A (T) | 6 A (T) | typ. 80 mA | approx. 55 g | -25…+55°C | CE, UL |
| EL9222-9482 | 10 A (F) | 4 A (T) | typ. 80 mA | approx. 55 g | -25…+55°C | CE, UL |
| EL9222-9664 | 10 A (F) | 6 A (T) | typ. 80 mA | approx. 55 g | -25…+55°C | CE, UL |

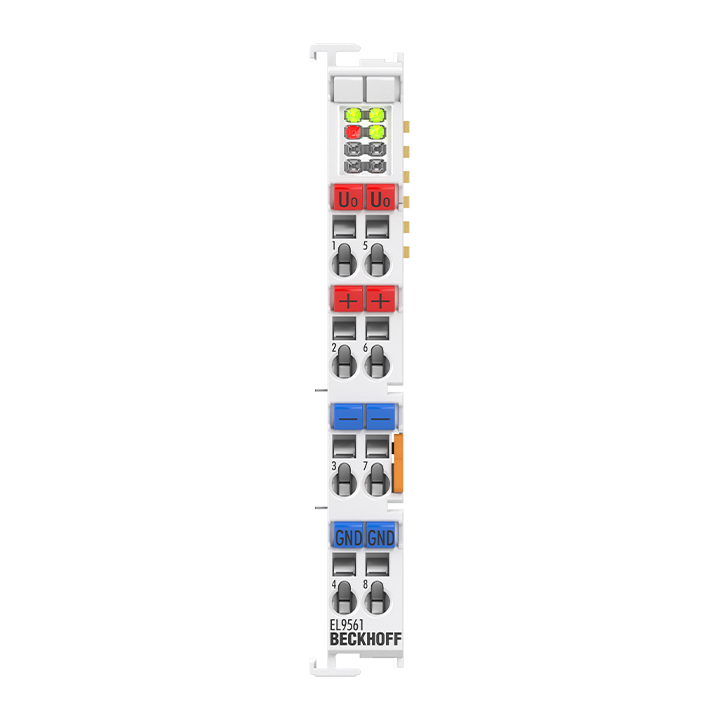

| EL9562 | — | 60 mA | approx. 55 g | 0…55°C | CE |
| EL9562-0015 | — | 60 mA | approx. 65 g | 0…55°C | CE |
| EL9561 | — | typ. 80 mA | approx. 55 g | 0…55°C | CE |
| EL9501 | — | typ. 80 mA | approx. 55 g | 0…55°C | CE |
Common to all listed parts
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Connection cross-section | s*: 0.08…2.5 mm², st*: 0.08…2.5 mm², f*: 0.14…1.5 mm² |
| Connection cross-section AWG | s*: AWG28…14, st*: AWG28…14, f*: AWG26…16 |
| Stripping length | 8…9 mm |
