EL9xxx | System Parts

Showing 25–48 of 69 parts

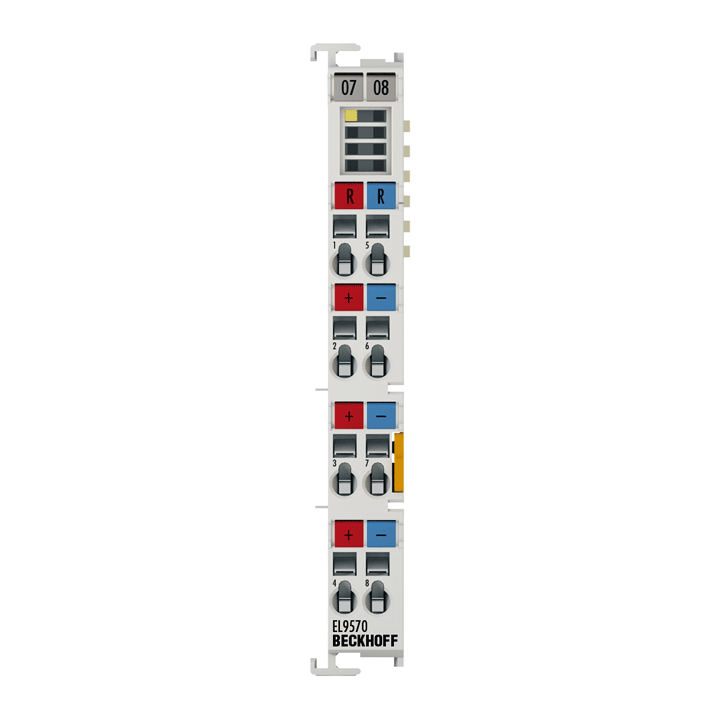

Beckhoff EL9570 – Buffer capacitor terminal, 48 V, 500 µF
Beckhoff
EL9570

Buffer capacitor terminal, 48 V, 500 µF

Beckhoff EL9410 – Power supply terminal for E-bus, with diagnostics
Beckhoff
EL9410

Power supply terminal for E-bus, with diagnostics

Beckhoff EL9400 – Power supply terminal for E-bus
Beckhoff
EL9400

Power supply terminal for E-bus

Beckhoff EL9515 – Power supply terminal 15 V DC
Beckhoff
EL9515

Power supply terminal 15 V DC

Beckhoff EL9512 – Power supply terminal 12 V DC
Beckhoff
EL9512

Power supply terminal 12 V DC

Beckhoff EL9510 – Power supply terminal 10 V DC
Beckhoff
EL9510

Power supply terminal 10 V DC

Beckhoff EL9508 – Power supply terminal 8 V DC
Beckhoff
EL9508

Power supply terminal 8 V DC

Beckhoff EL9505 – Power supply terminal 5 V DC
Beckhoff
EL9505

Power supply terminal 5 V DC

Beckhoff EL9560 – Power supply terminal 24 V DC/24 V DC, 0.1 A
Beckhoff
EL9560

Power supply terminal 24 V DC/24 V DC, 0.1 A

Beckhoff EL9520 – AS-Interface potential feed terminal with filter
Beckhoff
EL9520

AS-Interface potential feed terminal with filter

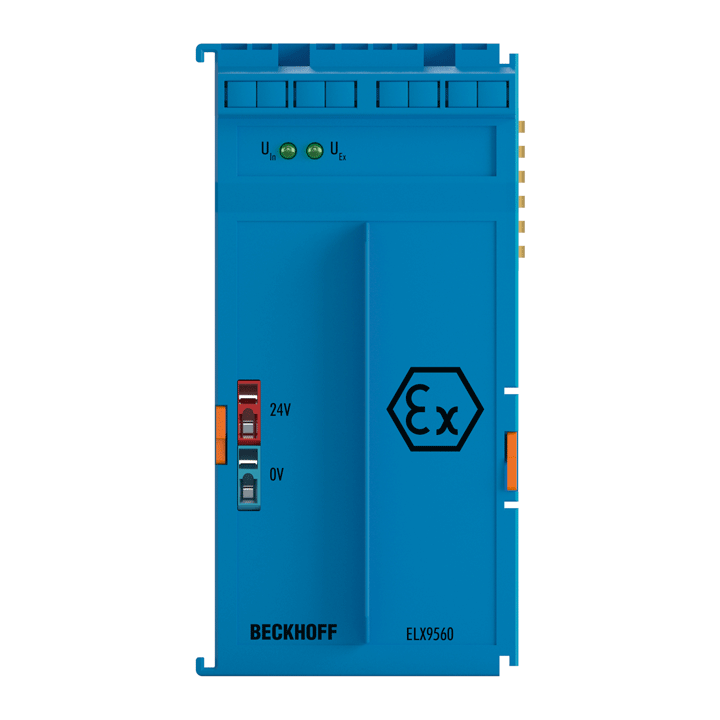

Beckhoff ELX9560 – Power supply terminal, 24 V DC, electrically isolated
Beckhoff
ELX9560

Power supply terminal, 24 V DC, electrically isolated

Beckhoff ELX9012 – Bus end cover for ELX, blue
Beckhoff
ELX9012

Bus end cover for ELX, blue

Beckhoff ELM9012 – Bus end cover for ELMxxxx
Beckhoff
ELM9012

Bus end cover for ELMxxxx

Beckhoff EL9012 – Bus end cover for ELxxxx for power and E-bus contacts
Beckhoff
EL9012

Bus end cover for ELxxxx for power and E-bus contacts

Beckhoff ELM9410 – Power supply terminal for refreshing the E-bus, with diagnostics
Beckhoff
ELM9410

Power supply terminal for refreshing the E-bus, with diagnostics

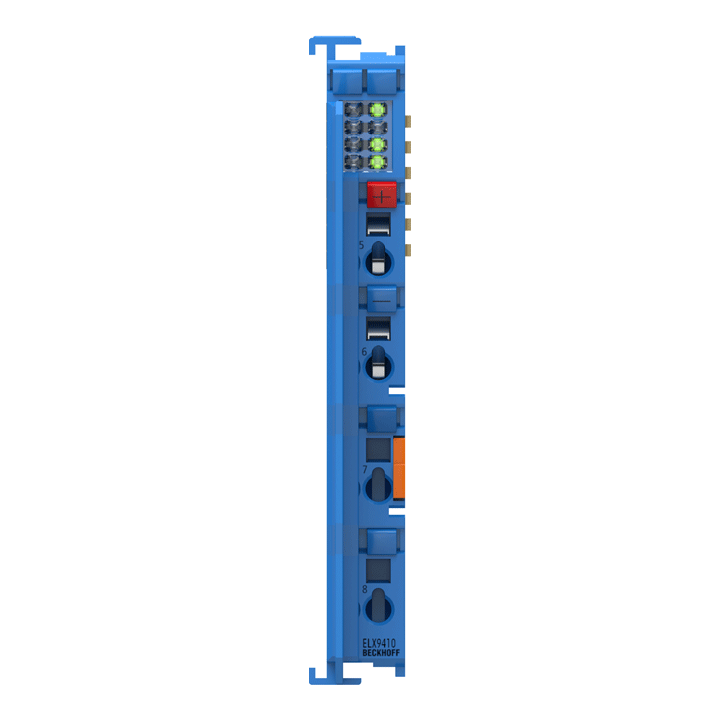

Beckhoff ELX9410 – Power supply terminal for E-bus refresh, with diagnostics
Beckhoff
ELX9410

Power supply terminal for E-bus refresh, with diagnostics

Beckhoff EL9185-0010 – Potential distribution terminal, 4 x 24 V DC, 4 x 0 V DC, potential supply function
Beckhoff
EL9185-0010

Potential distribution terminal, 4 x 24 V DC, 4 x 0 V DC, potential supply function

Beckhoff EL9550-0012 – System terminal, surge filter system and field supply with up to 10 A
Beckhoff
EL9550-0012

System terminal, surge filter system and field supply with up to 10 A

Beckhoff EL9540-0010 – System terminal, surge filter and field supply
Beckhoff
EL9540-0010

System terminal, surge filter and field supply

Beckhoff EL9550-0010 – System terminal, surge filter system and field supply
Beckhoff
EL9550-0010

System terminal, surge filter system and field supply

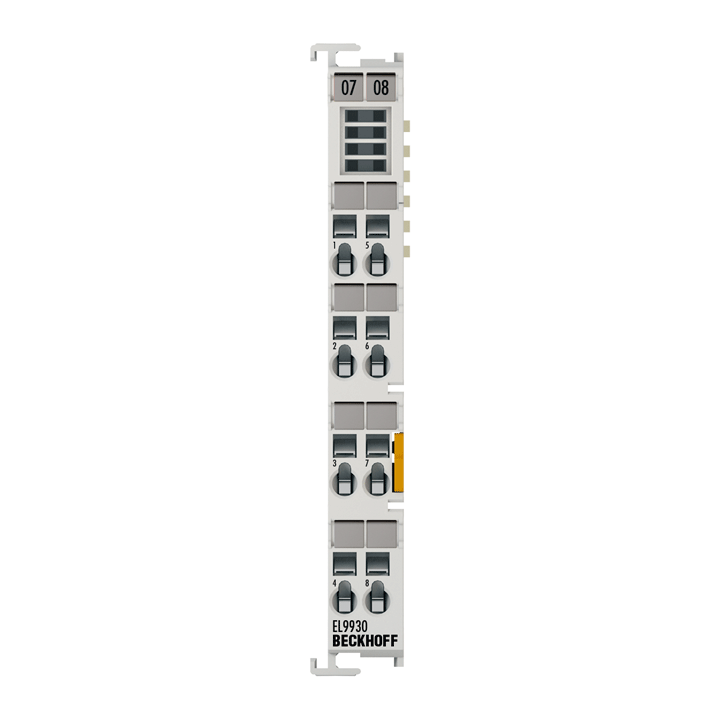

Beckhoff EL9930 – PROFIsafe segment end terminal
Beckhoff
EL9930

PROFIsafe segment end terminal

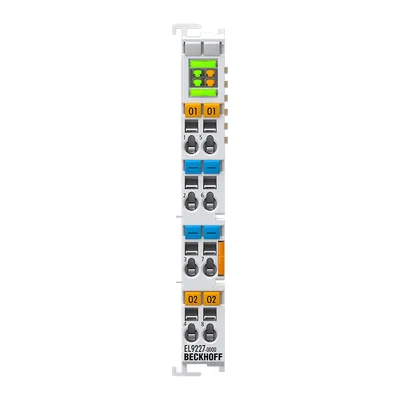

Beckhoff EL9227-0000 – Overcurrent protection terminal, 24 V DC, 2-channel, max. 4 A, NEC Class 2, adjustable, extended functionalities
Beckhoff
EL9227-0000

Overcurrent protection terminal, 24 V DC, 2-channel, max. 4 A, NEC Class 2, adjustable, extended functionalities

Beckhoff EL9221-9080 – Overcurrent protection terminal, 24 V DC, 1-channel, 8 A
Beckhoff
EL9221-9080

Overcurrent protection terminal, 24 V DC, 1-channel, 8 A

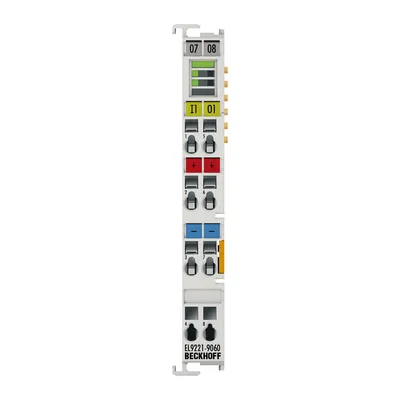

Beckhoff EL9221-9060 – Overcurrent protection terminal, 24 V DC, 1-channel, 6 A
Beckhoff
EL9221-9060

Overcurrent protection terminal, 24 V DC, 1-channel, 6 A

Compare EL9xxx | System

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNWeightOperating temperatureApprovals/markingsDimensions (W x H x D)Current consumption E-bus
EL9570approx. 90 g0…55°CCE, CCC, ATEX, IECEx12 mm x 100 mm x 68 mm—
EL9410approx. 65 g-25…+55°CCE, CCC, UL, ATEX, IECEx, DNV12 mm x 100 mm x 68 mm–
EL9400approx. 65 g0…55°CCE, CCC, UL, ATEX, IECEx12 mm x 100 mm x 68 mm—
EL9515approx. 65 g0…55°CCE, CCC, UL, ATEX, IECEx12 mm x 100 mm x 68 mm90 mA
EL9512approx. 65 g0…55°CCE, CCC, UL, ATEX, IECEx12 mm x 100 mm x 68 mm90 mA
EL9510approx. 65 g-25…+55°CCE, CCC, UL, ATEX, IECEx12 mm x 100 mm x 68 mm90 mA
EL9508approx. 65 g0…55°CCE, CCC, UL, ATEX, IECEx12 mm x 100 mm x 68 mm90 mA
EL9505approx. 65 g0…55°CCE, CCC, UL, ATEX, IECEx12 mm x 100 mm x 68 mm90 mA
EL9560approx. 65 g0…55°CCE, UL12 mm x 100 mm x 68 mm90 mA
EL9520approx. 90 g0…55°CCE, CCC, ATEX, IECEx12 mm x 100 mm x 68 mmtyp. 100 mA
ELX9560approx. 200 g-25…+60°CCE, UL, ATEX, IECEx, cFMus, CCC48 mm x 100 mm x 70 mmtyp. 40 mA
ELX901216 g-25…+60°CCE, UL, ATEX, IECEx, cFMus——
ELM9012approx. 10 g-25…+60°CCE, UL——
EL9012approx. 10 g-25…+60°CCE, UL——
ELM9410approx. 450 g-25…+55°CCE30 mm x 100 mm x 95 mm—
ELX9410approx. 65 g-25…+60°CCE, UL, ATEX, IECEx, cFMus, CCC12 mm x 100 mm x 83 mm—
EL9185-0010approx. 50 g-25…+60°CCE12 mm x 100 mm x 68 mm—
EL9550-0012approx. 50 g0…55°CCE12 mm x 100 mm x 68 mm—
EL9540-0010approx. 50 g-25…+60°CCE, CCC, UL, ATEX, IECEx, DNV12 mm x 100 mm x 68 mmtyp. 40 mA
EL9550-0010approx. 50 g-25…+60°CCE, DNV12 mm x 100 mm x 68 mmtyp. 40 mA
EL9930approx. 42 g-25…+55°CCE—120 mA
EL9227-0000approx. 55 g0…55°CCE12 mm x 100 mm x 68 mmtyp. 80 mA
EL9221-9080approx. 55 g-25…+55°CCE, UL12 mm x 100 mm x 68 mmtyp. 80 mA
EL9221-9060approx. 55 g-25…+55°CCE, UL12 mm x 100 mm x 68 mmtyp. 80 mA
