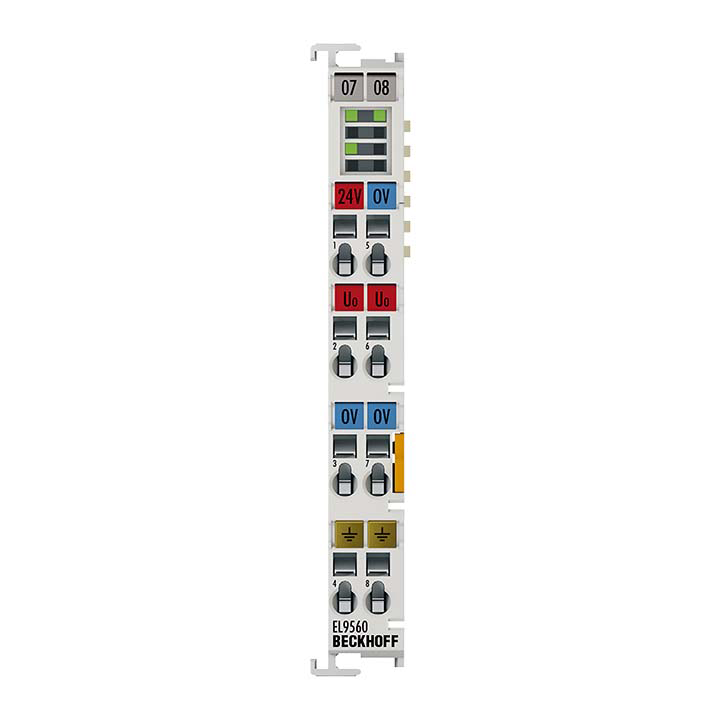

Beckhoff EL9560

Power supply terminal 24 V DC/24 V DC, 0.1 A

MPN: EL9560
Category: EL9xxx | System

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Beckhoff EL9560?

The EL9560 power supply terminal generates an electrically isolated output voltage from the 24 V DC input voltage. The output voltage can be tapped at the terminal with a current of 0.1 A. The following EtherCAT Terminals are also supplied with this

Specifications

Technology	power supply terminal
Short-circuit proof	yes
Input voltage	24 V DC (-15%/+20%)
Output voltage	24 V DC (-15%/+5%)
Output current	≤ 0.1 A
Current consumption E-bus	90 mA
Insulation voltage	1,500 V AC constant load field side/E-bus
Insulation voltage input/output	500 V AC permanent load (field side)
Special features	automatic restart after short circuit, diagnostics UIN/UOUT
Weight	approx. 65 g
Operating temperature	0…55°C
Storage temperature	-25…+85°C
Relative humidity	95%, no condensation
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
Pluggable wiring	for all ESxxxx terminals
Protect. rating/installation pos.	IP20/variable
Approvals/markings	CE, UL
Design form	compact terminal housing with signal LEDs
Material	polycarbonate
Installation	on 35 mm DIN rail, conforming to EN 60715 with lock
Side by side mounting by means of	double slot and key connection
Marking	labeling of the BZxxxx series
Wiring	solid conductor (s), flexible conductor (st) and ferrule (f): spring actuation by screwdriver
Connection cross-section	s: 0.08…2.5 mm², st: 0.08…2.5 mm², f*: 0.14…1.5 mm²
Connection cross-section AWG	s: AWG28…14, st: AWG28…14, f*: AWG26…16
Stripping length	8…9 mm
Current load power contacts	Imax: 10 A
Dimensions (W x H x D)	12 mm x 100 mm x 68 mm
