F90 module Parts
Compare F90 module
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | type of electrical connection of the inputs and outputs | type of voltage supply for sensor supply | output current at digital output for signal <1> rated value |
|---|---|---|---|
| 3RG9004-0DA00 | combicon connection | using AS-Interface | 2 A |
| 3RG9002-0DA00 | screw-type terminals | using AS-Interface | 2 A |

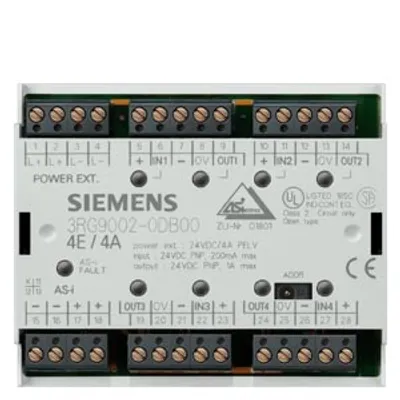

| 3RG9004-0DB00 | combicon connection | using AS-Interface | 1 A |
| 3RG9002-0DC00 | screw-type terminals | via AUX POWER | 2 A |
Common to all listed parts
| design of the product | F90 module - I/O modules for operation in the control cabinet, IP20 |
| design of the device type | standard slave |
| property of the sensor supply short-circuit and overload resistant | Yes |
| ampacity of the sensor supply for all inputs at ambient temperature 40 °C | 200 mA |
| number of digital inputs | 4 |
| type of voltage of the input voltages | DC |
| input current at digital input — for signal <1> minimum | 5 mA |
| input current at digital input — with signal <0> maximum | 1.5 mA |
