Stepper motors with incremental encoder and brake IP65 Parts
Compare Stepper motors with incremental encoder and brake IP65
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Resistance/Phase | Inductance/Phase | Stall torque | Holding torque | Detent torque |
|---|---|---|---|---|---|

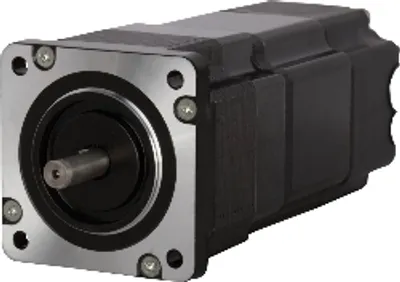

| 80MPF1.500D114-01 | 0.32 Ω | 0.85 mH | 0.8 Nm | 1.1 Nm | <35 mNm |
| 80MPF1.250D114-01 | 1.28 Ω | 3.4 mH | 0.8 Nm | 1.1 Nm | <35 mNm |
| 80MPF5.250D114-01 | 2.4 Ω | 11.2 mH | 2.5 Nm | 3.5 Nm | <75 mNm |
| 80MPF5.500D114-01 | 0.6 Ω | 2.8 mH | 2.5 Nm | 3.5 Nm | <75 mNm |

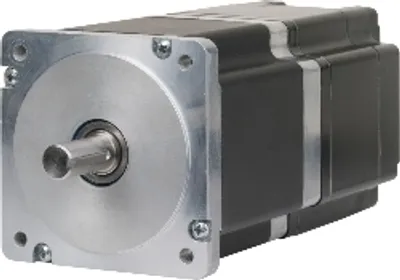

| 80MPH4.101D114-01 | 0.2 Ω | 1.4 mH | 6.3 Nm | 9.5 Nm | <320 mNm |
| 80MPH6.300D114-01 | 2.7 Ω | 20.0 mH | 9.3 Nm | 13.6 Nm | <420 mNm |
| 80MPH6.600D114-01 | 0.7 Ω | 5.0 mH | 9.3 Nm | 13.6 Nm | <420 mNm |
| 80MPH1.600D114-01 | 0.4 Ω | 3.2 mH | 2.9 Nm | 4.0 Nm | <160 mNm |
| 80MPH6.101D114-01 | 0.24 Ω | 1.6 mH | 9.3 Nm | 13.6 Nm | <420 mNm |
| 80MPH3.600D114-01 | 0.6 Ω | 4.3 mH | 5.5 Nm | 7.8 Nm | <210 mNm |
| 80MPF3.500D114-01 | 0.38 Ω | 1.4 mH | 1.2 Nm | 1.7 Nm | <45 mNm |
| 80MPH4.600D114-01 | 0.6 Ω | 4.3 mH | 6.3 Nm | 9.5 Nm | <320 mNm |
| 80MPF3.250D114-01 | 1.52 Ω | 5.6 mH | 1.2 Nm | 1.7 Nm | <35 mNm |
| 80MPH1.300D114-01 | 1.7 Ω | 12.9 mH | 2.9 Nm | 4.0 Nm | <160 mNm |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Stepping angle | 1.8° |
| Insulation class | B (130°C) |
| Insulation resistance | 100 MΩ min. 500 VDC |
| Driver supply voltage | Max. 80 VDC |
| Degree of protection per EN 60529 | IP65 (note: From back of flange) |
