Home / Automation technology / Industrial controls / Commanding and signaling devices / SIRIUS 3SB2 pushbuttons and indicator lights, 16 mm / Complete units

Complete units Parts

Showing 1–20 of 20 parts

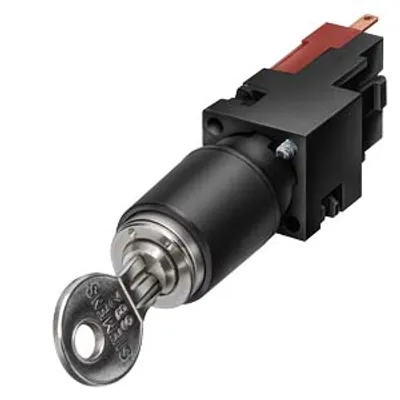

Siemens 3SB2210-4PB01 – Keyswitch, 16 mm, round, plastic, CES, 3 switch positions I-O-II, latching, actuating angle 2 x 62 degrees
Siemens
3SB2210-4PB01

Keyswitch, 16 mm, round, plastic, CES

Siemens 3SB2210-4PA01 – Keyswitch, 16 mm, round, plastic, CES, 3 switch positions I-O-II, latching, actuating angle 2 x 62 degrees
Siemens
3SB2210-4PA01

Keyswitch, 16 mm, round, plastic, CES

Siemens 3SB2210-2EG01 – Selector switch, 16 mm, round, plastic, white, 3 switch positions I>O
Siemens
3SB2210-2EG01

Selector switch, 16 mm, round, plastic, white

Siemens 3SB2210-2EE01 – Selector switch, 16 mm, round, plastic, green, 3 switch positions I>O
Siemens
3SB2210-2EE01

Selector switch, 16 mm, round, plastic, green

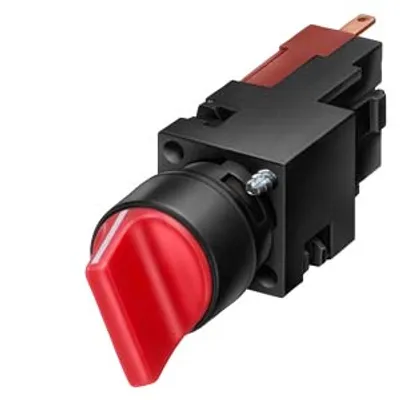

Siemens 3SB2210-2EC01 – Selector switch, 16 mm, round, plastic, red, 3 switch positions I>O
Siemens
3SB2210-2EC01

Selector switch, 16 mm, round, plastic, red

Siemens 3SB2210-2EB01 – Selector switch, 16 mm, round, plastic, black, 3 switch positions I>O
Siemens
3SB2210-2EB01

Selector switch, 16 mm, round, plastic, black

Siemens 3SB2203-0LC01 – Pushbutton, 16 mm, round, plastic, red, pushbutton, raised, 1 NC
Siemens
3SB2203-0LC01

Pushbutton, 16 mm, round, plastic, red, pushbutton, raised

Siemens 3SB2203-0AC01 – Pushbutton, 16 mm, round, plastic, red, pushbutton, flat, 1 NC
Siemens
3SB2203-0AC01

Pushbutton, 16 mm, round, plastic, red, pushbutton, flat

Siemens 3SB2203-0AB01 – Pushbutton, 16 mm, round, plastic, black, pushbutton, flat, 1 NC
Siemens
3SB2203-0AB01

Pushbutton, 16 mm, round, plastic, black, pushbutton, flat

Siemens 3SB2210-2DG01 – Selector switch, 16 mm, round, plastic, white, 3 switch positions I-O-II, latching
Siemens
3SB2210-2DG01

Selector switch, 16 mm, round, plastic, white

Siemens 3SB2210-2DE01 – Selector switch, 16 mm, round, plastic, green, 3 switch positions I-O-II, latching
Siemens
3SB2210-2DE01

Selector switch, 16 mm, round, plastic, green

Siemens 3SB2210-2DC01 – Selector switch, 16 mm, round, plastic, red, 3 switch positions I-O-II, latching
Siemens
3SB2210-2DC01

Selector switch, 16 mm, round, plastic, red

Siemens 3SB2210-2DB01 – Selector switch, 16 mm, round, plastic, black, 3 switch positions I-O-II, latching
Siemens
3SB2210-2DB01

Selector switch, 16 mm, round, plastic, black

Siemens 3SB2207-0LC01 – Illuminated pushbutton, 16 mm, round, plastic, red, pushbutton, raised, 1 NC Lampholder W2 x 4.6 d
Siemens
3SB2207-0LC01

Illuminated pushbutton, 16 mm, round, plastic, red

Siemens 3SB2207-0AC01 – Illuminated pushbutton, 16 mm, round, plastic, red, pushbutton, flat, 1 NC Lampholder W2 x 4.6 d
Siemens
3SB2207-0AC01

Illuminated pushbutton, 16 mm, round, plastic, red

Siemens 3SB2206-0LH01 – Illuminated pushbutton, 16 mm, round, plastic, clear, pushbutton, raised, 1 NO, Lampholder W2 x 4.6 d
Siemens
3SB2206-0LH01

Illuminated pushbutton, 16 mm, round, plastic, clear

Siemens 3SB2204-6BE06 – Indicator light, 16 mm, round, plastic, green, Lampholder W2 x 4.6 d, without lamp
Siemens
3SB2204-6BE06

Indicator light, 16 mm, round, plastic, green

Siemens 3SB2204-6BD06 – Indicator light, 16 mm, round, plastic, yellow, Lampholder W2 x 4.6 d, without lamp
Siemens
3SB2204-6BD06

Indicator light, 16 mm, round, plastic, yellow

Siemens 3SB2204-6BC06 – Indicator light, 16 mm, round, plastic, red, Lampholder W2 x 4.6 d, without lamp
Siemens
3SB2204-6BC06

Indicator light, 16 mm, round, plastic, red

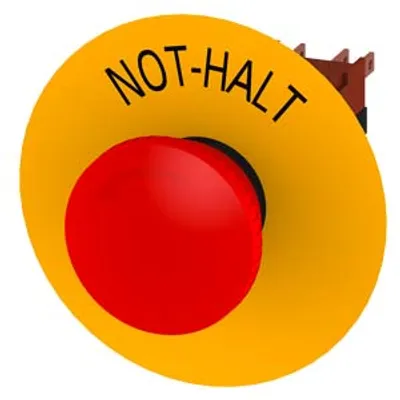

Siemens 3SB2203-1AC01 – Emergency stop mushroom pushbutton, 16 mm, round, plastic, red, latching, with rotate-to-unlatch mechanism
Siemens
3SB2203-1AC01

Emergency stop mushroom pushbutton, 16 mm, round, plastic

Compare Complete units

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNproduct designationdesign of the actuating elementNet Weightmounting heightcolor of the actuating element
3SB2210-4PB01Key-operated switchesKey-operated switch0.045 kg20 mm—
3SB2210-4PA01Key-operated switchesKey-operated switch0.048 kg20 mm—
3SB2210-2EG01Selector switchesselector switch9.94 g17 mmwhite
3SB2210-2EE01Selector switchesselector switch0.02 kg17 mmgreen
3SB2210-2EC01Selector switchesselector switch0.019 kg17 mmred
3SB2210-2EB01Selector switchesselector switch0.02 kg17 mmblack
3SB2203-0LC01PushbuttonsPushbutton0.016 kg12 mmred
3SB2203-0AC01PushbuttonsPushbutton0.015 kg8 mmred
3SB2203-0AB01PushbuttonsPushbutton0.015 kg8 mmblack
3SB2210-2DG01Selector switchesselector switch0.019 kg17 mmwhite
3SB2210-2DE01Selector switchesselector switch0.024 kg17 mmgreen
3SB2210-2DC01Selector switchesselector switch0.02 kg17 mmred
3SB2210-2DB01Selector switchesselector switch0.018 kg17 mmblack
3SB2207-0LC01Illuminated pushbuttonsIlluminated pushbutton9.94 g12 mmred
3SB2207-0AC01Illuminated pushbuttonsIlluminated pushbutton0.016 kg8 mmred
3SB2206-0LH01Illuminated pushbuttonsIlluminated pushbutton0.019 kg12 mmclear
3SB2204-6BE06Indicator lightsindicator light9.94 g9 mmgreen
3SB2204-6BD06Indicator lightsindicator light0.012 kg9 mmyellow
3SB2204-6BC06Indicator lightsindicator light9.94 g9 mmred
3SB2203-1AC01EMERGENCY STOP mushroom pushbuttonsEMERGENCY STOP mushroom pushbutton0.02 kg21 mmred

Common to all listed parts

product type designation3SB2
material of the actuating elementplastic
material of the holderPlastic
type of voltage of the operating voltageAC/DC
protection class IPIP65
vibration resistance according to IEC 60068-2-620 ... 200 Hz: 5 g
Substance Prohibitance (day/month/year)07/01/2006
number of CO contacts for auxiliary contacts0
