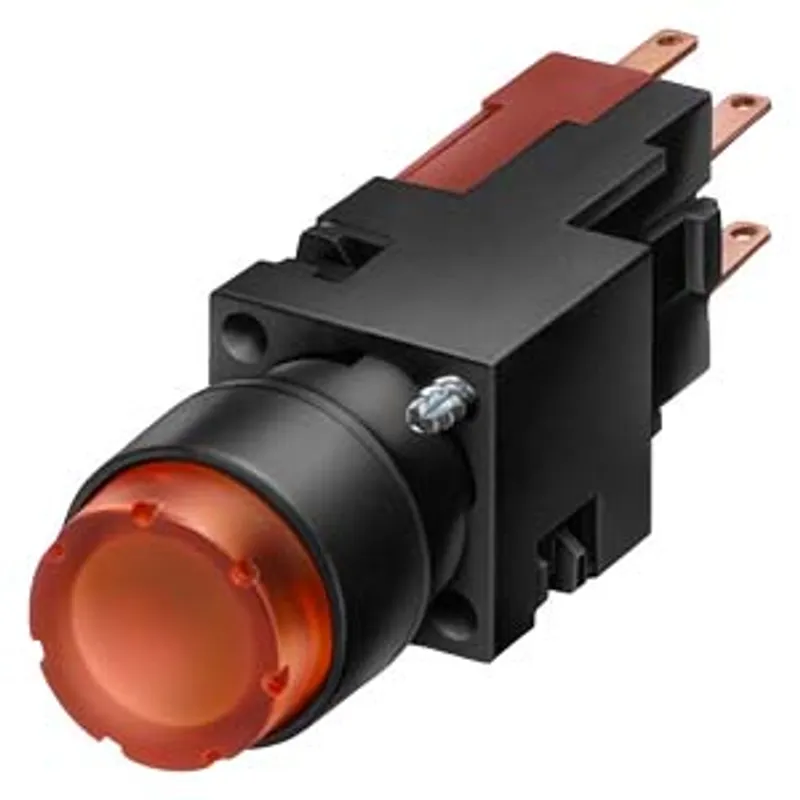

Siemens 3SB2203-0LC01
Pushbutton, 16 mm, round, plastic, red, pushbutton, raised, 1 NC
- MPN
- 3SB2203-0LC01
- Category
- Complete units
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3SB2203-0LC01?
Pushbutton, 16 mm, round, plastic, red, pushbutton, raised, 1 NC
Specifications
General
| product brand name | SIRIUS |
| product designation | Pushbuttons |
| design of the product | Complete unit round |
| product type designation | 3SB2 |
Enclosure
| number of command points | 1 |
Actuator
| design of the actuating element | Pushbutton |
| principle of operation of the actuating element | momentary contact type |
| product extension optional light source | No |
| color of the actuating element | red |
| material of the actuating element | plastic |
| shape of the actuating element | Raised pushbutton |
| type of unlocking device | without |
| number of switching positions | 2 |
Front ring
| product component front ring | Yes |
| design of the front ring | Standard |
| material of the front ring | plastic |
| color of the front ring | black |
Holder
| material of the holder | Plastic |
Contact block/ lampholder
| number of lampholders | 0 |
| number of switching elements | 1 |
General technical data
| product function — positive opening | Yes |
| product function — EMERGENCY STOP function | No |
| type of voltage of the operating voltage | AC/DC |
| protection class IP | IP65 |
| vibration resistance according to IEC 60068-2-6 | 20 ... 200 Hz: 5 g |
| operating frequency maximum | 1 000 1/h |
| mechanical service life (operating cycles) typical | 10 000 000 |
| reference code according to IEC 81346-2 | S |
| Substance Prohibitance (day/month/year) | 07/01/2006 |
| Net Weight | 0.016 kg |
| operating voltage rated value | 5 ... 250 V |
Auxiliary circuit
| number of NC contacts for auxiliary contacts | 1 |
| number of NO contacts for auxiliary contacts | 0 |
| number of CO contacts for auxiliary contacts | 0 |
| operational current at AC-12 — at 24 V rated value | 10 A |
| operational current at AC-12 — at 60 V rated value | 10 A |
| operational current at AC-12 — at 110 V rated value | 10 A |
| operational current at AC-12 — at 230 V rated value | 10 A |
| operational current at AC-15 — at 24 V rated value | 4 A |
| operational current at AC-15 — at 110 V rated value | 4 A |
| operational current at AC-15 — at 230 V rated value | 4 A |
| operational current at DC-12 — at 24 V rated value | 6 A |
| operational current at DC-12 — at 60 V rated value | 5 A |
| operational current at DC-12 — at 110 V rated value | 2.5 A |
| operational current at DC-12 — at 230 V rated value | 1 A |
| operational current at DC-13 — at 24 V rated value | 3 A |
| operational current at DC-13 — at 60 V rated value | 1.2 A |
| operational current at DC-13 — at 110 V rated value | 0.7 A |
| operational current at DC-13 — at 230 V rated value | 0.3 A |
Connections/ Terminals
| type of electrical connection | tab terminals |
| tightening torque of the screws in the bracket maximum | 0.4 N·m |
Ambient conditions
| ambient temperature — during operation | -25 ... +70 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| environmental category during operation according to IEC 60721 | 3K6 |
Installation/ mounting/ dimensions
| fastening method | front plate mounting |
| shape of the installation opening | round |
| mounting diameter | 16 mm |
| mounting height | 12 mm |
| installation width | 19 mm |
| installation depth | 50 mm |
