3RW52 soft starters Parts
























Compare 3RW52 soft starters
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | operational current — at 40 °C rated value | operational current — at 50 °C rated value | operational current — at 60 °C rated value | operational current at inside-delta circuit — at 40 °C rated value |
|---|---|---|---|---|---|

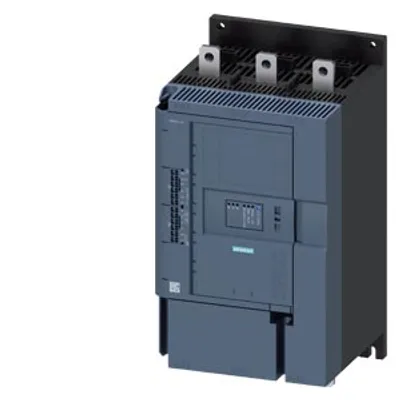

| 3RW5246-2AC04 | 9.719 kg | 370 A | 328 A | 300 A | 641 A |
| 3RW5245-6TC15 | 9.404 kg | 315 A | 279 A | 255 A | 546 A |
| 3RW5245-6TC14 | 9.42 kg | 315 A | 279 A | 255 A | 546 A |
| 3RW5245-6TC05 | 7.761 kg | 315 A | 279 A | 255 A | 546 A |
| 3RW5245-6TC04 | 9.387 kg | 315 A | 279 A | 255 A | 546 A |
| 3RW5236-2AC14 | 6.538 kg | 171 A | 153 A | 141 A | 296 A |
| 3RW5227-1TC15 | 6.245 kg | 93 A | 82.5 A | 75.5 A | 161 A |

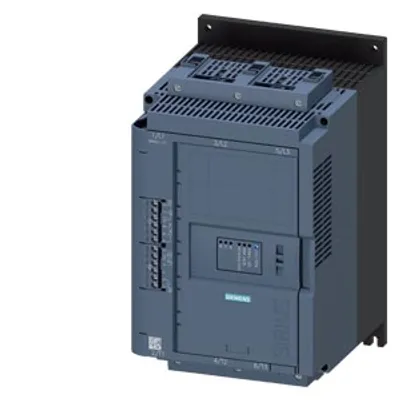

| 3RW5227-1TC14 | 6.412 kg | 93 A | 82.5 A | 75.5 A | 161 A |
| 3RW5227-1TC05 | 5.328 kg | 93 A | 82.5 A | 75.5 A | 161 A |
| 3RW5227-1TC04 | 6.394 kg | 93 A | 82.5 A | 75.5 A | 161 A |
| 3RW5227-1AC15 | 6.21 kg | 93 A | 82.5 A | 75.5 A | 161 A |
| 3RW5227-1AC14 | 6.407 kg | 93 A | 82.5 A | 75.5 A | 161 A |
| 3RW5227-1AC05 | 5.328 kg | 93 A | 82.5 A | 75.5 A | 161 A |
| 3RW5217-3TC14 | 1.731 kg | 38 A | 33.5 A | 30.5 A | 65.8 A |
| 3RW5216-1AC05 | 1.101 kg | 32 A | 28.4 A | 26 A | 55.4 A |
| 3RW5216-1AC04 | 1.952 kg | 32 A | 28.4 A | 26 A | 55.4 A |
| 3RW5215-3TC15 | 1.101 kg | 25 A | 22.3 A | 19.6 A | 43.3 A |

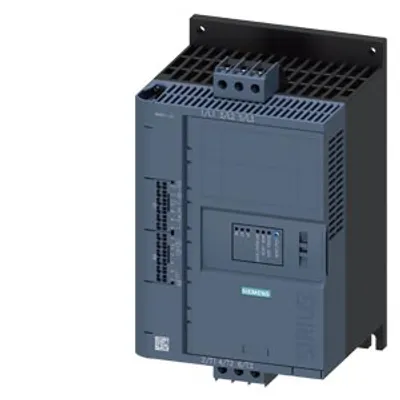

| 3RW5215-3TC14 | 1.854 kg | 25 A | 22.3 A | 19.6 A | 43.3 A |
| 3RW5215-3TC05 | 1.101 kg | 25 A | 22.3 A | 19.6 A | 43.3 A |
| 3RW5215-3TC04 | 1.701 kg | 25 A | 22.3 A | 19.6 A | 43.3 A |
| 3RW5215-3AC15 | 1.731 kg | 25 A | 22.3 A | 19.6 A | 43.3 A |
| 3RW5214-3AC15 | 1.101 kg | 18 A | 15.9 A | 13.8 A | 31.5 A |
| 3RW5214-3AC14 | 1.645 kg | 18 A | 15.9 A | 13.8 A | 31.5 A |
| 3RW5213-3TC05 | 1.657 kg | 13 A | 11.5 A | 10.5 A | 22.5 A |
Common to all listed parts
| product category | Hybrid switching devices |
| product designation | Soft starter |
| product type designation | 3RW52 |
| manufacturer's article number — of standard HMI module usable | 3RW5980-0HS00 |
| manufacturer's article number — of high feature HMI module usable | 3RW5980-0HF00 |
| manufacturer's article number — of communication module PROFINET standard usable | 3RW5980-0CS00 |
| manufacturer's article number — of communication module PROFIBUS usable | 3RW5980-0CP00 |
| manufacturer's article number — of communication module Modbus TCP usable | 3RW5980-0CT00 |
