3RW52 soft starters Parts
























Compare 3RW52 soft starters
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Net Weight | operational current — at 40 °C rated value | operational current — at 50 °C rated value | operational current — at 60 °C rated value | operational current at inside-delta circuit — at 40 °C rated value |
|---|---|---|---|---|---|
| 3RW5245-2TC04 | 9.369 kg | 315 A | 279 A | 255 A | 546 A |
| 3RW5244-6TC15 | 9.401 kg | 250 A | 220 A | 200 A | 433 A |
| 3RW5244-6TC14 | 9.348 kg | 250 A | 220 A | 200 A | 433 A |
| 3RW5244-6TC05 | 7.761 kg | 250 A | 220 A | 200 A | 433 A |
| 3RW5225-1AC15 | 3.628 kg | 63 A | 55.5 A | 50.5 A | 109 A |
| 3RW5225-1AC14 | 4.877 kg | 63 A | 55.5 A | 50.5 A | 109 A |

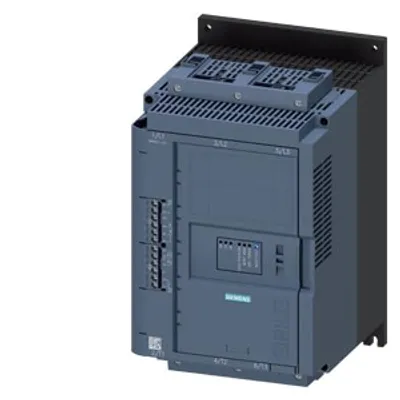

| 3RW5225-1AC05 | 4.833 kg | 63 A | 55.5 A | 50.5 A | 109 A |
| 3RW5225-1AC04 | 4.867 kg | 63 A | 55.5 A | 50.5 A | 109 A |
| 3RW5224-3TC15 | 4.43 kg | 47 A | 41.6 A | 36.2 A | 81.4 A |
| 3RW5224-3TC14 | 4.377 kg | 47 A | 41.6 A | 36.2 A | 81.4 A |
| 3RW5224-3TC05 | 4.487 kg | 47 A | 41.6 A | 36.2 A | 81.4 A |
| 3RW5217-3TC05 | 1.721 kg | 38 A | 33.5 A | 30.5 A | 65.8 A |
| 3RW5217-3TC04 | 1.801 kg | 38 A | 33.5 A | 30.5 A | 65.8 A |
| 3RW5217-3AC15 | 2.582 kg | 38 A | 33.5 A | 30.5 A | 65.8 A |
| 3RW5217-3AC14 | 1.941 kg | 38 A | 33.5 A | 30.5 A | 65.8 A |

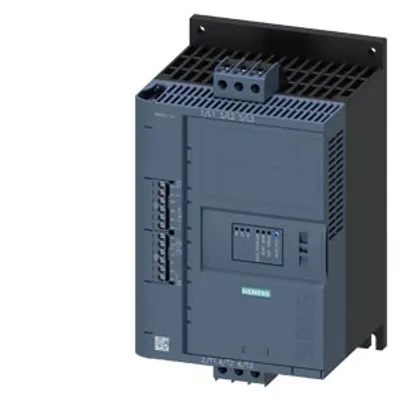

| 3RW5217-1AC14 | 1.956 kg | 38 A | 33.5 A | 30.5 A | 65.8 A |
| 3RW5217-1AC05 | 1.101 kg | 38 A | 33.5 A | 30.5 A | 65.8 A |
| 3RW5217-1AC04 | 1.941 kg | 38 A | 33.5 A | 30.5 A | 65.8 A |

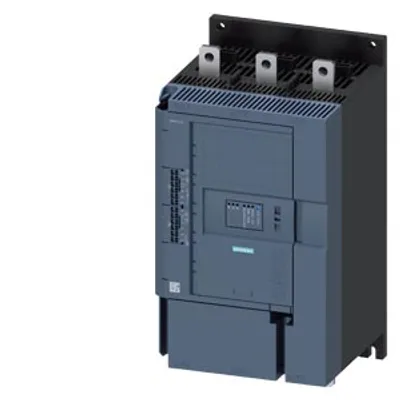

| 3RW5247-2TC15 | 10.106 kg | 470 A | 416 A | 380 A | 814 A |
| 3RW5247-2TC14 | 9.713 kg | 470 A | 416 A | 380 A | 814 A |
| 3RW5247-2TC05 | 7.761 kg | 470 A | 416 A | 380 A | 814 A |
| 3RW5247-2TC04 | 9.742 kg | 470 A | 416 A | 380 A | 814 A |
| 3RW5246-2AC14 | 9.723 kg | 370 A | 328 A | 300 A | 641 A |
| 3RW5246-2AC05 | 9.861 kg | 370 A | 328 A | 300 A | 641 A |
Common to all listed parts
| product category | Hybrid switching devices |
| product designation | Soft starter |
| product type designation | 3RW52 |
| manufacturer's article number — of standard HMI module usable | 3RW5980-0HS00 |
| manufacturer's article number — of high feature HMI module usable | 3RW5980-0HF00 |
| manufacturer's article number — of communication module PROFINET standard usable | 3RW5980-0CS00 |
| manufacturer's article number — of communication module PROFIBUS usable | 3RW5980-0CP00 |
| manufacturer's article number — of communication module Modbus TCP usable | 3RW5980-0CT00 |
