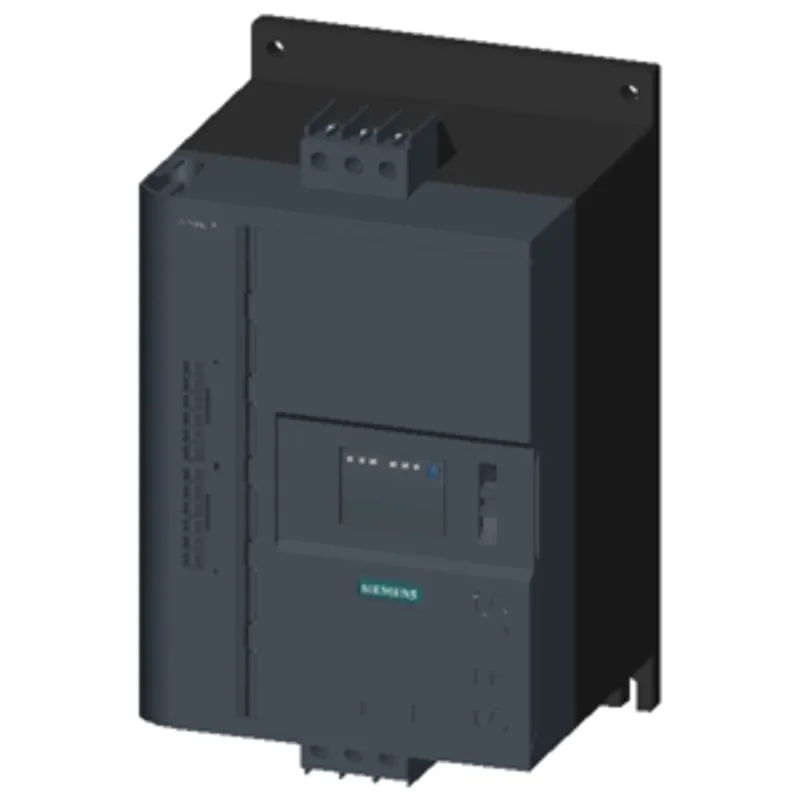

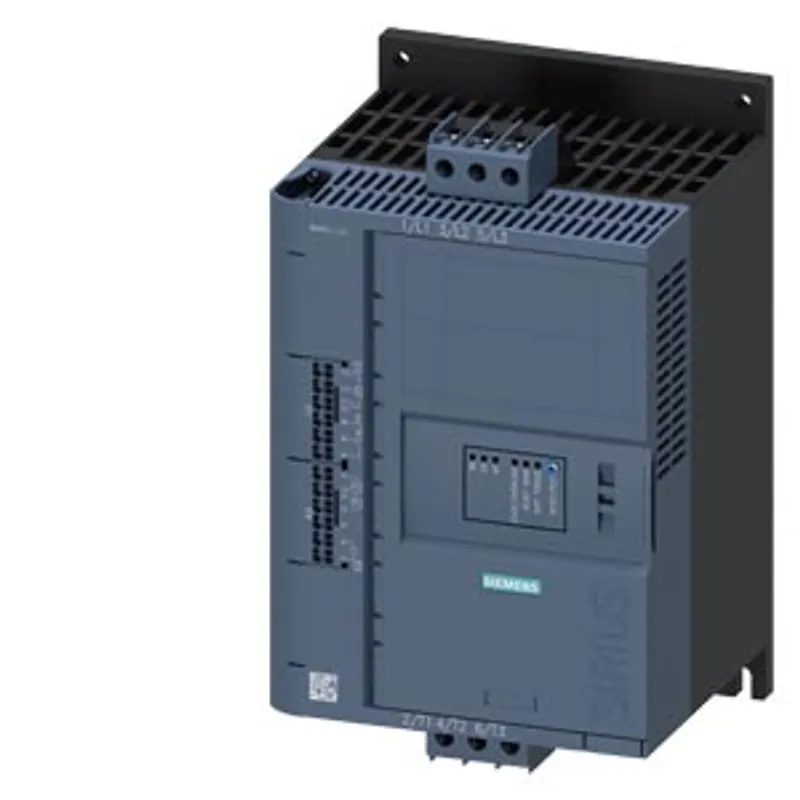

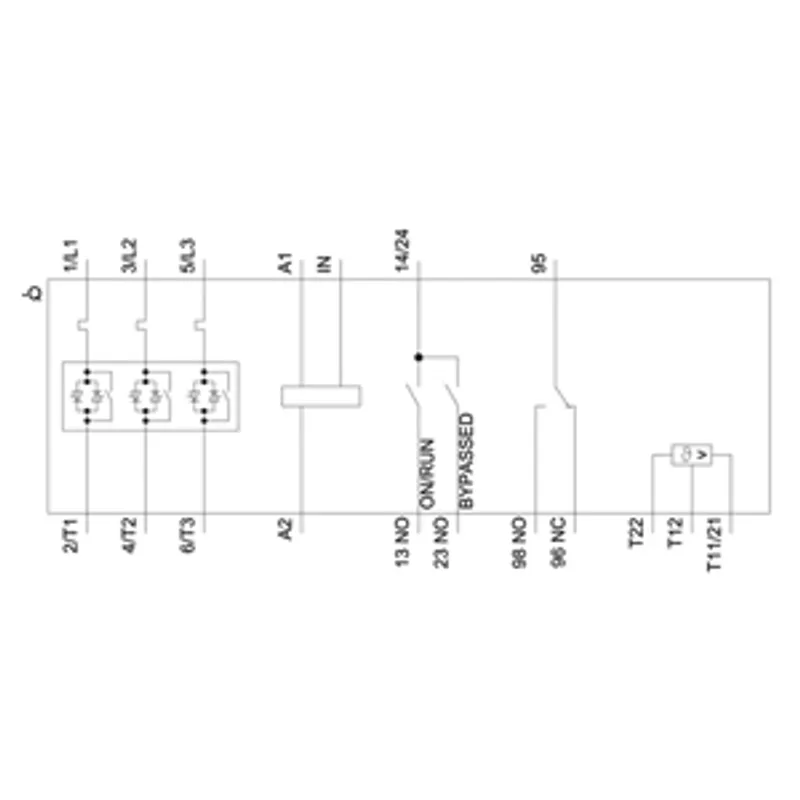

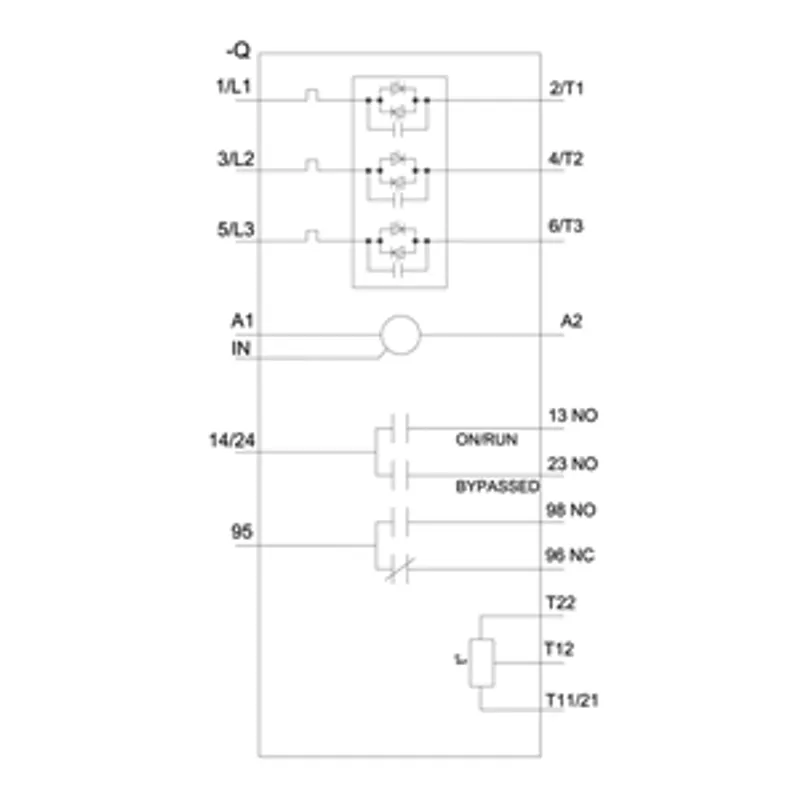

Siemens 3RW5215-3TC15

SIRIUS soft starter 200-600 V 25 A, 110-250 V AC spring-type terminals Thermistor input

MPN: 3RW5215-3TC15
Category: 3RW52 soft starters

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 3RW5215-3TC15?

SIRIUS soft starter 200-600 V 25 A, 110-250 V AC spring-type terminals Thermistor input

Specifications

General

product brand name	SIRIUS
product category	Hybrid switching devices
product designation	Soft starter
product type designation	3RW52
manufacturer's article number — of standard HMI module usable	3RW5980-0HS00
manufacturer's article number — of high feature HMI module usable	3RW5980-0HF00
manufacturer's article number — of communication module PROFINET standard usable	3RW5980-0CS00
manufacturer's article number — of communication module PROFIBUS usable	3RW5980-0CP00
manufacturer's article number — of communication module Modbus TCP usable	3RW5980-0CT00
manufacturer's article number — of communication module Modbus RTU usable	3RW5980-0CR00
manufacturer's article number — of communication module Ethernet/IP	3RW5980-0CE00
manufacturer's article number — of circuit breaker usable at 400 V	3RV2032-4EA10; Type of coordination 1, Iq = 65 kA, CLASS 10
manufacturer's article number — of circuit breaker usable at 500 V	3RV2032-4EA10; Type of coordination 1, Iq = 15 kA, CLASS 10
manufacturer's article number — of circuit breaker usable at 400 V at inside-delta circuit	3RV2032-4VA10; Type of coordination 1, Iq = 65 kA, CLASS 10
manufacturer's article number — of circuit breaker usable at 500 V at inside-delta circuit	3RV2032-4VA10; Type of coordination 1, Iq = 15 kA, CLASS 10
manufacturer's article number — of the gG fuse usable up to 690 V	3NA3822-6; Type of coordination 1, Iq = 65 kA
manufacturer's article number — of the gG fuse usable at inside-delta circuit up to 500 V	3NA3822-6; Type of coordination 1, Iq = 65 kA
manufacturer's article number — of full range R fuse link for semiconductor protection usable up to 690 V	3NE1817-0; Type of coordination 2, Iq = 65 kA
manufacturer's article number — of back-up R fuse link for semiconductor protection usable up to 690 V	3NE8021-1; Type of coordination 2, Iq = 65 kA

General technical data

starting voltage [%]	30 ... 100 %
stopping voltage [%]	50 %; non-adjustable
start-up ramp time of soft starter	0 ... 20 s
current limiting value [%] adjustable	130 ... 700 %
certificate of suitability — CE marking	Yes
certificate of suitability — UL approval	Yes
certificate of suitability — CSA approval	Yes
product component — HMI-High Feature	No
product component — is supported HMI-Standard	Yes
product component — is supported HMI-High Feature	Yes
product feature integrated bypass contact system	Yes
number of controlled phases	3
buffering time in the event of power failure — for main current circuit	100 ms
buffering time in the event of power failure — for control circuit	100 ms
insulation voltage rated value	600 V
degree of pollution	3, acc. to IEC 60947-4-2
impulse voltage rated value	6 kV
blocking voltage of the thyristor maximum	1 600 V
service factor	1
surge voltage resistance rated value	6 kV
maximum permissible voltage for protective separation — between main and auxiliary circuit	600 V
shock resistance	15 g / 11 ms, from 12 g / 11 ms with potential contact lifting
vibration resistance	15 mm to 6 Hz; 2 g to 500 Hz
utilization category according to IEC 60947-4-2	AC 53a
reference code according to IEC 81346-2	Q
Substance Prohibitance (day/month/year)	02/15/2018
SVHC substance name	Lead CAS-No. 7439-92-1 Lead monoxide (lead oxide) CAS-No. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-No. 71868-10-5 Melamine CAS-No. 108-78-1 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-No. 119-47-1 Dibutylbis(pentane-2,4-dionato-O,O')tin CAS-No. 22673-19-4 Diboron trioxide CAS-No. 1303-86-2
Net Weight	1.101 kg
product function — ramp-up (soft starting)	Yes
product function — soft stopping	Yes
product function — Soft Torque	Yes
product function — adjustable current limitation	Yes
product function — pump stop	Yes
product function — intrinsic device protection	Yes
product function — motor overload protection	Yes; Full motor protection (thermistor motor protection and electronic motor overload protection)
product function — evaluation of thermistor motor protection	Yes; Type A PTC or Klixon / Thermoclick
product function — inside-delta circuit	Yes
product function — auto-RESET	Yes
product function — manual RESET	Yes
product function — remote reset	Yes; By turning off the control supply voltage
product function — communication function	Yes
product function — operating measured value display	Yes; Only in conjunction with special accessories
product function — error logbook	Yes; Only in conjunction with special accessories
product function — via software parameterizable	No
product function — via software configurable	Yes
product function — PROFIenergy	Yes; in connection with the PROFINET Standard communication module
product function — firmware update	Yes
product function — removable terminal for control circuit	Yes
product function — torque control	No
product function — analog output	No

Power Electronics

operational current — at 40 °C rated value	25 A
operational current — at 50 °C rated value	22.3 A
operational current — at 60 °C rated value	19.6 A
operational current at inside-delta circuit — at 40 °C rated value	43.3 A
operational current at inside-delta circuit — at 50 °C rated value	39 A
operational current at inside-delta circuit — at 60 °C rated value	33.9 A
operating voltage — rated value	200 ... 600 V
operating voltage — at inside-delta circuit rated value	200 ... 600 V
relative negative tolerance of the operating voltage	-15 %
relative positive tolerance of the operating voltage	10 %
relative negative tolerance of the operating voltage at inside-delta circuit	-15 %
relative positive tolerance of the operating voltage at inside-delta circuit	10 %
operating power for 3-phase motors — at 230 V at 40 °C rated value	5.5 kW
operating power for 3-phase motors — at 230 V at inside-delta circuit at 40 °C rated value	11 kW
operating power for 3-phase motors — at 400 V at 40 °C rated value	11 kW
operating power for 3-phase motors — at 400 V at inside-delta circuit at 40 °C rated value	18.5 kW
operating power for 3-phase motors — at 500 V at 40 °C rated value	15 kW
operating power for 3-phase motors — at 500 V at inside-delta circuit at 40 °C rated value	22 kW
Operating frequency 1 rated value	50 Hz
Operating frequency 2 rated value	60 Hz
relative negative tolerance of the operating frequency	-10 %
relative positive tolerance of the operating frequency	10 %
adjustable motor current — at rotary coding switch on switch position 1	11.5 A
adjustable motor current — at rotary coding switch on switch position 2	12.4 A
adjustable motor current — at rotary coding switch on switch position 3	13.3 A
adjustable motor current — at rotary coding switch on switch position 4	14.2 A
adjustable motor current — at rotary coding switch on switch position 5	15.1 A
adjustable motor current — at rotary coding switch on switch position 6	16 A
adjustable motor current — at rotary coding switch on switch position 7	16.9 A
adjustable motor current — at rotary coding switch on switch position 8	17.8 A
adjustable motor current — at rotary coding switch on switch position 9	18.7 A
adjustable motor current — at rotary coding switch on switch position 10	19.6 A
adjustable motor current — at rotary coding switch on switch position 11	20.5 A
adjustable motor current — at rotary coding switch on switch position 12	21.4 A
adjustable motor current — at rotary coding switch on switch position 13	22.3 A
adjustable motor current — at rotary coding switch on switch position 14	23.2 A
adjustable motor current — at rotary coding switch on switch position 15	24.1 A
adjustable motor current — at rotary coding switch on switch position 16	25 A
adjustable motor current — minimum	11.5 A
adjustable motor current — for inside-delta circuit at rotary coding switch on switch position 1	19.9 A
adjustable motor current — for inside-delta circuit at rotary coding switch on switch position 2	21.5 A
adjustable motor current — for inside-delta circuit at rotary coding switch on switch position 3	23 A
adjustable motor current — for inside-delta circuit at rotary coding switch on switch position 4	24.6 A
adjustable motor current — for inside-delta circuit at rotary coding switch on switch position 5	26.2 A
adjustable motor current — for inside-delta circuit at rotary coding switch on switch position 6	27.7 A
adjustable motor current — for inside-delta circuit at rotary coding switch on switch position 7	29.3 A
adjustable motor current — for inside-delta circuit at rotary coding switch on switch position 8	30.8 A
adjustable motor current — for inside-delta circuit at rotary coding switch on switch position 9	32.4 A
adjustable motor current — for inside-delta circuit at rotary coding switch on switch position 10	33.9 A
adjustable motor current — for inside-delta circuit at rotary coding switch on switch position 11	35.5 A
adjustable motor current — for inside-delta circuit at rotary coding switch on switch position 12	37.1 A
adjustable motor current — for inside-delta circuit at rotary coding switch on switch position 13	38.6 A
adjustable motor current — for inside-delta circuit at rotary coding switch on switch position 14	40.2 A
adjustable motor current — for inside-delta circuit at rotary coding switch on switch position 15	41.7 A
adjustable motor current — for inside-delta circuit at rotary coding switch on switch position 16	43.3 A
adjustable motor current — at inside-delta circuit minimum	19.9 A
minimum load [%]	15 %; Relative to smallest settable Ie
power loss [W] for rated value of the current at AC — at 40 °C after startup	20 W
power loss [W] for rated value of the current at AC — at 50 °C after startup	19 W
power loss [W] for rated value of the current at AC — at 60 °C after startup	18 W
power loss [W] at AC at current limitation 350% — at 40 °C during startup	376 W
power loss [W] at AC at current limitation 350% — at 50 °C during startup	318 W
power loss [W] at AC at current limitation 350% — at 60 °C during startup	278 W

Control circuit/ Control

type of voltage of the control supply voltage	AC
control supply voltage at AC — at 50 Hz	110 ... 250 V
control supply voltage at AC — at 60 Hz	110 ... 250 V
relative negative tolerance of the control supply voltage at AC at 50 Hz	-15 %
relative positive tolerance of the control supply voltage at AC at 50 Hz	10 %
relative negative tolerance of the control supply voltage at AC at 60 Hz	-15 %
relative positive tolerance of the control supply voltage at AC at 60 Hz	10 %
control supply voltage frequency	50 ... 60 Hz
relative negative tolerance of the control supply voltage frequency	-10 %
relative positive tolerance of the control supply voltage frequency	10 %
control supply current in standby mode rated value	30 mA
holding current in bypass operation rated value	75 mA
inrush current by closing the bypass contacts maximum	0.17 A
inrush current peak at application of control supply voltage maximum	12.2 A
duration of inrush current peak at application of control supply voltage	2.2 ms
design of the overvoltage protection	Varistor
design of short-circuit protection for control circuit	4 A gG fuse (Icu=1 kA), 6 A quick-acting fuse (Icu=1 kA), C1 miniature circuit breaker (Icu= 600 A), C6 miniature circuit breaker (Icu= 300 A); Is not part of scope of supply

Inputs/ Outputs

number of digital inputs	1
number of digital outputs	3
number of digital outputs — not parameterizable	2
digital output version	2 normally-open contacts (NO) / 1 changeover contact (CO)
number of analog outputs	0
switching capacity current of the relay outputs — at AC-15 at 250 V rated value	3 A
switching capacity current of the relay outputs — at DC-13 at 24 V rated value	1 A

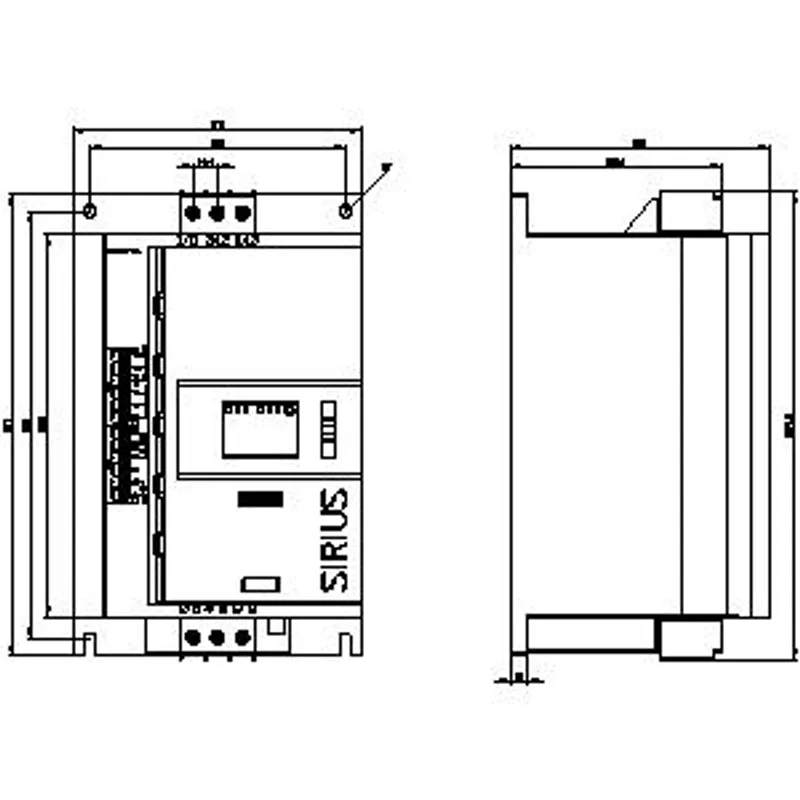

Installation/ mounting/ dimensions

mounting position	+/- 10° rotation possible and can be tilted forward or backward on vertical mounting surface
fastening method	screw fixing
height	275 mm
width	170 mm
depth	152 mm
required spacing with side-by-side mounting — forwards	10 mm
required spacing with side-by-side mounting — backwards	0 mm
required spacing with side-by-side mounting — upwards	100 mm
required spacing with side-by-side mounting — downwards	75 mm
required spacing with side-by-side mounting — at the side	5 mm
weight without packaging	2.1 kg

Connections/ Terminals

type of electrical connection — for main current circuit	screw-type terminals
type of electrical connection — for control circuit	spring-loaded terminals
wire length for thermistor connection — with conductor cross-section = 0.5 mm² maximum	50 m
wire length for thermistor connection — with conductor cross-section = 1.5 mm² maximum	150 m
wire length for thermistor connection — with conductor cross-section = 2.5 mm² maximum	250 m
type of connectable conductor cross-sections — for main contacts — solid	2x (1.0 ... 2.5 mm²), 2x (2.5 ... 10 mm²)
type of connectable conductor cross-sections — for main contacts — finely stranded with core end processing	2x (1.0 ... 2.5 mm²), 2x (2.5 ... 6.0 mm²)
type of connectable conductor cross-sections — for AWG cables for main current circuit solid	2x (16 ... 12), 2x (14 ... 8)
type of connectable conductor cross-sections — for control circuit solid	2x (0.25 ... 1.5 mm²)
type of connectable conductor cross-sections — for control circuit finely stranded with core end processing	2x (0.25 ... 1.5 mm²)
type of connectable conductor cross-sections — for AWG cables for control circuit solid	2x (24 ... 16)
type of connectable conductor cross-sections — for AWG cables for control circuit finely stranded with core end processing	2x (24 ... 16)
wire length — between soft starter and motor maximum	800 m
wire length — at the digital inputs at AC maximum	100 m
tightening torque — for main contacts with screw-type terminals	2 ... 2.5 N·m
tightening torque — for auxiliary and control contacts with screw-type terminals	0.8 ... 1.2 N·m
tightening torque [lbf·in] — for main contacts with screw-type terminals	18 ... 22 lbf·in
tightening torque [lbf·in] — for auxiliary and control contacts with screw-type terminals	7 ... 10.3 lbf·in

Ambient conditions

installation altitude at height above sea level maximum	5 000 m
ambient temperature — during operation	-25 ... +60 °C; Please observe derating at temperatures of 40 °C or above
ambient temperature — during storage and transport	-40 ... +80 °C
environmental category — during operation according to IEC 60721	3K6 (no ice formation, only occasional condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
environmental category — during storage according to IEC 60721	1K6 (only occasional condensation), 1C2 (no salt mist), 1S2 (sand must not get inside the devices), 1M4
environmental category — during transport according to IEC 60721	2K2, 2C1, 2S1, 2M2 (max. fall height 0.3 m)

Electromagnetic compatibility

EMC emitted interference

acc. to IEC 60947-4-2: Class A

Communication/ Protocol

communication module is supported — PROFINET standard	Yes
communication module is supported — EtherNet/IP	Yes
communication module is supported — Modbus RTU	Yes
communication module is supported — Modbus TCP	Yes
communication module is supported — PROFIBUS	Yes

UL/CSA ratings

manufacturer's article number — of circuit breaker usable for Standard Faults — at 460/480 V according to UL	Siemens type: 3RV2742, max. 70 A or 3VA51, max. 80 A; Iq = 5 kA
manufacturer's article number — of circuit breaker usable for Standard Faults — 60/480 V according to UL	Siemens type: 3RV2742, max.40 A or 3VA51, max. 60 A; Iq max = 65 kA
manufacturer's article number — of circuit breaker usable for Standard Faults — at 460/480 V at inside-delta circuit according to UL	Siemens type: 3RV2742, max. 70 A or 3VA51, max. 80 A; Iq = 5 kA
manufacturer's article number — of circuit breaker usable for Standard Faults — 60/480 V at inside-delta circuit according to UL	Siemens type: 3VA51, max. 60 A; Iq max = 65 kA
manufacturer's article number — of circuit breaker usable for Standard Faults — at 575/600 V according to UL	Siemens type: 3RV2742, max. 70 A or 3VA51, max. 80 A; Iq = 5 kA
manufacturer's article number — of circuit breaker usable for Standard Faults — at 575/600 V at inside-delta circuit according to UL	Siemens type: 3RV2742, max. 70 A or 3VA51, max. 80 A; Iq = 5 kA
manufacturer's article number — of the fuse — usable for Standard Faults up to 575/600 V according to UL	Type: Class RK5 / K5, max. 100 A; Iq = 5 kA
manufacturer's article number — of the fuse — usable for High Faults up to 575/600 V according to UL	Type: Class J / L, max. 100 A; Iq = 100 kA
manufacturer's article number — of the fuse — usable for Standard Faults at inside-delta circuit up to 575/600 V according to UL	Type: Class RK5 / K5, max. 100 A; Iq = 5 kA
manufacturer's article number — of the fuse — usable for High Faults at inside-delta circuit up to 575/600 V according to UL	Type: Class J / L, max. 100 A; Iq = 100 kA
operating power [hp] for 3-phase motors — at 200/208 V at 50 °C rated value	5 hp
operating power [hp] for 3-phase motors — at 220/230 V at 50 °C rated value	7.5 hp
operating power [hp] for 3-phase motors — at 460/480 V at 50 °C rated value	15 hp
operating power [hp] for 3-phase motors — at 575/600 V at 50 °C rated value	20 hp
operating power [hp] for 3-phase motors — at 200/208 V at inside-delta circuit at 50 °C rated value	10 hp
operating power [hp] for 3-phase motors — at 220/230 V at inside-delta circuit at 50 °C rated value	10 hp
operating power [hp] for 3-phase motors — at 460/480 V at inside-delta circuit at 50 °C rated value	25 hp
operating power [hp] for 3-phase motors — at 575/600 V at inside-delta circuit at 50 °C rated value	30 hp
contact rating of auxiliary contacts according to UL	R300-B300
protection class IP on the front according to IEC 60529	IP20
touch protection on the front according to IEC 60529	finger-safe, for vertical contact from the front

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing	37.2 kg
global warming potential [CO2 eq] / during sales	0.66 kg
global warming potential [CO2 eq] / during operation	152 kg
global warming potential [CO2 eq] / after end of life	-4.19 kg
global warming potential [CO2 eq] / total	185 kg

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3RW5215-3TC15PDF

3RW5215-3TC15: frequently asked questions

When can 3RW5215-3TC15 be shipped?

3RW5215-3TC15 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3RW5215-3TC15 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3RW5215-3TC15 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RW5215-3TC15, subject to availability and destination.
