Wall-mounted drive Parts
Compare Wall-mounted drive
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product Net Weight | Output Current, Normal Use (In) | Output Current, Light-Overload Use (ILD) | Output Power, Normal Use (Pn) | Output Power, Light-Overload Use (PLD) |
|---|---|---|---|---|---|

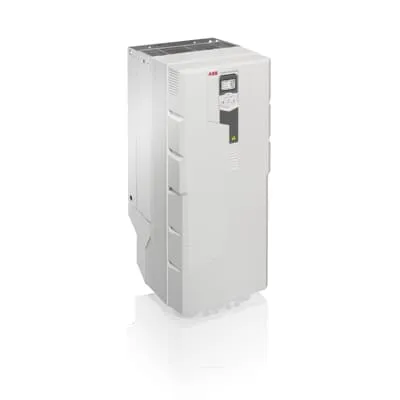

| ACS580-01-430A-4+X1664+K492 | 98 kg | 430 A | 400 A | 250 kW | 200 kW |

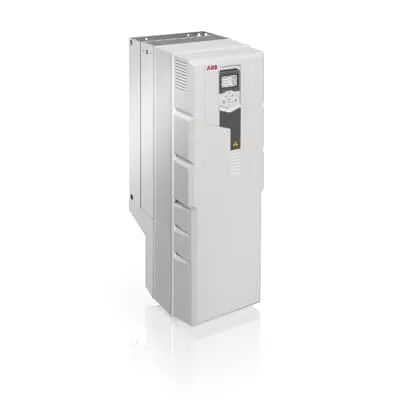

| ACS580-01-169A-4+X1664+K492 | 54 kg | 169 A | 161 A | 90 kW | 90 kW |
| ACS580-01-206A-4+X1664+K492 | 54 kg | 206 A | 196 A | 110 kW | 110 kW |
| ACS580-01-073A-4+P974 | 19 kg | 73 A | 68.4 A | 37 kW | 37 kW |

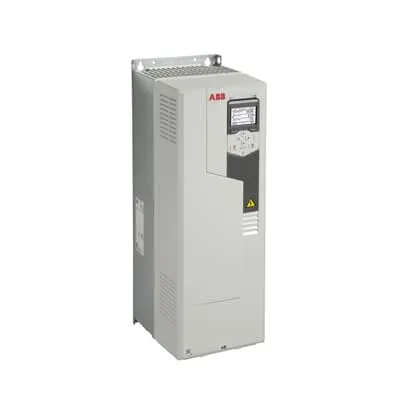

| ACS580-01-062A-4+N7511+P944+K492 | 23.5 kg | 62 A | 58 A | 30 kW | 30 kW |

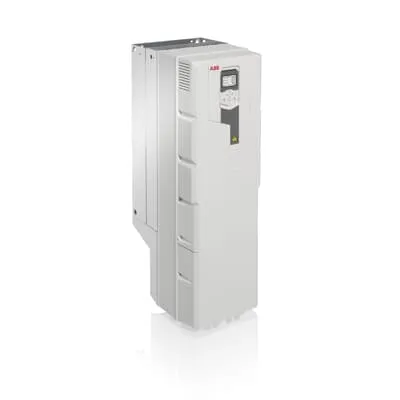

| ACS580-01-293A-4+X1664+K492 | 69 kg | 293 A | 278 A | 160 kW | 160 kW |

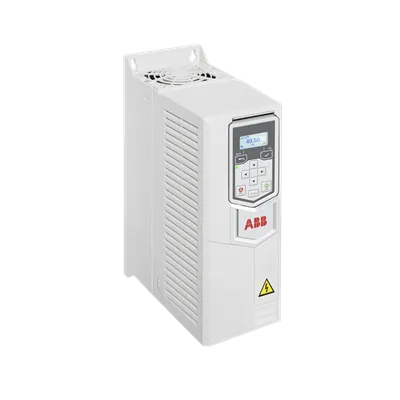

| ACS530-01-12A7-4+N7569+P974 | 4 kg | 12.6 A | 12 A | 5.5 kW | 5.5 kW |

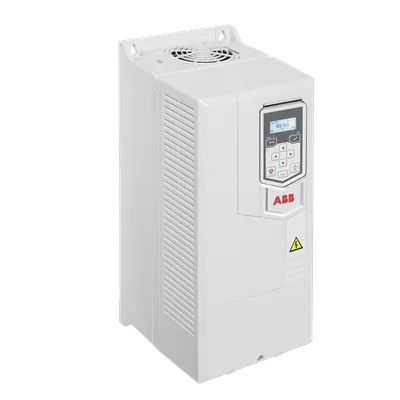

| ACS530-01-033A-4+N7569+P974 | 14.5 kg | 32 A | 30.4 A | 15 kW | 15 kW |

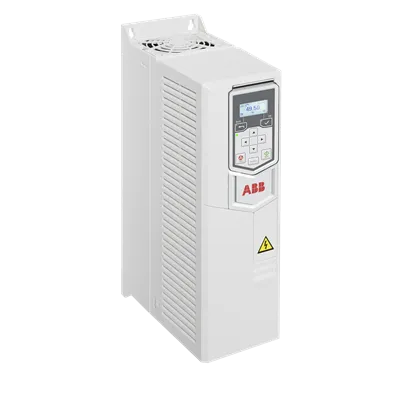

| ACS530-01-018A-4+N7569+P974 | 6 kg | 17 A | 16.2 A | 7.5 kW | 7.5 kW |
| ACS530-01-05A7-4+N7569+P974 | 4 kg | 5.6 A | 5.3 A | 2.2 kW | 2.2 kW |
| ACS530-01-04A0-4+X1645 | 1.6 kg | — | — | — | — |
| ACS530-01-02A6-4+X1645 | 1.6 kg | — | — | — | — |

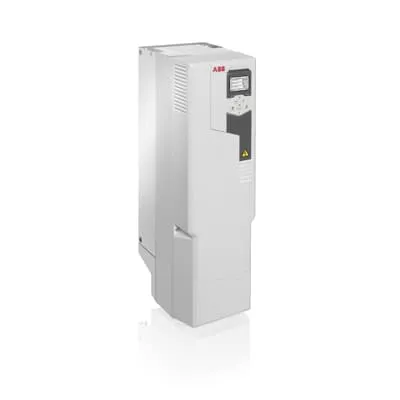

| ACS580-01-106A-4+0J400 | 19 kg | 106 A | 100 A | 55 kW | 55 kW |
| ACS580-01-363A-4+N7530 | 98 kg | 363 A | 345 A | 200 kW | 200 kW |
| ACS530-01-039A-4+N7569 | 14.5 kg | 38 A | 36.1 A | 18.5 kW | 18.5 kW |

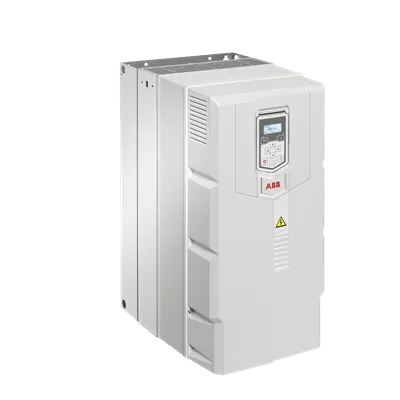

| ACS530-01-169A-4+N7569 | 49.6 kg | 169 A | 161 A | 90 kW | 90 kW |
| ACS530-01-046A-4+N7569 | 14.5 kg | 45 A | 42.8 A | 22 kW | 22 kW |
| ACS530-01-03A3-4+X1645 | 1.6 kg | — | — | — | — |
| ACS560-01-293A-4 | 69 kg, 152.119 lb | 293 A | 278 A | 160 kW | 160 kW |

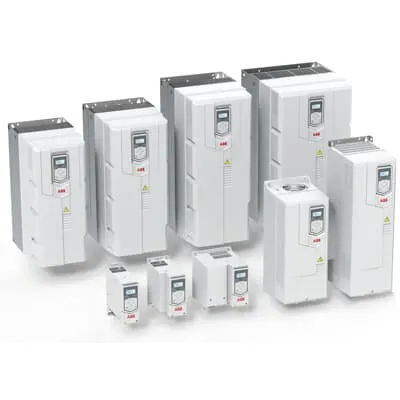

| ACS560-01-169A-4 | 54 kg, 119.050 lb | 169 A | 161 A | 90 kW | 90 kW |
| ACS530-01-07A3-4+J400 | 4 kg | 7.2 A | 6.8 A | 3 kW | 3 kW |

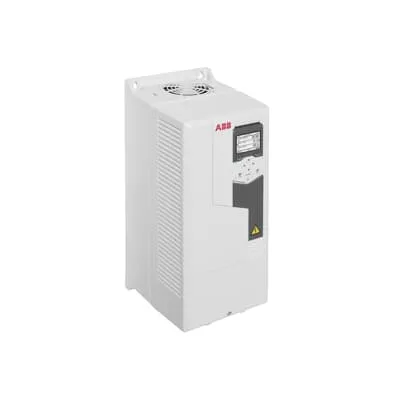

| ACS580-01-033A-4+X1664+K492 | 14.9 kg | 32 A | 30.4 A | 15 kW | 15.0 kW |

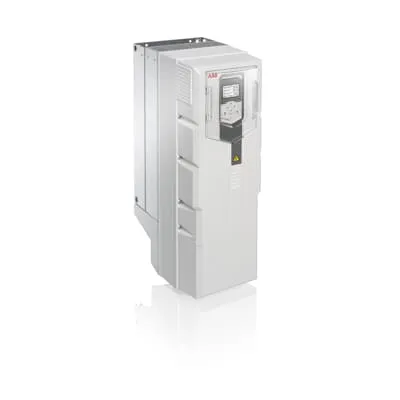

| ACS580-01-145A-4+B056 | 37 kg | 145 A | 138 A | 75 kW | 75 kW |

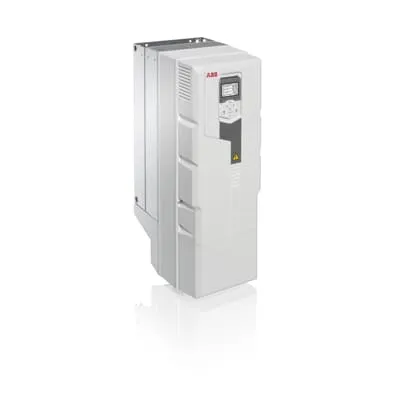

| ACS580-01-124A-4 | 94 lb | — | — | — | — |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Efficiency Level | IE2 |
| UNSPSC | 39122001 |
