Wall-mounted drive Parts
Compare Wall-mounted drive
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Output Current, Normal Use (In) | Output Current, Light-Overload Use (ILD) | Output Current, Heavy-Duty Use (IHD) | Output Power, Normal Use (Pn) | Output Power, Heavy-Duty Use (PHD) |
|---|---|---|---|---|---|

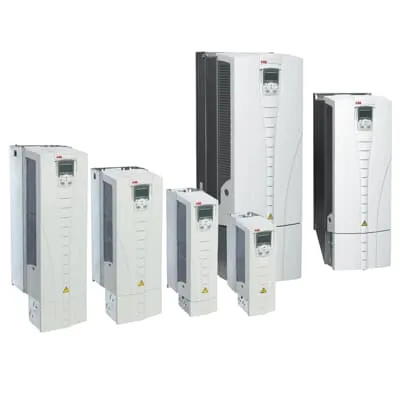

| ACS510-01-046A-4 (OEM) | — | — | — | — | — |
| ACS580-01-033A-4+X1574+K492 | 32 A | 30.4 A | 24.6 A | 15 kW | 11.0 kW |
| ACS580-01-145A-4+X1574+K492 | 145 A | 138 A | 105 A | 75 kW | 55 kW |

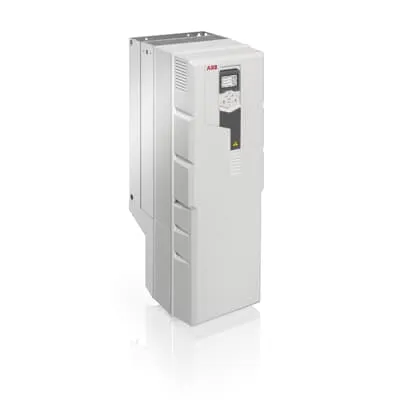

| ACS580-01-169A-4+X1574+K492 | 169 A | 161 A | 145 A | 90 kW | 75 kW |

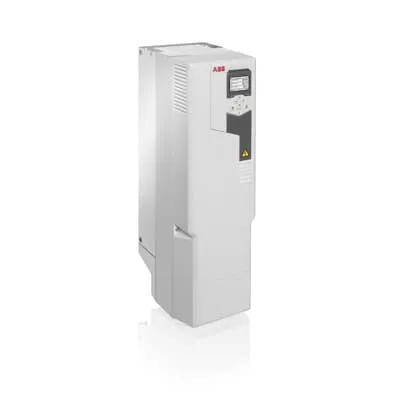

| ACS580-01-106A-4+X1574+K492 | 106 A | 100 A | 87 A | 55 kW | 45 kW |

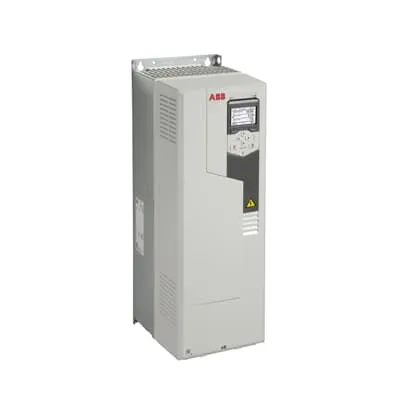

| ACS580-01-062A-4+X1574+K492 | 62 A | 58 A | 45 A | 30 kW | 22.0 kW |
| ACS580-01-039A-4+X1574+K492 | 38 A | 36.1 A | 31.6 A | 18.5 kW | 15.0 kW |

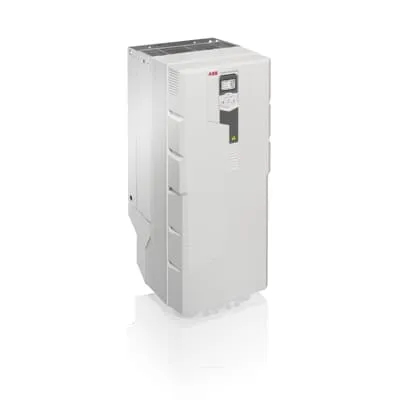

| ACS580-01-430A-4+N7530 | 430 A | 400 A | 363 A | 250 kW | 200 kW |
| ACS580-01-106A-4+X1664+K492 | 106 A | 100 A | 87 A | 55 kW | 45 kW |

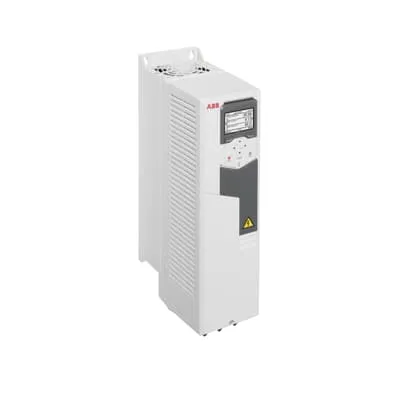

| ACS580-01-026A-4+X1574+K492 | 25 A | 23.8 A | 17.0 A | 11 kW | 7.5 kW |
| ACS580-01-046A-4+X1574+K492 | 45 A | 42.8 A | 37.7 A | 22 kW | 18.5 kW |
| ACS580-01-062A-4+P974 | 62 A | 58 A | 44.6 A | 30 kW | 22 kW |

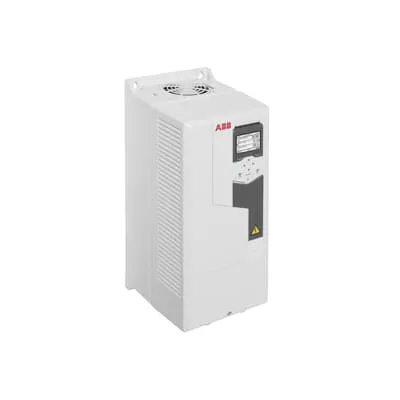

| ACS580-01-039A-4+P974 | 38 A | 36.1 A | 31.6 A | 18.5 kW | 15 kW |

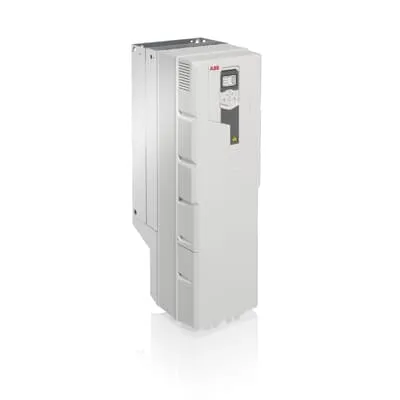

| ACS580-01-293A-4+N7511+P944+K492 | 293 A | 278 A | 246 A | 160 kW | 132 kW |
| ACS580-01-363A-4+N7511+P944+K492 | 363 A | 345 A | 293 A | 200 kW | 160 kW |
| ACS580-01-073A-4+N7511+P944+K492 | 73 A | 68 A | 61 A | 37 kW | 30.0 kW |
| ACS580-01-169A-4+N7511+P944+K492 | 169 A | 161 A | 145 A | 90 kW | 75 kW |

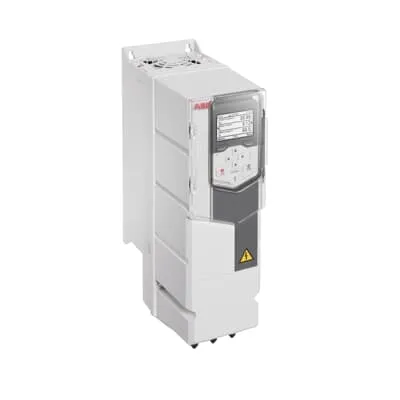

| ACS580-01-04A1-4+B056 | 4 A | 3.8 A | 3.3 A | 1.5 kW | 1.1 kW |

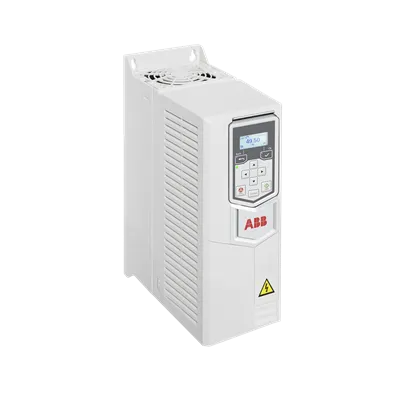

| ACS530-01-04A1-4+N7569+P974 | 4 A | 3.8 A | — | 1.5 kW | — |

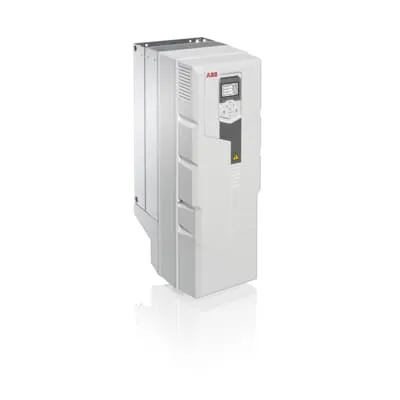

| ACS580-01-145A-4+P974 | 145 A | 138 A | 105 A | 75 kW | 55 kW |
| ACS580-01-106A-4+P974 | 106 A | 100 A | 87 A | 55 kW | 45 kW |
| ACS580-01-169A-4+P974 | 169 A | 161 A | 145 A | 90 kW | 75 kW |
| ACS580-01-046A-4+P974 | 45 A | 42.8 A | 37.7 A | 22 kW | 18.5 kW |
| ACS580-01-206A-4+N7511+P944+K492 | 206 A | 196 A | 169 A | 110 kW | 90 kW |
Common to all listed parts
| Customs Tariff Number | 85044099 |
| Made To Order | No |
| Minimum Order Quantity | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Efficiency Level | IE2 |
| UNSPSC | 39122001 |
