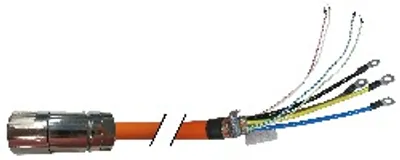

16 mm² motor cables with ring terminal ends Parts
Compare 16 mm² motor cables with ring terminal ends
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Dimensions – Length | Weight |
|---|---|---|
| 8BCM0006.1625B-0 | 6 m | 6.41 kg |
| 8BCM0007.1625B-0 | 7 m | 7.47 kg |
| 8BCM0008.1625B-0 | 8 m | 8.54 kg |
| 8BCM0003.1625B-0 | 3 m | 3.20 kg |
| 8BCM0005.1625B-0 | 5 m | 5.34 kg |
| 8BCM0010.1625B-0 | 10 m | 10.86 kg |
| 8BCM0015.1625B-0 | 15 m | 16.02 kg |
| 8BCM0020.1625B-0 | 20 m | 21.36 kg |
| 8BCM0025.1625B-0 | 25 m | 26.7 kg |
| 8BCM0004.1625B-0 | 4 m | 4.27 kg |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Cable cross section | 4 x 16 mm² + 2x (2 x 1.5 mm²) |
| Power lines – Quantity | 4 |
| Power lines – Wire insulation | PP |
| Power lines – Wire colors | Green/Yellow, ; Black, labeled in white U/L1/C/L+, V/L2, W/L3/D/L- |
