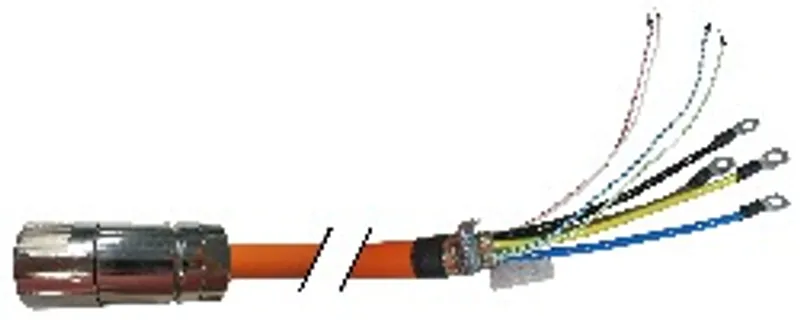

B&R 8BCM0020.1625B-0
- MPN
- 8BCM0020.1625B-0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 8BCM0020.1625B-0?
UL/CSA listed
Can be used in cable drag chains
Assembled specifically for use with ACOPOSmulti drive systems and B&R servo motors with motor connector size 1.5
Pre-assembled power line connections on the servo side with M8 ring terminal ends
Integrated shield plate
A shield plate is attached to ACOPOSmulti 8BCM motor cables. If this shield plate is correctly installed on the respective ACOPOSmulti 8BVI inverter module, no additional shielding measures are necessary.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Note | Pre-assembled power line connections on the servo side with M8 ring terminal ends |
| Cable cross section | 4 x 16 mm² + 2x (2 x 1.5 mm²) |
| Durability | Hydrolysis resistance per EN 50396; Halogen-free per EN 60754-1; PWIS per VW PV 3.10.7; Oil resistance per EN 60811-404; Flame propagation per EN 60332-1-2 |
Cable construction
| Power lines – Quantity | 4 |
| Power lines – Wire insulation | PP |
| Power lines – Wire colors | Green/Yellow, ; Black, labeled in white U/L1/C/L+, V/L2, W/L3/D/L- |
| Power lines – Variant | Copper stranded wire |
| Power lines – Cross section | 16 mm² |
| Power lines – Shield | No |
| Power lines – Stranding | No |
| Signal line – Quantity | 4 |
| Signal line – Wire insulation | PP |
| Signal line – Wire colors | Black, labeled in white 5, 6, 7, 8 |
| Signal line – Variant | Copper stranded wire |
| Signal line – Cross section | 4x 1.5 mm² |
| Signal line – Shield | Shielded in pairs, tinned copper braiding, optical coverage approx. 85% |
| Signal line – Stranding | No. 5+6, no. 7+8 |
| Outer jacket – Material | PUR |
| Outer jacket – Color | Orange, similar to RAL 2003 flat |
| Cable stranding | With filler elements and foil shield |
| Cable shield | Tinned copper braiding, optical coverage approx. 85% |
Connector
| Type | Intercontec 8-pin female motor connector, size 1.5 |
| Mating cycles | <500 |
| Contacts | 8 (4 power and 4 signal contacts) |
| Degree of protection per EN 60529 | IP66/67 when connected |
Electrical properties
| Test voltage – Wire - Wire | 4 kV |
| Test voltage – Wire - Shield | 4 kV |
| Conductor resistance – Power lines | 16 mm²: ≤1.21 Ω/km |
| Conductor resistance – Signal line | 1.5 mm²: ≤13.3 Ω/km |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Wall mounting | 87.36 A |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in conduit or cable duct | 72.8 A |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in cable tray | 91.00 A |
| Operating voltage | Max. 1000 VAC (UL) |
| Insulation resistance | ≥500 MΩ*km |
| Max. current-carrying capacity per IEC 60364-5-52 (cable) and IEC 60512 (connector) | 68 A (note: Rated current at 40°C. Use at higher temperatures is possible with derating.) |
Ambient conditions
| Temperature – Storage | -30°C to +90°C |
| Temperature – Transport | -30°C to +90°C |
| Temperature – Moving | -30°C to +90°C |
| Temperature – Static | -50°C to +90°C |
Mechanical properties
| Dimensions – Length | 20 m |
| Dimensions – Diameter | 23.6 mm ±0.4 mm |
| Bend radius – Single bend | ≥96 mm |
| Bend radius – Moving | ≥180 mm |
| Drag chain data – Acceleration | 50 m/s² up to 3 m travel path ; 15 m/s² up to 10 m travel path ; 5 m/s² up to 20 m travel path |
| Drag chain data – Flex cycles | >10,000,000 (note: With a bend radius of 180 mm.) |
| Drag chain data – Velocity | ≤5 m/s |
| Weight | 21.36 kg |
