B&R 8BCM0004.1625B-0
ACOPOSmulti motor cable, length 4 m
- MPN
- 8BCM0004.1625B-0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8BCM0004.1625B-0?

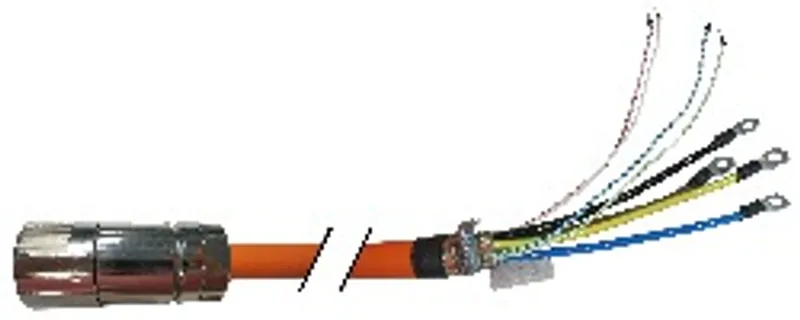

ACOPOSmulti motor cable, length 4 m, 4 x 16 mm² + 2x (2 x 1.5 mm²), 8-pin female speedtec motor connector size 1.5, integrated shield plate, M8 ring terminal ends on the servo side, can be used in cable drag chains
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Note | Pre-assembled power line connections on the servo side with M8 ring terminal ends |
| Cable cross section | 4 x 16 mm² + 2x (2 x 1.5 mm²) |
| Durability | Hydrolysis resistance per EN 50396; Halogen-free per EN 60754-1; PWIS per VW PV 3.10.7; Oil resistance per EN 60811-404; Flame propagation per EN 60332-1-2 |
Cable construction
| Power lines – Quantity | 4 |
| Power lines – Wire insulation | PP |
| Power lines – Wire colors | Green/Yellow, ; Black, labeled in white U/L1/C/L+, V/L2, W/L3/D/L- |
| Power lines – Variant | Copper stranded wire |
| Power lines – Cross section | 16 mm² |
| Power lines – Shield | No |
| Power lines – Stranding | No |
| Signal line – Quantity | 4 |
| Signal line – Wire insulation | PP |
| Signal line – Wire colors | Black, labeled in white 5, 6, 7, 8 |
| Signal line – Variant | Copper stranded wire |
| Signal line – Cross section | 4x 1.5 mm² |
| Signal line – Shield | Shielded in pairs, tinned copper braiding, optical coverage approx. 85% |
| Signal line – Stranding | No. 5+6, no. 7+8 |
| Outer jacket – Material | PUR |
| Outer jacket – Color | Orange, similar to RAL 2003 flat |
| Cable stranding | With filler elements and foil shield |
| Cable shield | Tinned copper braiding, optical coverage approx. 85% |
Connector
| Type | Intercontec 8-pin female motor connector, size 1.5 |
| Mating cycles | <500 |
| Contacts | 8 (4 power and 4 signal contacts) |
| Degree of protection per EN 60529 | IP66/67 when connected |
Electrical properties
| Test voltage – Wire - Wire | 4 kV |
| Test voltage – Wire - Shield | 4 kV |
| Conductor resistance – Power lines | 16 mm²: ≤1.21 Ω/km |
| Conductor resistance – Signal line | 1.5 mm²: ≤13.3 Ω/km |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Wall mounting | 87.36 A |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in conduit or cable duct | 72.8 A |
| Current-carrying capacity per DIN VDE 0298 part 4, table 11 – Installed in cable tray | 91.00 A |
| Operating voltage | Max. 1000 VAC (UL) |
| Insulation resistance | ≥500 MΩ*km |
| Max. current-carrying capacity per IEC 60364-5-52 (cable) and IEC 60512 (connector) | 68 A (note: Rated current at 40°C. Use at higher temperatures is possible with derating.) |
Ambient conditions
| Temperature – Storage | -30°C to +90°C |
| Temperature – Transport | -30°C to +90°C |
| Temperature – Moving | -30°C to +90°C |
| Temperature – Static | -50°C to +90°C |
Mechanical properties
| Dimensions – Length | 4 m |
| Dimensions – Diameter | 23.6 mm ±0.4 mm |
| Bend radius – Single bend | ≥96 mm |
| Bend radius – Moving | ≥180 mm |
| Drag chain data – Acceleration | 50 m/s² up to 3 m travel path ; 15 m/s² up to 10 m travel path ; 5 m/s² up to 20 m travel path |
| Drag chain data – Flex cycles | >10,000,000 (note: With a bend radius of 180 mm.) |
| Drag chain data – Velocity | ≤5 m/s |
| Weight | 4.27 kg |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
Certificates (1)
8BCM0004.1625B-0: frequently asked questions
When can 8BCM0004.1625B-0 be shipped?
8BCM0004.1625B-0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8BCM0004.1625B-0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8BCM0004.1625B-0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BCM0004.1625B-0, subject to availability and destination.
