System modules for Compact-S PLC Parts
Compare System modules for Compact-S PLC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Power consumption – Bus | Temperature – Derating | Pitch |
|---|---|---|---|

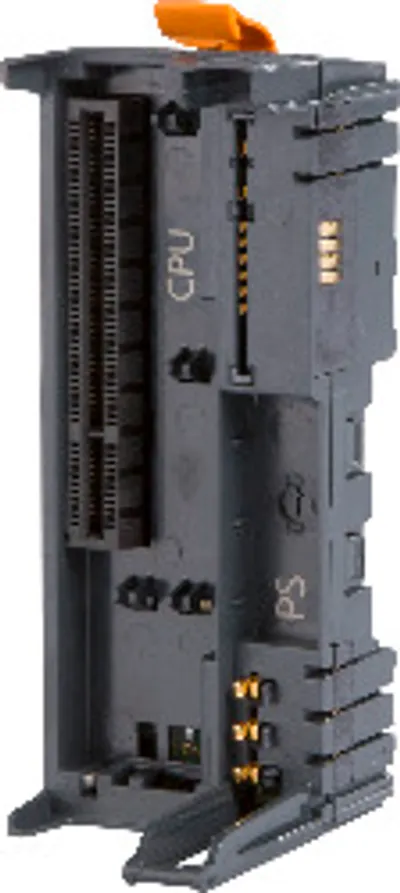

| X20BB52 | 0.55 W | - | 37.5 +0.2 mm |

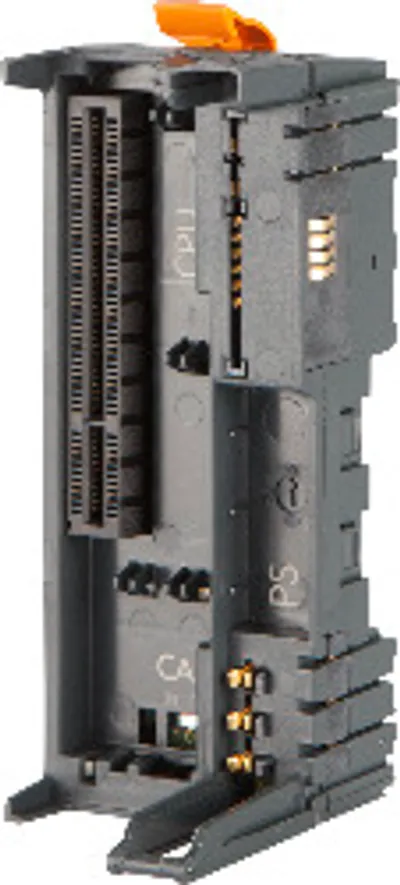

| X20BB57 | 0.55 W | - | 37.5 +0.2 mm |

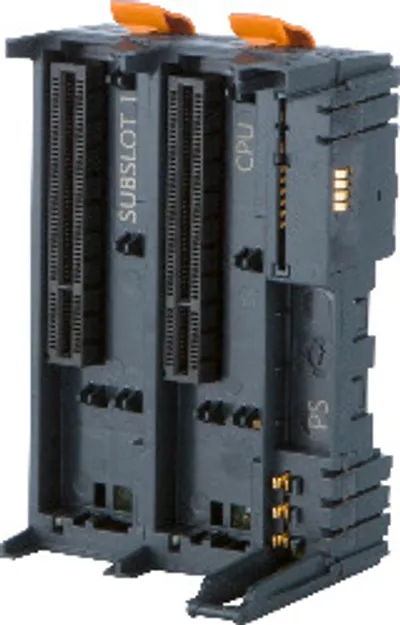

| X20BB62 | 0.94 W | - | 62.5 +0.2 mm |

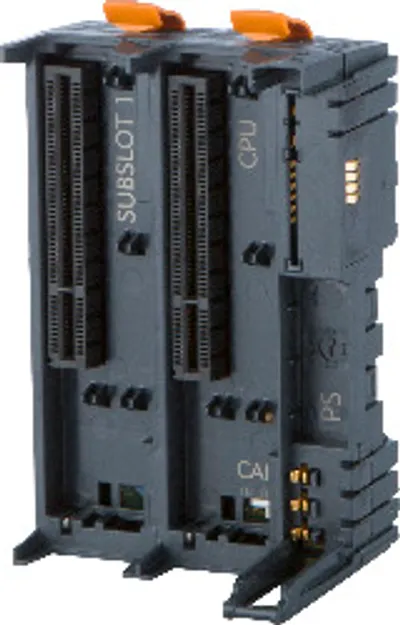

| X20BB67 | 0.94 W | - | 62.5 +0.2 mm |

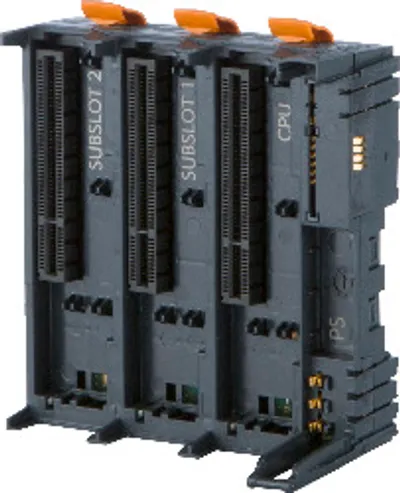

| X20BB72 | 1.17 W | - | 87.5 +0.2 mm |

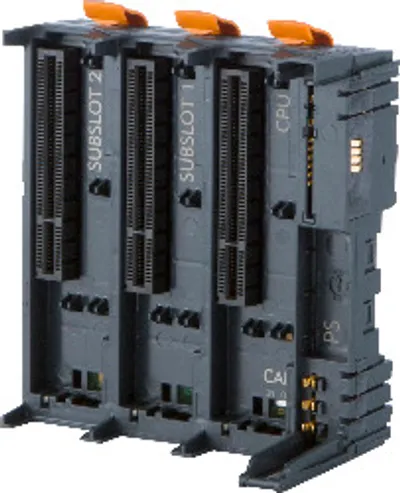

| X20BB77 | 1.17 W | - | 87.5 +0.2 mm |

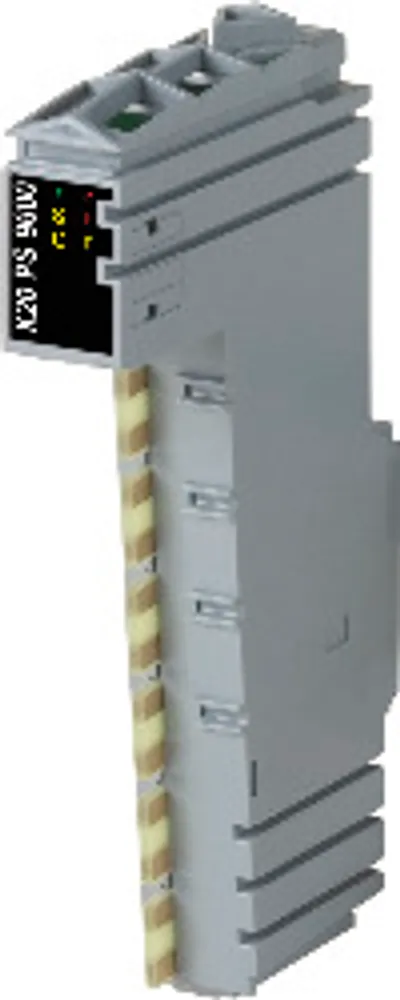

| X20PS9600 | — | See section "Derating". | 12.5 +0.2 mm |
| X20PS9602 | — | See section "Derating". | 12.5 +0.2 mm |

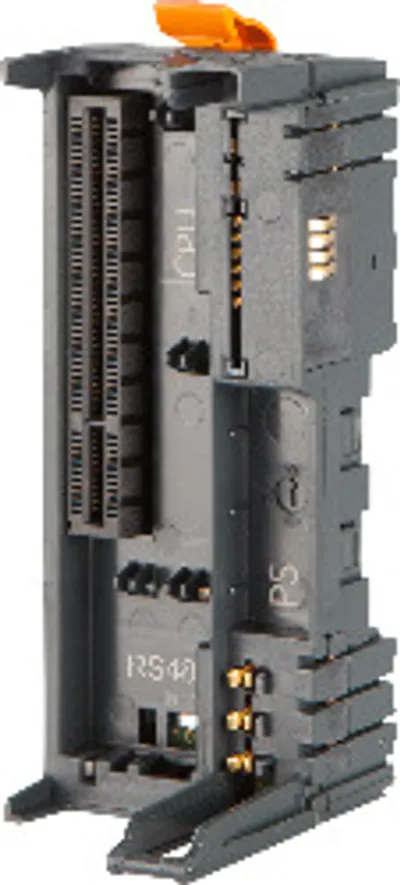

| X20BB53 | 0.55 W | - | 37.5 +0.2 mm |

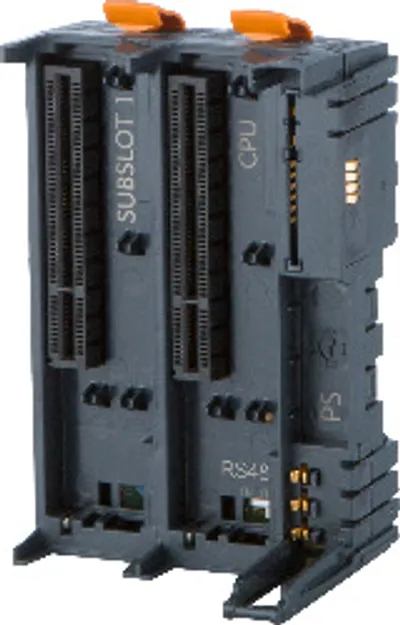

| X20BB63 | 0.94 W | - | 62.5 +0.2 mm |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Additional power dissipation caused by actuators (resistive) [W] | - |
| Permissible contact load | 10 A |
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
