Mitsubishi FREQROL inverter – FREQROL-A800 Parts
Available on requestFR-A846-00620-1-60C3 Mitsubishi FREQROL inverter FR-A800MPN: FR-A846-00620-1-60C3 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-A846-00470-1-60C3 Mitsubishi FREQROL inverter FR-A800MPN: FR-A846-00470-1-60C3 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-A846-00380-1-60C3 Mitsubishi FREQROL inverter FR-A800MPN: FR-A846-00380-1-60C3 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-A846-00310-1-60C3 Mitsubishi FREQROL inverter FR-A800MPN: FR-A846-00310-1-60C3 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-A846-00250-1-60C3 Mitsubishi FREQROL inverter FR-A800MPN: FR-A846-00250-1-60C3 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-A846-00170-1-60C3 Mitsubishi FREQROL inverter FR-A800MPN: FR-A846-00170-1-60C3 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-A846-00126-1-60C3 Mitsubishi FREQROL inverter FR-A800MPN: FR-A846-00126-1-60C3 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-A846-00083-1-60C3 Mitsubishi FREQROL inverter FR-A800MPN: FR-A846-00083-1-60C3 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-A846-00052-1-60C3 Mitsubishi FREQROL inverter FR-A800MPN: FR-A846-00052-1-60C3 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-A846-00038-1-60C3 Mitsubishi FREQROL inverter FR-A800MPN: FR-A846-00038-1-60C3 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-A846-00023-1-60C3 Mitsubishi FREQROL inverter FR-A800MPN: FR-A846-00023-1-60C3 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestFR-A872-07150-2-60P Mitsubishi FREQROL inverter FR-A800MPN: FR-A872-07150-2-60P · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-A872-06470-2-60P Mitsubishi FREQROL inverter FR-A800MPN: FR-A872-06470-2-60P · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-A872-05690-2-60P Mitsubishi FREQROL inverter FR-A800MPN: FR-A872-05690-2-60P · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote
Available on requestFR-A842-12120-2-60P Mitsubishi FREQROL inverter FR-A800MPN: FR-A842-12120-2-60P · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-A842-10940-2-60P Mitsubishi FREQROL inverter FR-A800MPN: FR-A842-10940-2-60P · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-A842-09620-2-60P Mitsubishi FREQROL inverter FR-A800MPN: FR-A842-09620-2-60P · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-A872-07150-E2-60 Mitsubishi FREQROL inverter FR-A800MPN: FR-A872-07150-E2-60 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-A872-06470-E2-60 Mitsubishi FREQROL inverter FR-A800MPN: FR-A872-06470-E2-60 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-A872-05690-E2-60 Mitsubishi FREQROL inverter FR-A800MPN: FR-A872-05690-E2-60 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-A872-07150-E1-60 Mitsubishi FREQROL inverter FR-A800MPN: FR-A872-07150-E1-60 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-A872-06470-E1-60 Mitsubishi FREQROL inverter FR-A800MPN: FR-A872-06470-E1-60 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteAvailable on requestFR-A872-05690-E1-60 Mitsubishi FREQROL inverter FR-A800MPN: FR-A872-05690-E1-60 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quote

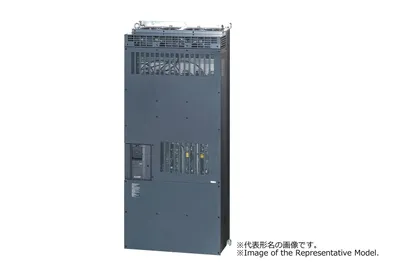

Available on requestFR-A862-08500-E1-60 Mitsubishi FREQROL inverter FR-A800MPN: FR-A862-08500-E1-60 · Mitsubishi Electric (Factory Automation)
Price on request
Request a quoteCompare Mitsubishi FREQROL inverter – FREQROL-A800
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model name | Inverter capacity (kW) | Applicable motor capacity (kW) *1: ND | Output: Rated capacity (kVA) *2: ND | Approx. mass (kg) |
|---|---|---|---|---|---|
| FR-A846-00620-1-60C3 | FR-A846-00620-1-60C3 | 22.0 | 22.0 | 34.0 | 59.0 |
| FR-A846-00470-1-60C3 | FR-A846-00470-1-60C3 | 18.5 | 18.5 | 29.0 | 27.0 |
| FR-A846-00380-1-60C3 | FR-A846-00380-1-60C3 | 15.0 | 15.0 | 24.0 | 27.0 |
| FR-A846-00310-1-60C3 | FR-A846-00310-1-60C3 | 11.0 | 11.0 | 18.0 | 26.0 |
| FR-A846-00250-1-60C3 | FR-A846-00250-1-60C3 | 7.5 | 7.5 | 13.0 | 26.0 |
| FR-A846-00170-1-60C3 | FR-A846-00170-1-60C3 | 5.5 | 5.5 | 9.1 | 17.0 |
| FR-A846-00126-1-60C3 | FR-A846-00126-1-60C3 | 3.7 | 3.7 | 6.9 | 16.0 |
| FR-A846-00083-1-60C3 | FR-A846-00083-1-60C3 | 2.2 | 2.2 | 4.6 | 15.0 |
| FR-A846-00052-1-60C3 | FR-A846-00052-1-60C3 | 1.5 | 1.5 | 3.0 | 15.0 |
| FR-A846-00038-1-60C3 | FR-A846-00038-1-60C3 | 0.75 | 0.75 | 1.9 | 15.0 |
| FR-A846-00023-1-60C3 | FR-A846-00023-1-60C3 | 0.4 | 0.4 | 1.1 | 15.0 |
| FR-A872-07150-2-60P | FR-A872-07150-2-60P | 560.0 | 560.0 | 773.0 | — |
| FR-A872-06470-2-60P | FR-A872-06470-2-60P | 500.0 | 500.0 | 680.0 | — |
| FR-A872-05690-2-60P | FR-A872-05690-2-60P | 450.0 | 450.0 | 612.0 | — |
| FR-A842-12120-2-60P | FR-A842-12120-2-60P | 500.0 | — | — | — |
| FR-A842-10940-2-60P | FR-A842-10940-2-60P | 450.0 | — | — | — |
| FR-A842-09620-2-60P | FR-A842-09620-2-60P | 400.0 | — | — | — |
| FR-A872-07150-E2-60 | FR-A872-07150-E2-60 | 560.0 | 560.0 | 773.0 | 186.0 |
| FR-A872-06470-E2-60 | FR-A872-06470-E2-60 | 500.0 | 500.0 | 680.0 | 186.0 |
| FR-A872-05690-E2-60 | FR-A872-05690-E2-60 | 450.0 | 450.0 | 612.0 | 186.0 |
| FR-A872-07150-E1-60 | FR-A872-07150-E1-60 | 560.0 | 560.0 | 773.0 | 186.0 |
| FR-A872-06470-E1-60 | FR-A872-06470-E1-60 | 500.0 | 500.0 | 680.0 | 186.0 |
| FR-A872-05690-E1-60 | FR-A872-05690-E1-60 | 450.0 | 450.0 | 612.0 | 186.0 |
| FR-A862-08500-E1-60 | FR-A862-08500-E1-60 | 450.0 | 450.0 | 661.0 | 243.0 |
Common to all listed parts
| Series | FREQROL inverter |
| Category | FR-A800 |
| Control: Control method: Common | Soft-PWM control/High carrier frequency PWM control |
| Control: Frequency setting and resolution: Digital input | 0.01 Hz |
| Control: Frequency accuracy: Analog input | Within ±0.2 % of the maximum output frequency (25 °C ±10 °C) |
| Control: Frequency accuracy: Digital input | 0.01 % or less of the set output frequency |
| Control: Torque boost | Manual torque boost (induction motor only) |
| Operation: Frequency setting signal: Number of analog input | 3 |
