Mitsubishi MELSEC-Q Series – Base Parts

Showing 49–69 of 69 parts

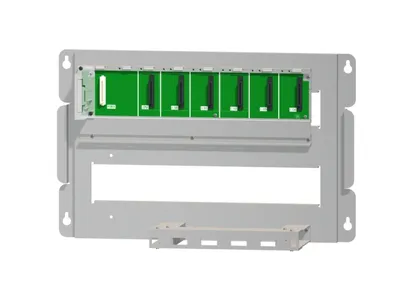

Mitsubishi Electric Q35BL-E – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q35BL-E

Mitsubishi MELSEC-Q Series Main base

Mitsubishi Electric Q35BL – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q35BL

Mitsubishi MELSEC-Q Series Main base

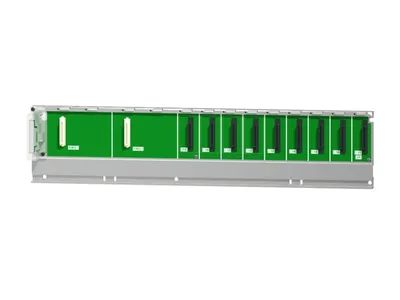

Mitsubishi Electric Q38RB-E – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q38RB-E

Mitsubishi MELSEC-Q Series Main base

Mitsubishi Electric Q38RB – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q38RB

Mitsubishi MELSEC-Q Series Main base

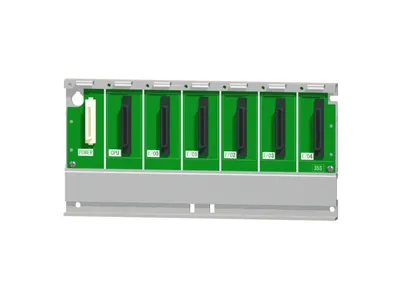

Mitsubishi Electric Q35SB-E – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q35SB-E

Mitsubishi MELSEC-Q Series Main base

Mitsubishi Electric Q35SB – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q35SB

Mitsubishi MELSEC-Q Series Main base

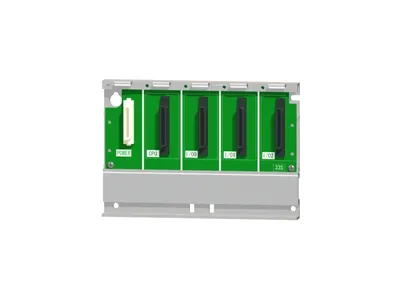

Mitsubishi Electric Q33SB-E – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q33SB-E

Mitsubishi MELSEC-Q Series Main base

Mitsubishi Electric Q33SB – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q33SB

Mitsubishi MELSEC-Q Series Main base

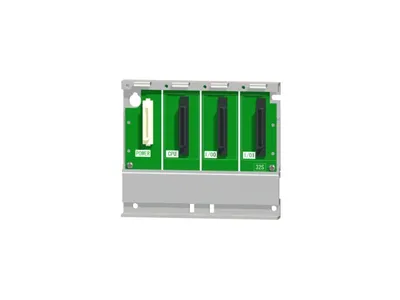

Mitsubishi Electric Q32SB-E – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q32SB-E

Mitsubishi MELSEC-Q Series Main base

Mitsubishi Electric Q32SB – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q32SB

Mitsubishi MELSEC-Q Series Main base

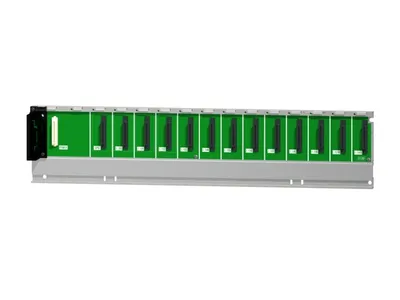

Mitsubishi Electric Q312DB – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q312DB

Mitsubishi MELSEC-Q Series Main base

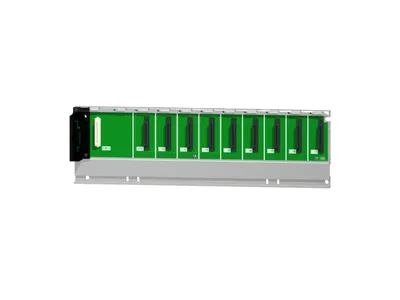

Mitsubishi Electric Q38DB – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q38DB

Mitsubishi MELSEC-Q Series Main base

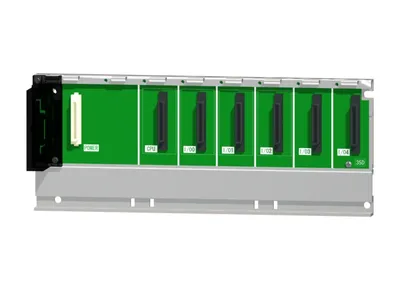

Mitsubishi Electric Q35DB – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q35DB

Mitsubishi MELSEC-Q Series Main base

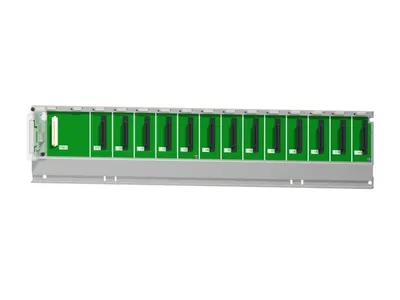

Mitsubishi Electric Q312B-E – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q312B-E

Mitsubishi MELSEC-Q Series Main base

Mitsubishi Electric Q312B – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q312B

Mitsubishi MELSEC-Q Series Main base

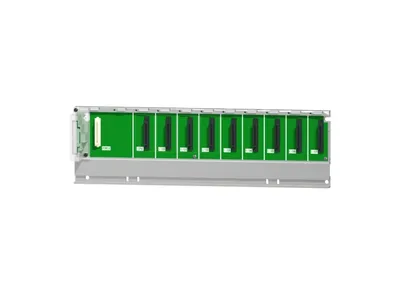

Mitsubishi Electric Q38B-E – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q38B-E

Mitsubishi MELSEC-Q Series Main base

Mitsubishi Electric Q38B – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q38B

Mitsubishi MELSEC-Q Series Main base

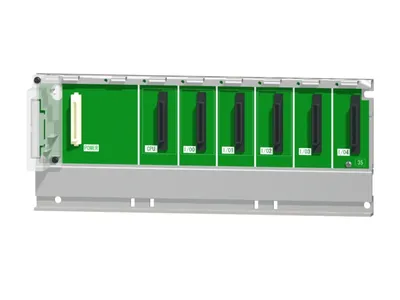

Mitsubishi Electric Q35B-E – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q35B-E

Mitsubishi MELSEC-Q Series Main base

Mitsubishi Electric Q35B – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q35B

Mitsubishi MELSEC-Q Series Main base

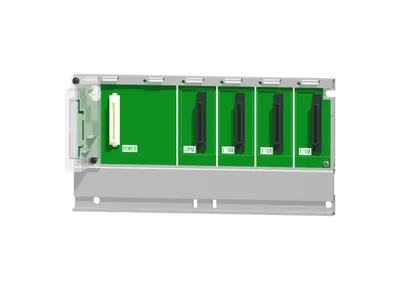

Mitsubishi Electric Q33B-E – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q33B-E

Mitsubishi MELSEC-Q Series Main base

Mitsubishi Electric Q33B – Mitsubishi MELSEC-Q Series Main base
Mitsubishi Electric
Q33B

Mitsubishi MELSEC-Q Series Main base

Compare Mitsubishi MELSEC-Q Series – Base

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNTypeNumber of mountable I/O modulesInternal current consumption (5 V DC)External dimensions: WidthWeight
Q35BL-ELarge type50.11 A382 mm1.87 kg
Q35BLLarge type50.11 A382 mm1.87 kg
Q38RB-ERedundant power supply type80.12 A439 mm0.47 kg
Q38RBRedundant power supply type80.12 A439 mm0.47 kg
Q35SB-ESlim type50.10 A197.5 mm0.21 kg
Q35SBSlim type50.10 A197.5 mm0.21 kg
Q33SB-ESlim type30.09 A142 mm0.15 kg
Q33SBSlim type30.09 A142 mm0.15 kg
Q32SB-ESlim type20.09 A114 mm0.12 kg
Q32SBSlim type20.09 A114 mm0.12 kg
Q312DBMultiple CPU high speed type120.24 A439 mm0.54 kg
Q38DBMultiple CPU high speed type80.23 A328 mm0.41 kg
Q35DBMultiple CPU high speed type50.23 A245 mm0.32 kg
Q312B-ENormal type120.13 A439 mm0.47 kg
Q312BNormal type120.13 A439 mm0.47 kg
Q38B-ENormal type80.12 A328 mm0.36 kg
Q38BNormal type80.12 A328 mm0.36 kg
Q35B-ENormal type50.11 A245 mm0.27 kg
Q35BNormal type50.11 A245 mm0.27 kg
Q33B-ENormal type30.11 A189 mm0.21 kg
Q33BNormal type30.11 A189 mm0.21 kg

Common to all listed parts

SeriesMELSEC-Q Series
CategoryMain base
General specificationsRefer to the general specifications of the CPU module.
