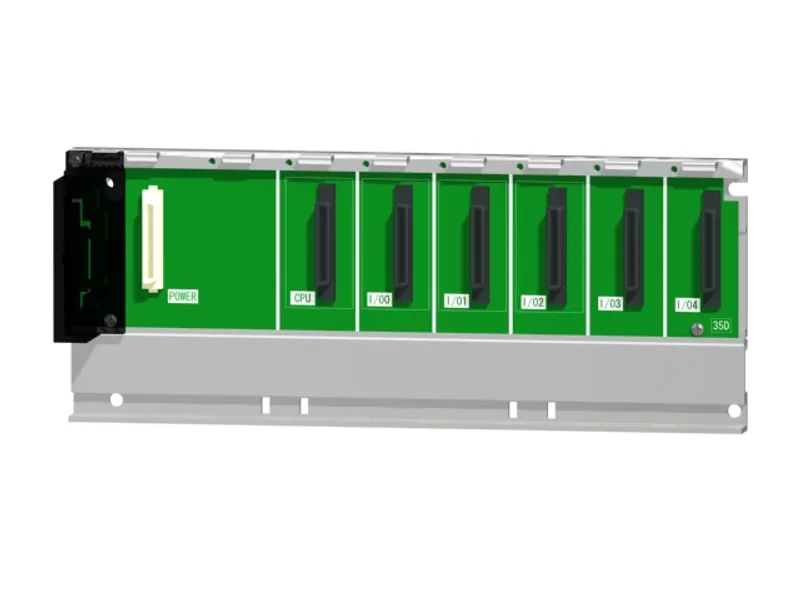

What is the Mitsubishi Electric Q35DB?

The Mitsubishi Electric Q35DB is a main base in the MELSEC-Q Series. 5 slots, power supply module required, for Q Series modules, multi-CPU high-speed communication supported. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryMain base
TypeMultiple CPU high speed type
Sales status2029/09 To be end of order (Mitsubishi Electric)
Outline5 slots, power supply module required, for Q Series modules, multi-CPU high-speed communication supported

Specifications

Number of mountable I/O modules5
Possibility of extensionExtendable
Applicable moduleMELSEC-Q series modules
Applicable power supply moduleMELSEC-Q series power supply module
Internal current consumption (5 V DC)0.23 A
Mounting hole sizeM4 screw hole or ø4.5 hole (for M4 screw)
External dimensions: Height98 mm
External dimensions: Width245 mm
External dimensions: Depth44.1 mm
Weight0.32 kg
DIN rail mounting adapter typeQ6DIN2 (sold separately)

Specifications

General specificationsRefer to the general specifications of the CPU module.
