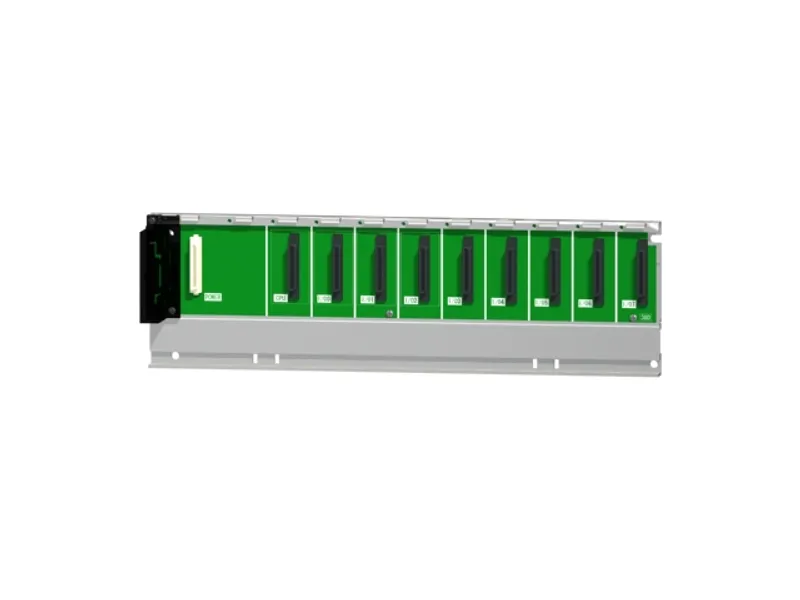

Mitsubishi Electric Q38DB

Mitsubishi MELSEC-Q Series Main base

MPN
Q38DB
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric Q38DB?

The Mitsubishi Electric Q38DB is a main base in the MELSEC-Q Series. 8 slots, power supply module required, for Q Series modules, multi-CPU high-speed transmission supported. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryMain base
TypeMultiple CPU high speed type
Sales status2029/09 To be end of order (Mitsubishi Electric)
Outline8 slots, power supply module required, for Q Series modules, multi-CPU high-speed transmission supported

Specifications

Number of mountable I/O modules8
Possibility of extensionExtendable
Applicable moduleMELSEC-Q series modules
Applicable power supply moduleMELSEC-Q series power supply module
Internal current consumption (5 V DC)0.23 A
Mounting hole sizeM4 screw hole or ø4.5 hole (for M4 screw)
External dimensions: Height98 mm
External dimensions: Width328 mm
External dimensions: Depth44.1 mm
Weight0.41 kg
DIN rail mounting adapter typeQ6DIN1 (sold separately)

Specifications

General specificationsRefer to the general specifications of the CPU module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

Q38DB: frequently asked questions

When can Q38DB be shipped?

Q38DB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q38DB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q38DB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q38DB, subject to availability and destination.
