Kinetix & Legacy Servo Drives, 2090 Motion Cables Parts
Compare Kinetix & Legacy Servo Drives, 2090 Motion Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cable style | Drive-end Connector Type | AWG size | Cable length | Nominal cross section conductor (AWG) |
|---|---|---|---|---|---|

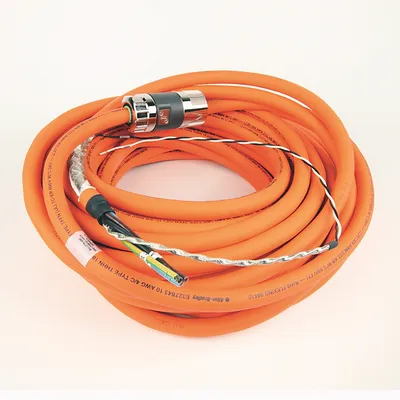

| 2090-CPBM7DF-10AF30 | — | — | — | — | — |

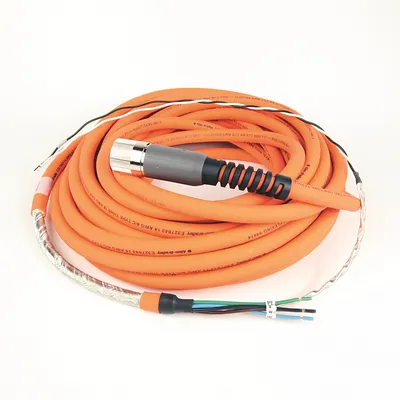

| 2090-CPBM7DF-14AF50 | — | — | — | — | — |

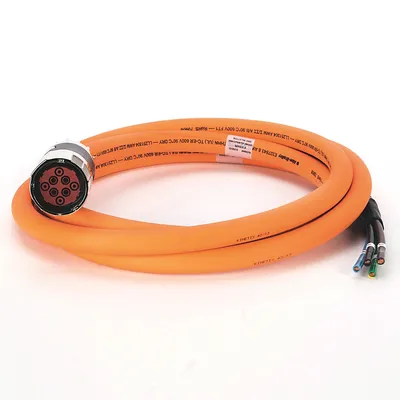

| 2090-CPWM7DF-08AA03 | — | — | — | — | — |
| 2090-CSBM1DF-18AA02 | Standard, Non-flex | Flying Lead at 5500 Drive End | 18 AWG | 2 m | 1.62 |

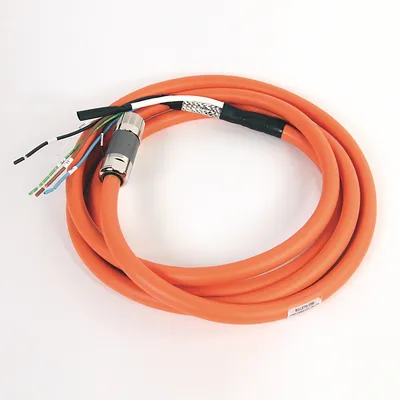

| 2090-CSBM1DF-18AA01 | Standard, Non-flex | Flying Lead at 5500 Drive End | 18 AWG | 1 m | 1.62 |
| 2090-CSBM1DF-14AF45 | Continuous-flex | — | 14 AWG | 45 m | 4.1 |
| 2090-CSBM1DF-14AF35 | Continuous-flex | Drive-end, flying-lead | 14 AWG | 35 m | 4.1 |
| 2090-CSBM1DF-14AF18 | Continuous-flex | — | 14 AWG | 18 m | 4.1 |
| 2090-CSBM1DF-14AF40 | Continuous-flex | Drive-end, flying-lead | 14 AWG | 40 m | 4.1 |
| 2090-CSBM1DG-14AA40 | Standard, Non-flex | Drive-end, long flying-leads | 14 AWG | 40 m | 4.1 |
| 2090-CSBM1DG-14AA25 | Standard, Non-flex | Drive-end, long flying-leads | 14 AWG | 25 m | 4.1 |
| 2090-CSBM1DF-14AF20 | Continuous-flex | Flying Lead at 5500 Drive End | 14 AWG | 20 m | 4.1 |
| 2090-CSBM1DG-14AA13 | Standard, Non-flex | Drive-End, Flying Lead, hybrid | 14 AWG | 13 m | 4.1 |

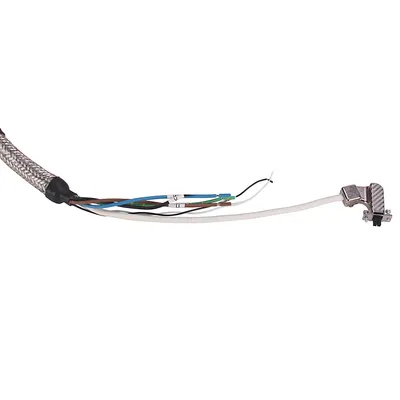

| 2090-CSBM1DG-14AA24 | Standard, Non-flex | Drive-End, Flying Lead, hybrid | 14 AWG | 24 m | 4.1 |
| 2090-CSBM1DG-14AA07 | Standard, Non-flex | Drive-end, long flying-leads | 14 AWG | 7 m | 4.1 |
| 2090-CSBM1DF-18AF40 | Continuous-flex | Drive-end, flying-lead | 18 AWG | 40 m | 1.62 |
| 2090-CSBM1DF-18AF30 | Continuous-flex | Drive-End, Flying Lead, K5500 | 18 AWG | 30 m | 1.62 |
| 2090-CSBM1DG-14AA14 | Standard, Non-flex | Drive-End, Flying Lead, hybrid | 14 AWG | 14 m | 4.1 |
| 2090-CSBM1DG-14AA09 | Standard, Non-flex | Drive-end, long flying-leads | 14 AWG | 9 m | 4.1 |
| 2090-CSBM1DG-10AF30 | Continuous-flex | Drive-end, long flying-leads | 10 AWG | 30 m | 10.38 |
| 2090-CSBM1DE-10AF08 | Continuous-flex | Drive-end, connector kit | 10 AWG | 8 m | 10.38 |
| 2090-CSBM1DE-14AA06 | Standard, non-flexible | Flying Lead at 5700 Drive End | 14 AWG | 6 m | 4.1 |
| 2090-CSBM1DE-10AF18 | Continuous-flex | Drive-end, connector kit | 10 AWG | 18 m | 10.38 |
| 2090-CSBM1DE-18AF16 | Continuous-flex | Drive-end, connector kit | 18 AWG | 16 m | 1.62 |
Common to all listed parts
| Lifecycle | Active |
| Repair options available | No |
