Kinetix & Legacy Servo Drives, 2090 Motion Cables Parts
Compare Kinetix & Legacy Servo Drives, 2090 Motion Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cable style | AWG size | Cable length | Nominal cross section conductor (AWG) | Drive-end Connector Type |
|---|---|---|---|---|---|

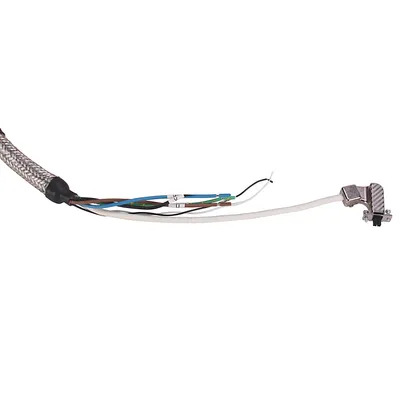

| 2090-CSBM1DE-14AA25 | Standard, Non-flex | 14 AWG | 25 m | 4.1 | — |
| 2090-CSBM1DG-18AA30 | Standard, Non-flex | 18 AWG | 30 m | 1.62 | Drive-end, long flying-leads |
| 2090-CSBM1DG-18AA15 | Standard, Non-flex | 18 AWG | 15 m | 1.62 | Drive-end, long flying-leads |
| 2090-CSBM1DG-14AF29 | Continuous-flex | 14 AWG | 29 m | 4.1 | Drive-End, Flying Lead, hybrid |
| 2090-CSBM1DE-10AF40 | Continuous-flexible | 10 AWG | 40 m | 10.38 | — |
| 2090-CSBM1DE-10AF07 | Continuous-flexible | 10 AWG | 7 m | 10.38 | — |
| 2090-CSWM1DE-14AA04 | Standard, Non-flex | 14 AWG | 4 m | 4.1 | — |
| 2090-CSWM1DF-14AA08 | Standard, Non-flex | 14 AWG | 8 m | 4.1 | Flying Lead at 5500 Drive End |
| 2090-CSWM1DF-14AA02 | Standard, Non-flex | 14 AWG | 2 m | 4.1 | Flying Lead at 5500 Drive End |
| 2090-CSWM1DG-14AA07 | Standard, Non-flex | 14 AWG | 7 m | 4.1 | Drive-end, long flying-leads |
| 2090-CSWM1DG-14AA05 | Standard, Non-flex | 14 AWG | 5 m | 4.1 | — |

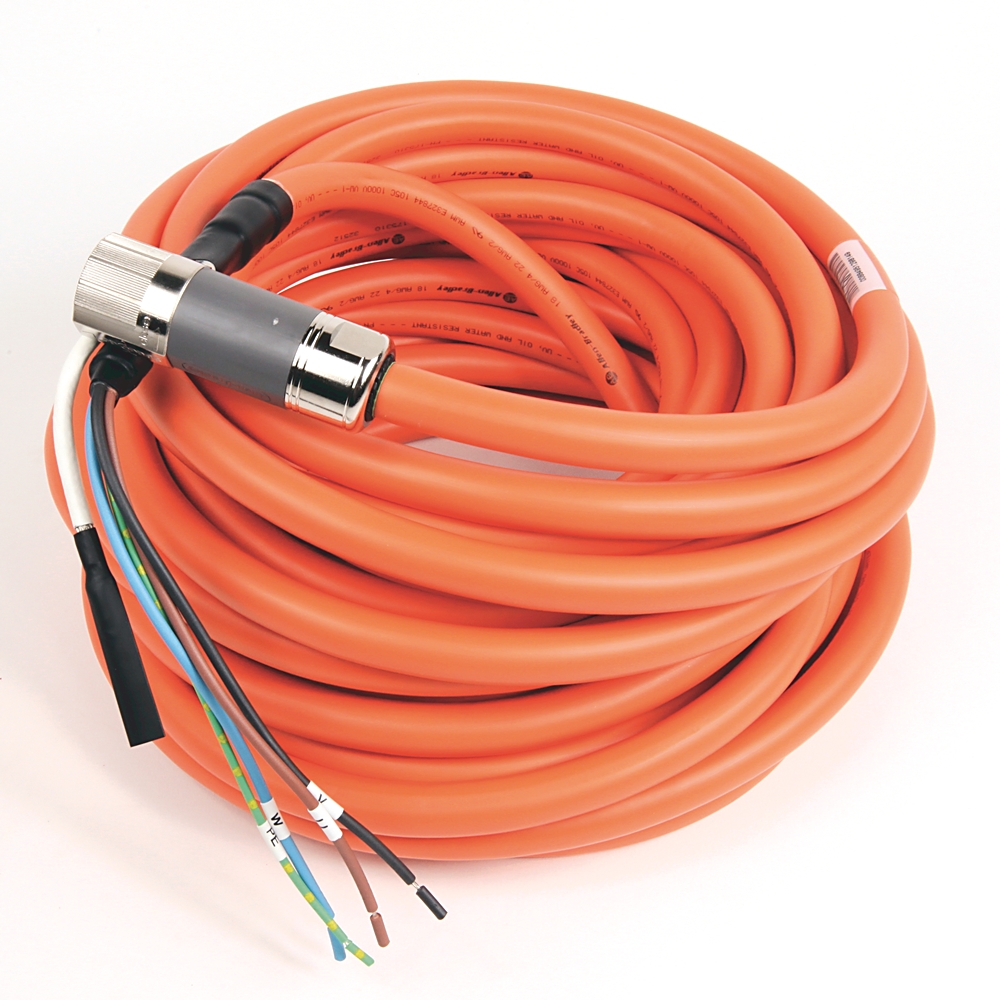

| 2090-CSWM1DF-18AA15 | Standard, Non-flex | 18 AWG | 15 m | 1.62 | Flying Lead at 5500 Drive End |
| 2090-CSBM1E1-18AF04 | Continuous-flex | 18 AWG | 4 m | 1.62 | Extension Receptor |
| 2090-CSBM1E1-18AF05 | Continuous-flexible | 18 AWG | 5 m | 1.62 | — |
| 2090-CSBM1DE-18AA22 | Standard, Non-flex | 18 AWG | 22 m | 1.62 | Flying Lead at 5700 Drive End |
| 2090-CSBM1DE-18AA11 | Standard, Non-flex | 18 AWG | 11 m | 1.62 | Drive-end, connector kit |
| 2090-CSWM1DG-18AA40 | Standard, Non-flex | 18 AWG | 40 m | 1.62 | Drive-End, Flying Lead, hybrid |
| 2090-CSWM1DG-18AA25 | Standard, Non-flex | 18 AWG | 25 m | 1.62 | Drive-end, long flying-leads |
| 2090-CSWM1DG-18AA12 | Standard, Non-flex | 18 AWG | 12 m | 1.62 | Drive-end, long flying-leads |
| 2090-CSBM1E1-10AF03 | Continuous-flexible | 10 AWG | 3 m | 10.38 | — |
| 2090-CSWM1DG-14AA15 | Standard, Non-flex | 14 AWG | 15 m | 4.1 | Drive-end, long flying-leads |
| 2090-CSBM1E1-14AF11 | Continuous-flex | 14 AWG | 11 m | 4.1 | Extension Receptor |
| 2090-CSBM1E1-14AF05 | Continuous-flex | 14 AWG | 5 m | 4.1 | Extension Receptor |

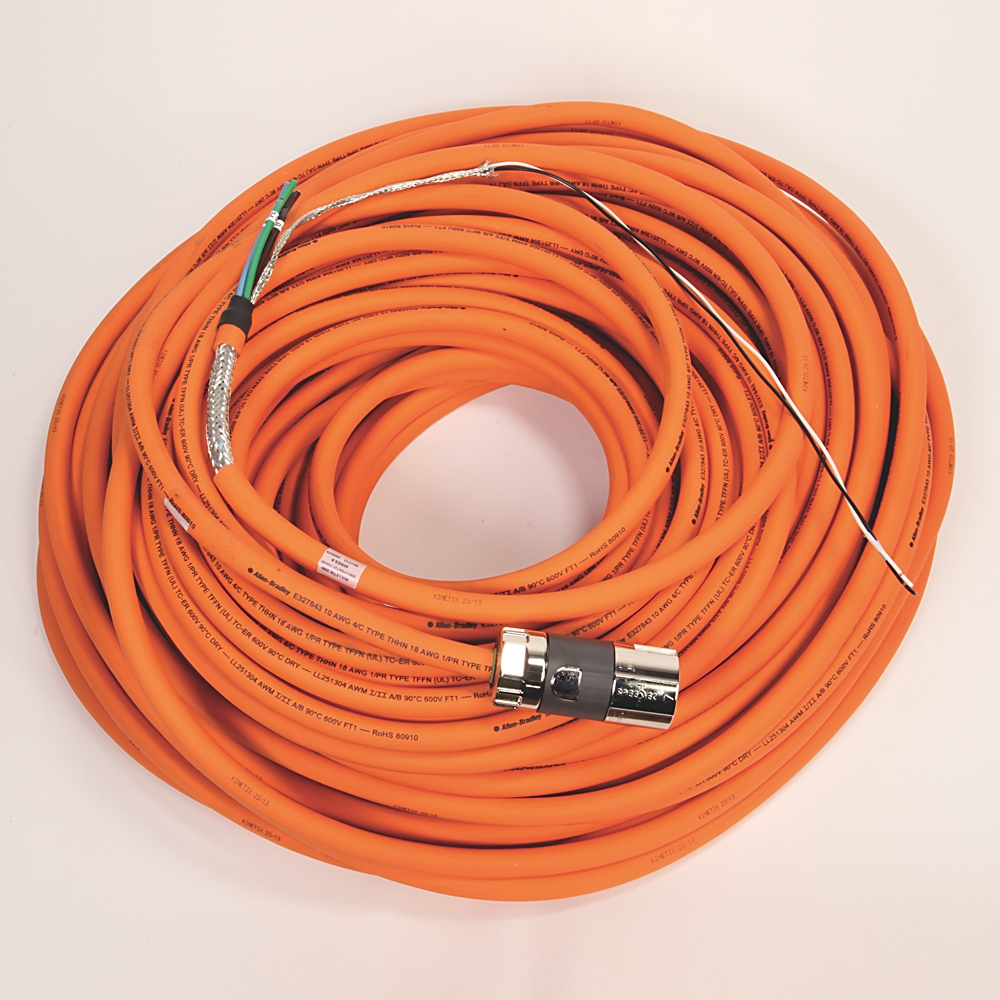

| 2090-CPBM7DF-10AA60 | — | — | — | — | — |
Common to all listed parts
| Lifecycle | Active |
| Repair options available | No |
