Kinetix & Legacy Servo Drives, 2090 Motion Cables Parts
Compare Kinetix & Legacy Servo Drives, 2090 Motion Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cable style | Drive-end Connector Type | AWG size | Cable length | Nominal cross section conductor (AWG) |
|---|---|---|---|---|---|
| 2090-CSBM1DE-14AF16 | Continuous-flex | Drive-end, connector kit | 14 AWG | 16 m | 4.1 |
| 2090-CSBM1DE-18AA90 | Standard, Non-flex | Drive-end, connector kit | 18 AWG | 90 m | 1.62 |
| 2090-CSBM1DE-18AF21 | Continuous-flex | Drive-end, connector kit | 18 AWG | 21 m | 1.62 |
| 2090-CSBM1DE-14AF34 | Continuous-flex | Drive-end, connector kit | 14 AWG | 34 m | 4.1 |
| 2090-CSBM1DE-18AF27 | Continuous-flexible | — | 18 AWG | 27 m | 1.62 |
| 2090-CSBM1DE-14AF12 | Continuous-flex | Drive-end, connector kit | 14 AWG | 12 m | 4.1 |

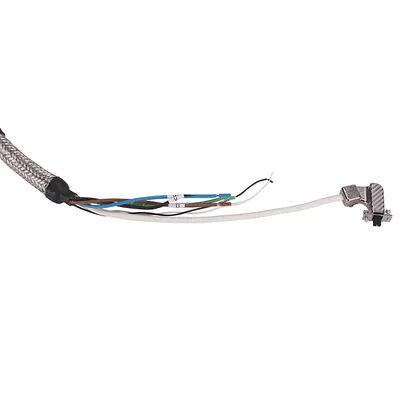

| 2090-CSBM1DE-18AF14 | Continuous-flex | Drive-end, connector kit | 18 AWG | 14 m | 1.62 |
| 2090-CSBM1DE-18AF08 | Continuous-flex | Drive-end, connector kit | 18 AWG | 8 m | 1.62 |
| 2090-CSBM1DE-18AA37 | Standard, non-flexible | Flying Lead at 5700 Drive End | 18 AWG | 37 m | 1.62 |
| 2090-CSBM1DE-14AF19 | Continuous-flexible | Drive-end, connector kit | 14 AWG | 19 m | 4.1 |
| 2090-CSBM1DE-14AF18 | Continuous-flexible | — | 14 AWG | 18 m | 4.1 |
| 2090-CSBM1DF-14AF14 | Continuous-flex | Drive-end, flying-lead | 14 AWG | 14 m | 4.1 |
| 2090-CSBM1DE-14AF11 | Continuous-flexible | — | 14 AWG | 11 m | 4.1 |
| 2090-CSBM1DF-14AF09 | Continuous-flex | Drive-End, Flying Lead, K5500 | 14 AWG | 9 m | 4.1 |
| 2090-CSBM1DF-14AF08 | Continuous-flexible | — | 14 AWG | 8 m | 4.1 |
| 2090-CSBM1DE-14AF08 | Continuous-flex | Drive-end, connector kit | 14 AWG | 8 m | 4.1 |
| 2090-CSBM1DF-14AF05 | Continuous-flex | Drive-End, Flying Lead, K5500 | 14 AWG | 5 m | 4.1 |
| 2090-CSBM1DF-14AF01 | Continuous-flexible | — | 14 AWG | 1 m | 4.1 |
| 2090-CSBM1DF-14AF06 | Continuous-flex | Drive-end, flying-lead | 14 AWG | 6 m | 4.1 |

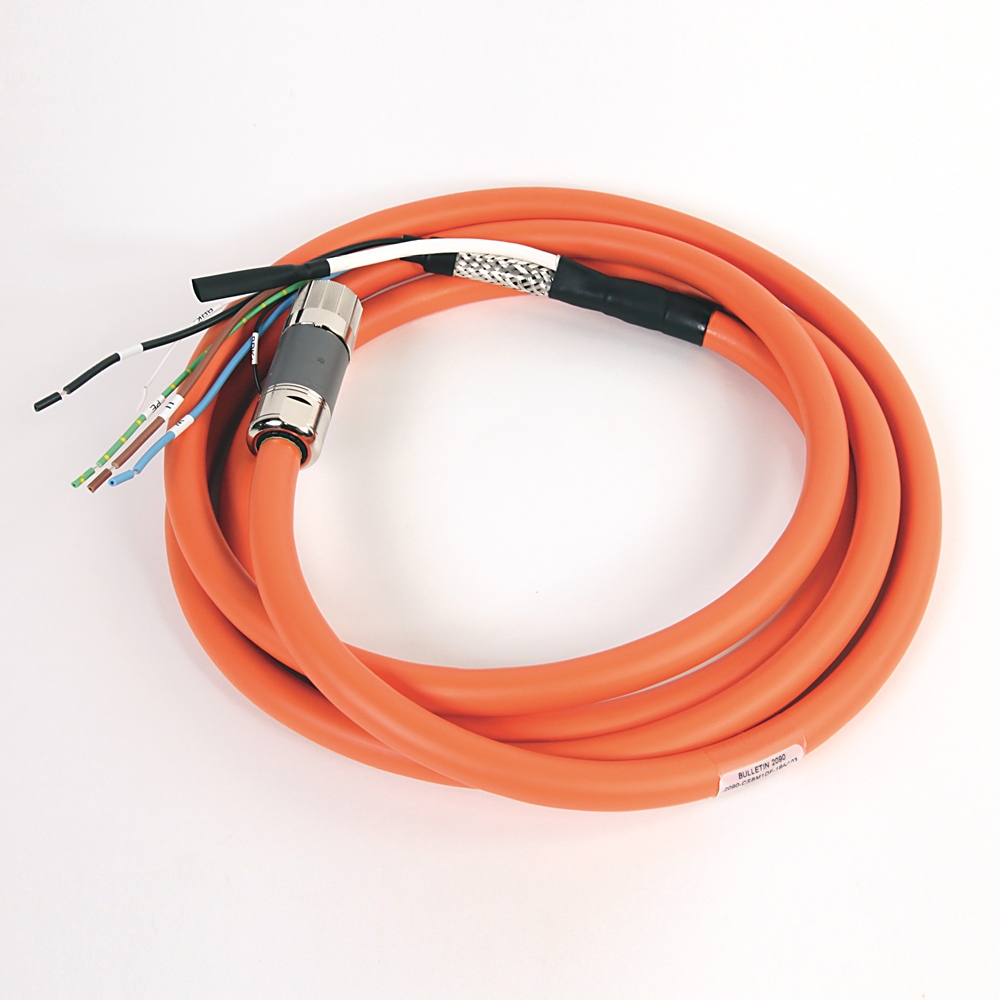

| 2090-CSBM1DF-18AA40 | Standard, Non-flex | Flying Lead at 5500 Drive End | 18 AWG | 40 m | 1.62 |
| 2090-CSBM1DF-14AF04 | Continuous-flex | Drive-end, flying-lead | 14 AWG | 4 m | 4.1 |

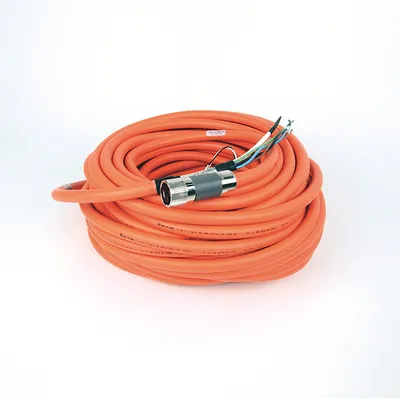

| 2090-CSBM1DF-14AA35 | Standard, Non-flex | Flying Lead at 5500 Drive End | 14 AWG | 35 m | 4.1 |
| 2090-CSBM1DF-18AA06 | Standard, Non-flex | Flying Lead at 5500 Drive End | 18 AWG | 6 m | 1.62 |
| 2090-CSBM1DF-18AF15 | Continuous-flex | Flying Lead at 5500 Drive End | 18 AWG | 15 m | 1.62 |
Common to all listed parts
| Lifecycle | Active |
| Repair options available | No |
| Accessory component | Cable |
| Cable type | Single motor power with brake wires |
| Color cable code | RAL2003 |
| Colour outer sheath | Orange |
| Conductor material | Copper |
| Conductor surface | Tinned |
