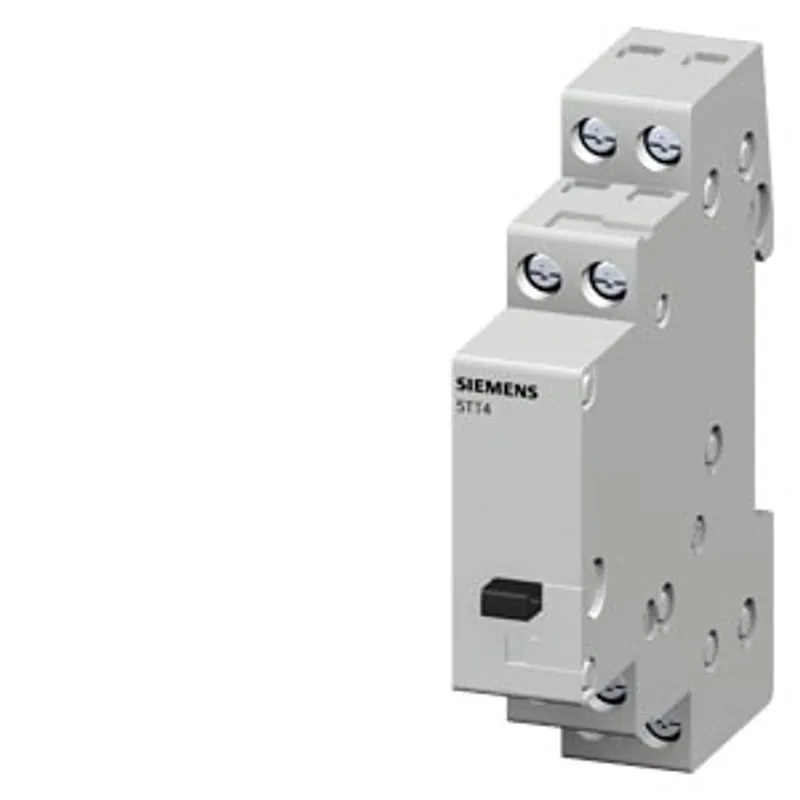

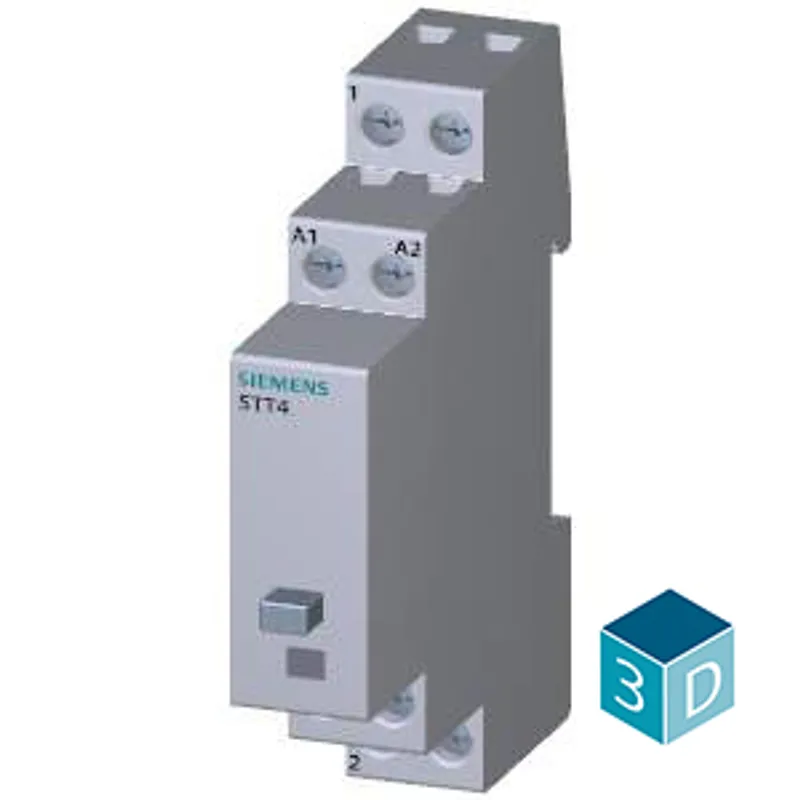

Siemens 5TT4217-3
Switching relay with 2 CO contact for 230V AC, 400V 16A 12V DC control
- MPN
- 5TT4217-3
- Category
- SENTRON 5TT4 Switching Relays
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 5TT4217-3?
switching relay with 2 CO contact for 230V AC, 400V 16A 12V DC control
Specifications
Model
| product brand name | SENTRON |
| product designation | Switching relays |
| design of the product | With 2 CO |
| design of the switching function | 2 CO |
General technical data
| operating range factor of control voltage_1 | 0.8 |
| electrical endurance (operating cycles) | 50 000 |
| galvanic isolation between magnet coil and contact | Yes |
| switching voltage of the contacts at AC minimum | 10 V |
| switching current at AC per contact minimum | 100 mA |
Voltage
| type of voltage of the operating voltage | AC |
| control voltage at DC rated value maximum | 12 V |
| surge voltage resistance rated value | 4 kV |
Supply voltage
| operating voltage — minimum | 400 V |
| operating voltage — maximum | 400 V |
| operating voltage — at AC rated value maximum | 400 V |
| type of voltage of the supply voltage | AC |
Protection class
| protection class IP | IP20, with connected conductors |
Breaking Capacity
| switching capacity apparent power — for uncompensated fluorescent lamp load | 400 V·A |
| switching capacity current at cos phi 0.6 | 16 A |
| switching capacity active power with incandescent lamp load | 1 200 W |
Dissipation
| power loss [W] — for rated value of the current at AC in hot operating state per pole | 1 W |
| power loss [W] — at 16 A per contact rated value | 1 W |
| power loss [W] — of magnet coil with pulse rated value | 1.7 W |
Main circuit
| operating frequency rated value | 50 Hz |
| operational current — rated value | 16 A |
| operational current — at cos phi 0.6 ... 1 rated value | 16 A |
Control current
| type of voltage — of control voltage_1 | DC |
| control voltage — _1 initial value | 12 V |
| control voltage — _1 full-scale value | 12 V |
| control voltage frequency — _1 initial value | 50 Hz |
| control voltage frequency — _1 full-scale value | 50 Hz |
| operating range factor of control voltage_2 | 1.1 |
| number of NC contacts | 0 |
| number of NO contacts | 0 |
| number of CO contacts | 2 |
Product function
| product function direct operation | Yes |
Inputs Outputs
| relay design | partially electronic |
Number
| number of terminals with cross-head screw | 1 |
Connections
| connectable conductor cross-section for flexible conductor with core end processing — minimum | 1 mm² |
| connectable conductor cross-section for flexible conductor with core end processing — maximum | 6 mm² |
| connectable conductor cross-section for rigid conductor — minimum | 1 mm² |
| connectable conductor cross-section for rigid conductor — maximum | 6 mm² |

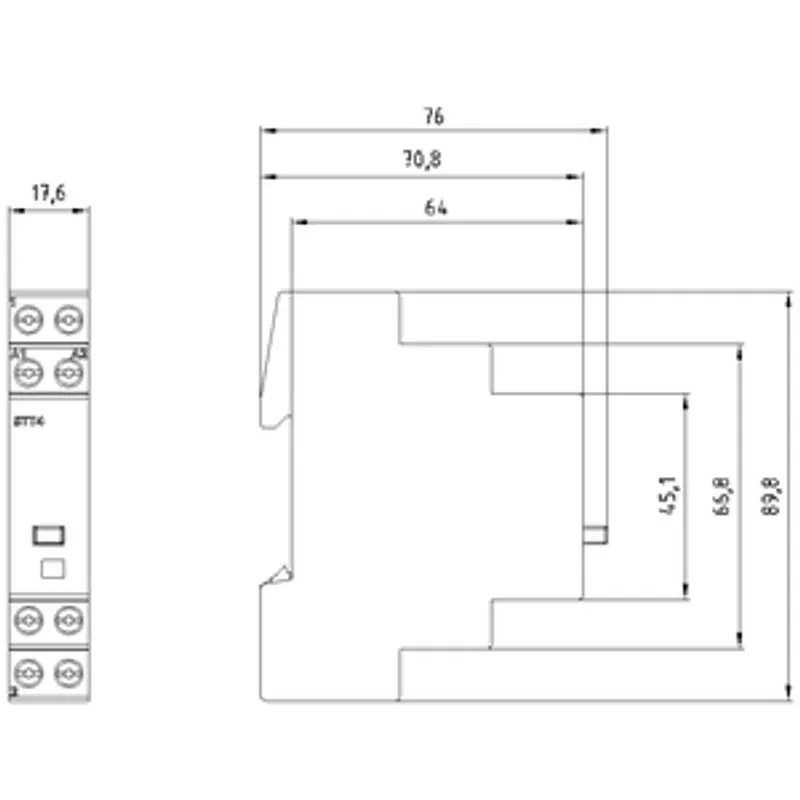

Mechanical Design
| height | 90 mm |
| width | 18 mm |
| width of opening of the contacts | 1.2 mm |
| depth | 76 mm |
| installation depth | 70 mm |
| number of modular width units | 1 |
| fastening method | DIN rail |
| mounting position | any |
| required spacing for live parts | 6 mm |
| Net Weight | 150 g |
Environmental conditions
| ambient temperature during operation — minimum | -10 °C |
| ambient temperature during operation — maximum | 40 °C |
