SENTRON 8WH2 Spring-Loaded Terminals Parts
Compare SENTRON 8WH2 Spring-Loaded Terminals
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | terminal contact spacing | operational current rated value | depth | Net Weight | height |
|---|---|---|---|---|---|
| 8WH2000-1RG08 | 8.2 mm | 10 A | 67.45 mm | 26 g | — |
| 8WH2000-1MG08 | 6.2 mm | 6.3 A | 63.38 mm | 15 g | — |

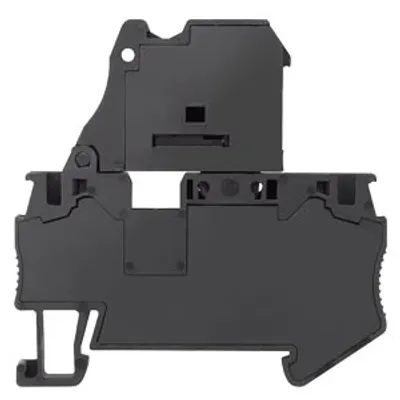

| 8WH2000-1JG68 | 6.2 mm | 6.3 A | 63.38 mm | 16 g | — |
| 8WH2000-1JG38 | 6.2 mm | 6.3 A | 63.38 mm | 15 g | — |
| 8WH2000-1HG08 | 8.2 mm | 10 A | 67.45 mm | 27 g | — |
| 8WH2000-1GG08 | 6.2 mm | 6.3 A | 63.38 mm | 15 g | — |

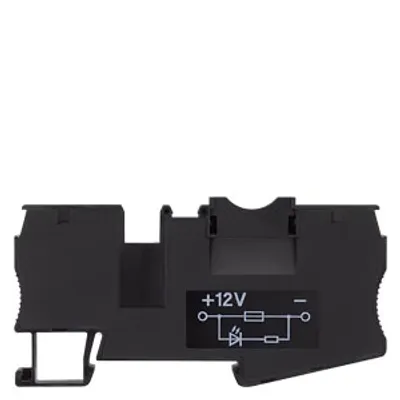

| 8WH2000-1BG38 | 8.2 mm | 30 A | 44.05 mm | 21 g | — |

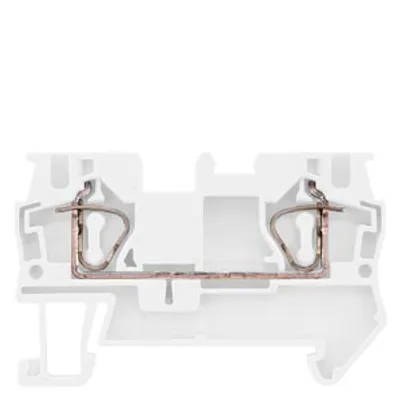

| 8WH2000-0AG05 | 6.2 mm | 32 A | 35.3 mm | 8 g | 55.93 mm |

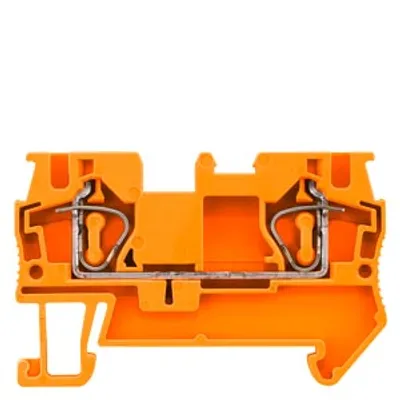

| 8WH2000-0AG04 | 6.2 mm | 32 A | 35.3 mm | 9 g | 55.93 mm |

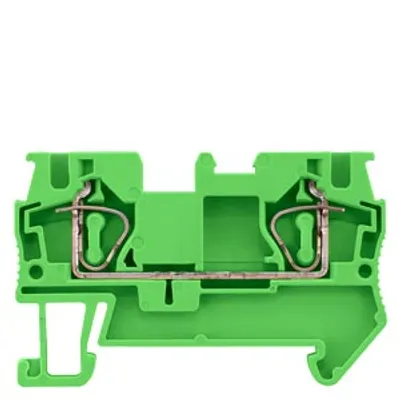

| 8WH2000-0AG03 | 6.2 mm | 32 A | 35.3 mm | 8 g | 55.93 mm |

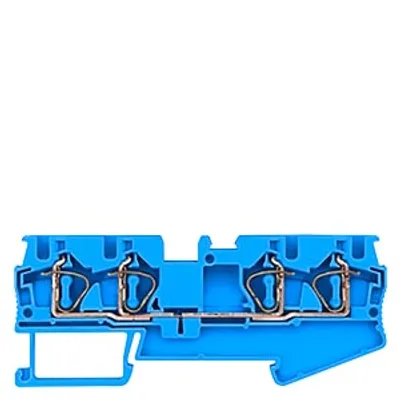

| 8WH2004-0AG01 | 6.2 mm | 32 A | 35.3 mm | 14 g | 87.13 mm |

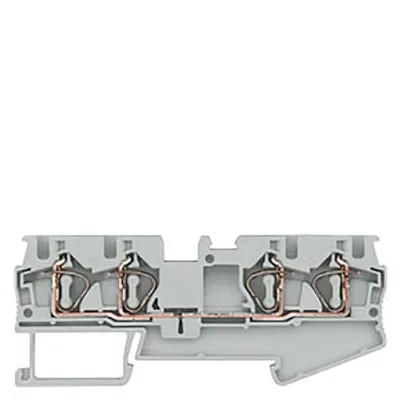

| 8WH2004-0AG00 | 6.2 mm | 32 A | 35.3 mm | 14 g | 87.13 mm |

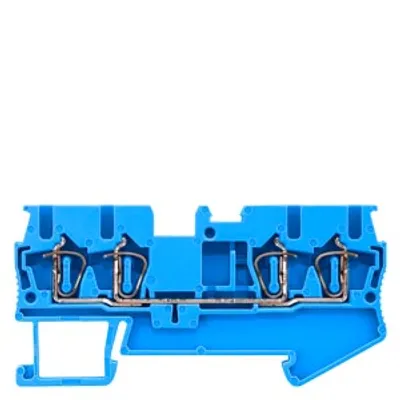

| 8WH2004-0AF01 | 5.2 mm | 24 A | 35.3 mm | 10 g | 72.23 mm |

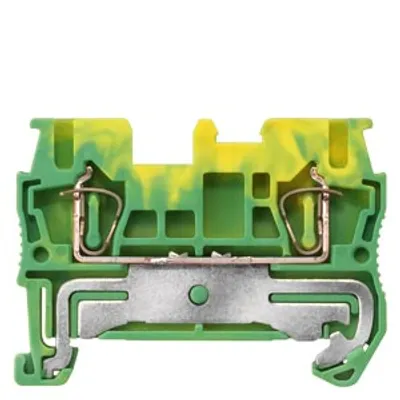

| 8WH2000-0CF07 | 5.2 mm | — | 35.25 mm | 10 g | 49.13 mm |

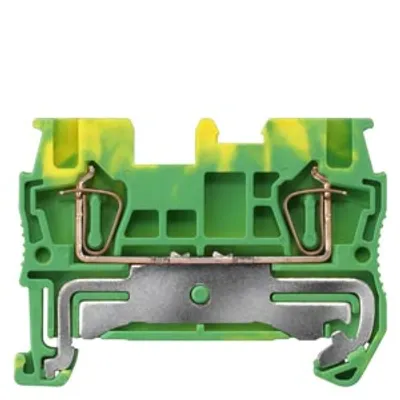

| 8WH2000-0CE07 | 4.2 mm | — | 35.25 mm | 9 g | 49.13 mm |
| 8WH2000-0AM01 | 16 mm | 125 A | 58.5 mm | 84 g | 99.9 mm |

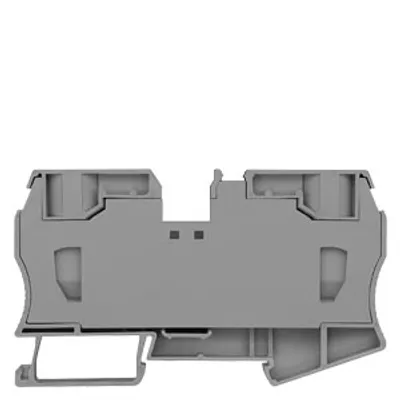

| 8WH2000-0AM00 | 16 mm | 125 A | 58.5 mm | 85 g | 99.9 mm |

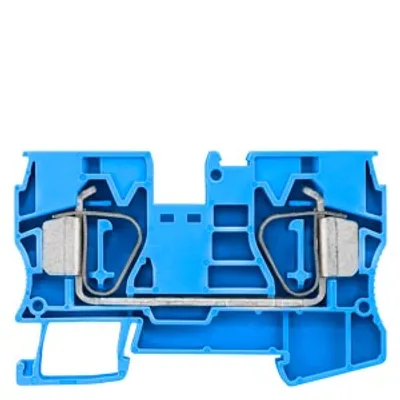

| 8WH2000-0AK01 | 12.2 mm | 76 A | 50.6 mm | 37 g | 80.2 mm |

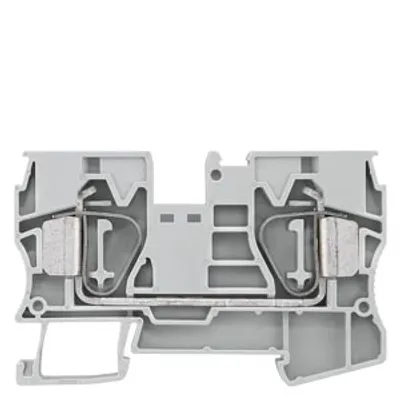

| 8WH2000-0AK00 | 12.2 mm | 76 A | 50.6 mm | 37 g | 80.2 mm |

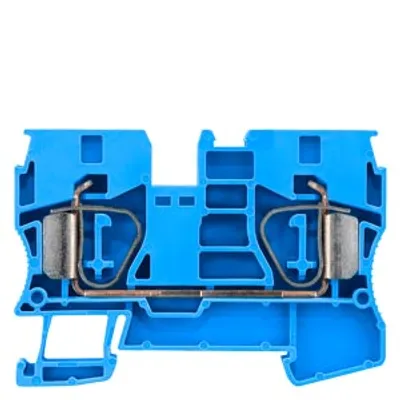

| 8WH2000-0AJ01 | 10.2 mm | 57 A | 49.6 mm | 25 g | 71.34 mm |

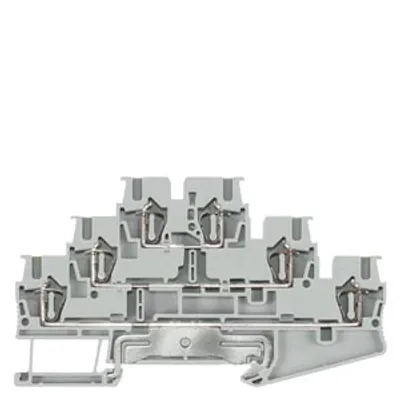

| 8WH2030-4HF00 | 5.2 mm | 22 A | 56.5 mm | 20 g | 99.48 mm |

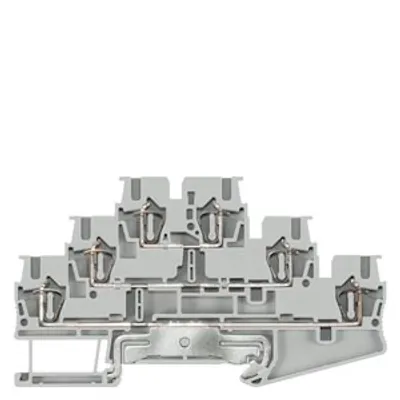

| 8WH2030-4EF00 | 5.2 mm | 22 A | 56.5 mm | 21 g | 99.48 mm |

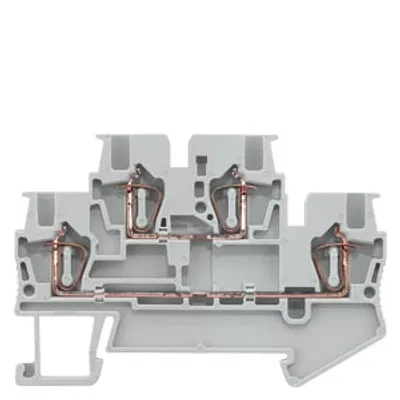

| 8WH2020-0AE00 | 4.2 mm | 17.5 A | 45.9 mm | 9 g | 67.58 mm |

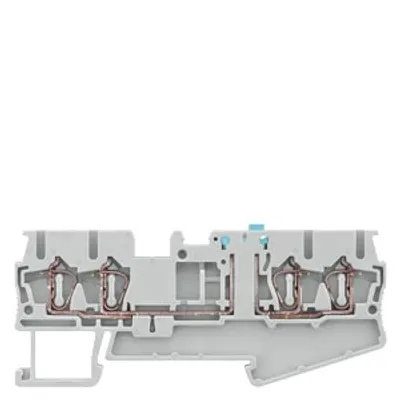

| 8WH2004-6CF00 | 5.2 mm | 20 A | 36.5 mm | 12 g | — |
Common to all listed parts
| product designation | Terminal blocks |
| combustibility class according to UL 94 | V0 |
| type of connection 2 | spring-loaded terminal |
| position of the terminal | top |
| fastening method | TH35 DIN rail |
| material of the insulating body | Other |
