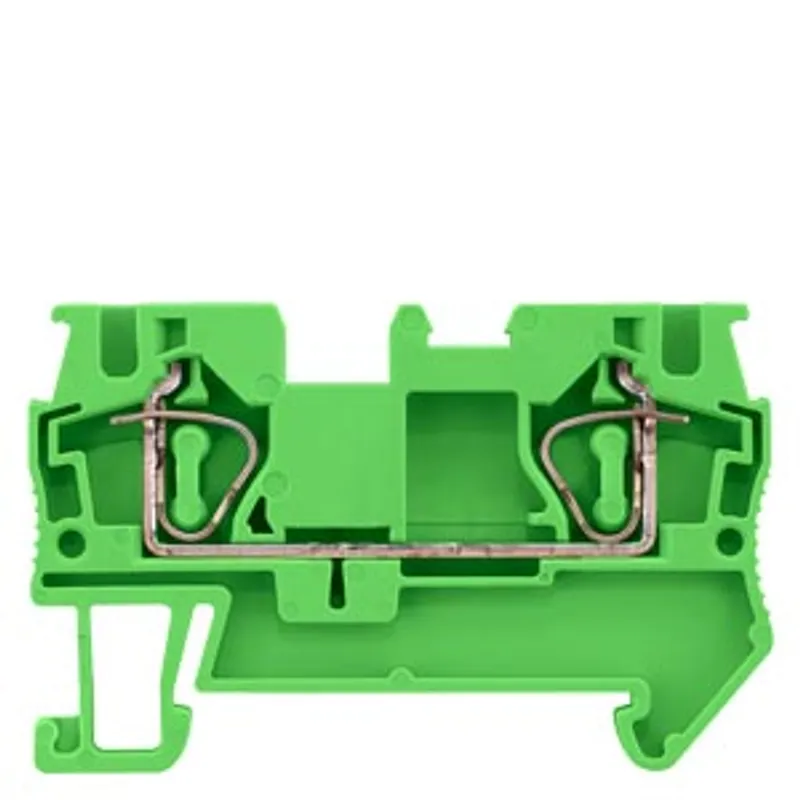

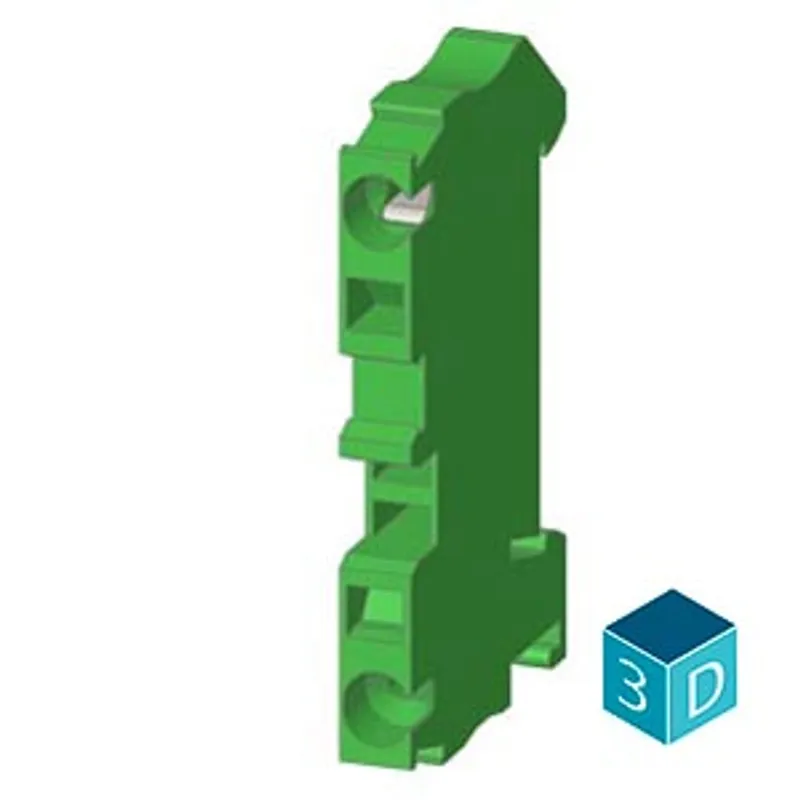

Siemens 8WH2000-0AG03
Terminal, spring-loaded terminal, through-type terminal, 4 mm², green
- MPN
- 8WH2000-0AG03
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8WH2000-0AG03?
Terminal, spring-loaded terminal, through-type terminal, 4 mm², green
Specifications
Model
| product brand name | SENTRON |
| product designation | Terminal blocks |
| design of the product | through-type terminal |
| product version | through-type terminal, for mounting on mounting rail acc. to IEC 60715 |
| design of terminal terminal levels internally linked | No |
General technical data
| terminal contact spacing | 6.2 mm |
| operating voltage rated value | 800 V |
Protection class
| combustibility class according to UL 94 | V0 |
Main circuit
| operational current rated value | 32 A |
Appearance
| color | green |
Product details
| product component required end cover plate | Yes |
Number
| number of terminal levels | 1 |
| number of terminal points per terminal level | 2 |
Connections
| connectable conductor cross-section solid — minimum | 0.08 mm² |
| connectable conductor cross-section solid — maximum | 6 mm² |
| connectable conductor cross-section finely stranded — with core end processing minimum | 0.14 mm² |
| connectable conductor cross-section finely stranded — with core end processing maximum | 4 mm² |
| connectable conductor cross-section finely stranded — without core end processing minimum | 0.08 mm² |
| connectable conductor cross-section finely stranded — without core end processing maximum | 4 mm² |
| type of connection 1 | spring-loaded terminal |
| type of connection 2 | spring-loaded terminal |
| position of the terminal | top |

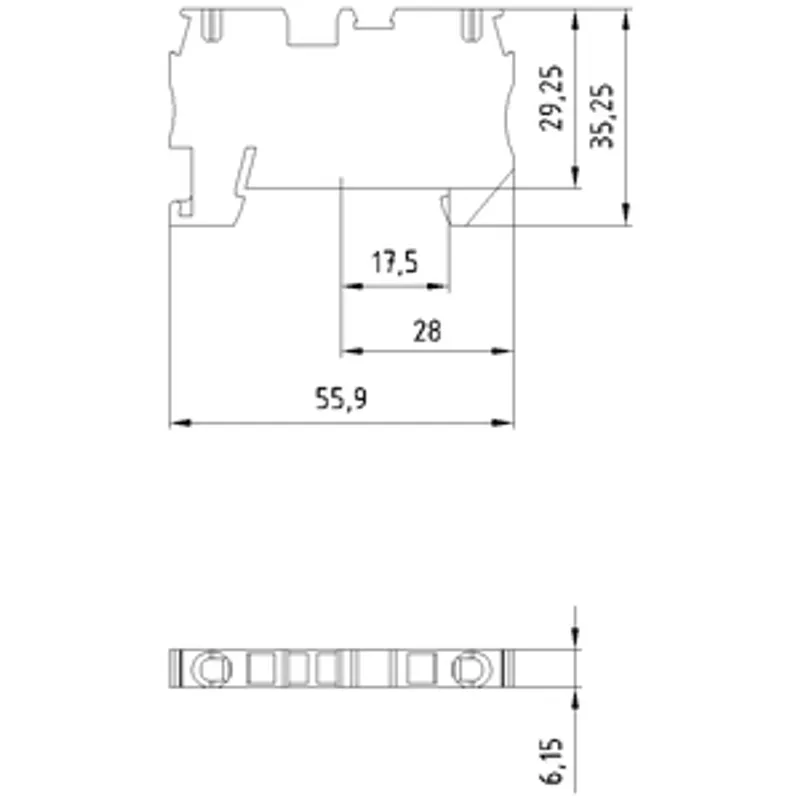

Mechanical Design
| height | 55.93 mm |
| depth | 35.3 mm |
| fastening method | TH35 DIN rail |
| Net Weight | 8 g |
| material of the insulating body | Other |
Environmental conditions
| ambient temperature during operation — minimum | -60 °C |
| ambient temperature during operation — maximum | 105 °C |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
8WH2000-0AG03: frequently asked questions
When can 8WH2000-0AG03 be shipped?
8WH2000-0AG03 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8WH2000-0AG03 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8WH2000-0AG03 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8WH2000-0AG03, subject to availability and destination.
