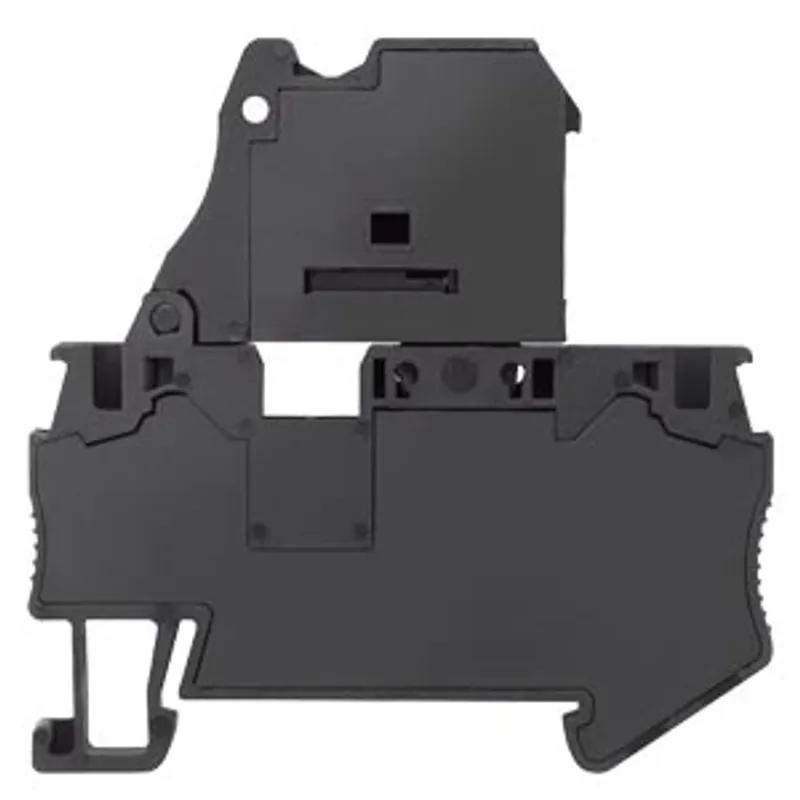

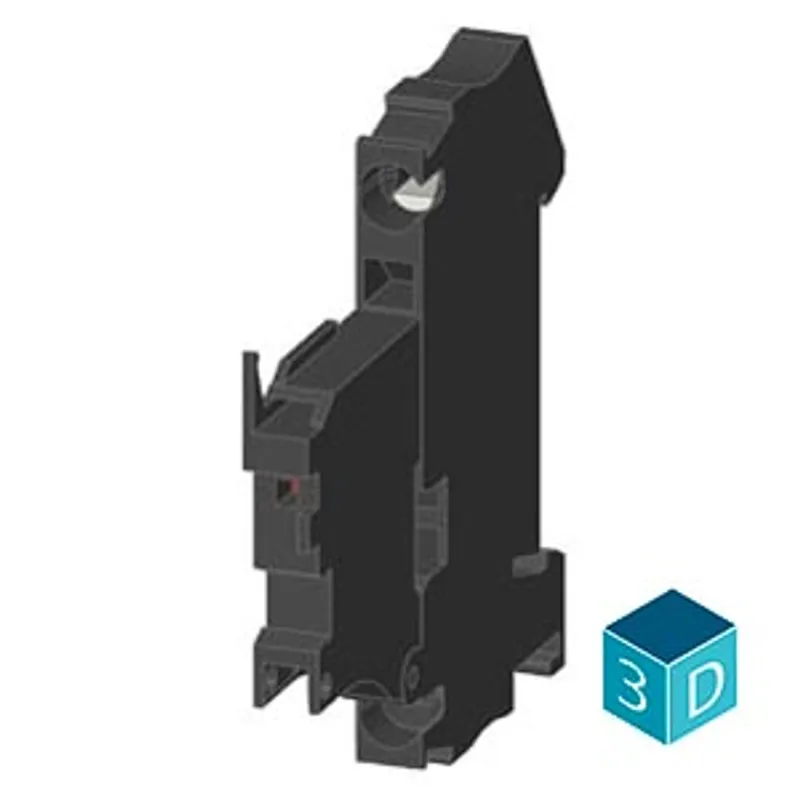

Siemens 8WH2000-1JG68
Terminal, spring-loaded terminal, fuse terminal for G fuse, with LED, 4 mm², black
- MPN
- 8WH2000-1JG68
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 8WH2000-1JG68?
Terminal, spring-loaded terminal, fuse terminal for G fuse, with LED, 4 mm², black
Specifications
Model
| product brand name | SENTRON |
| product designation | Terminal blocks |
| design of the product | fuse terminal |
| type of light source as defect indicator | LED |
| design of the fuse link | glass fuse 5x20 mm |
| design of fuse holder | swivel |
General technical data
| insulation material | PA |
| terminal contact spacing | 6.2 mm |
Supply voltage
| operating voltage rated value | 250 V |
| type of voltage for supply of the defect indicator | others |
Protection class
| combustibility class according to UL 94 | V0 |
Main circuit
| operational current rated value | 6.3 A |
Appearance
| color | black |
Product details
| product component required end cover plate | No |
Number
| number of terminal levels | 1 |
Connections
| connectable conductor cross-section solid — minimum | 0.08 mm² |
| connectable conductor cross-section solid — maximum | 0.08 mm² |
| connectable conductor cross-section stranded — maximum | 4 mm² |
| connectable conductor cross-section finely stranded — with core end processing minimum | 4 mm² |
| connectable conductor cross-section finely stranded — with core end processing maximum | 4 mm² |
| connectable conductor cross-section finely stranded — without core end processing minimum | 0.08 mm² |
| connectable conductor cross-section finely stranded — without core end processing maximum | 4 mm² |
| type of connection 1 | spring-loaded terminals |
| type of connection 2 | spring-loaded terminal |
| position of the terminal | top |

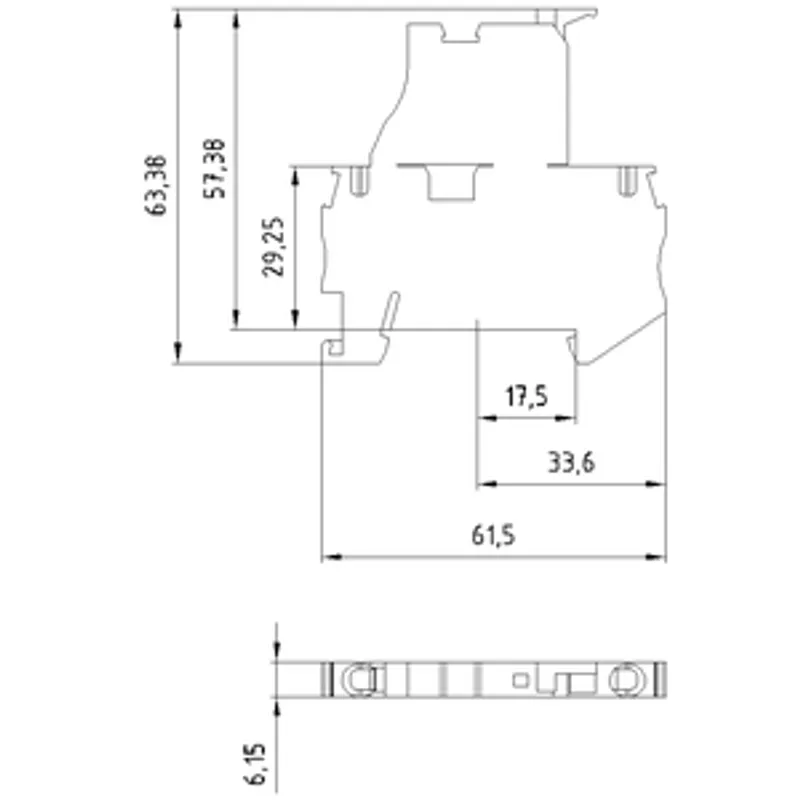

Mechanical Design
| height with lowest-profile installation | 61.53 mm |
| depth | 63.38 mm |
| length | 61.5 mm |
| fastening method | TH35 DIN rail |
| Net Weight | 16 g |
| material of the insulating body | Other |
Environmental conditions
| ambient temperature during operation — minimum | 105 °C |
| ambient temperature during operation — maximum | 105 °C |
